1.3 2.5-inch Hard Disk Drive
A compact, high-capacity HDD with a height of 9.5mm. Contains a 2.5-inch magnetic disk
and magnetic heads.
Figure 1-4 shows a view of the 2.5-inch HDD and Tables 1-1 and 1-2 list the dimensions and
specifications.

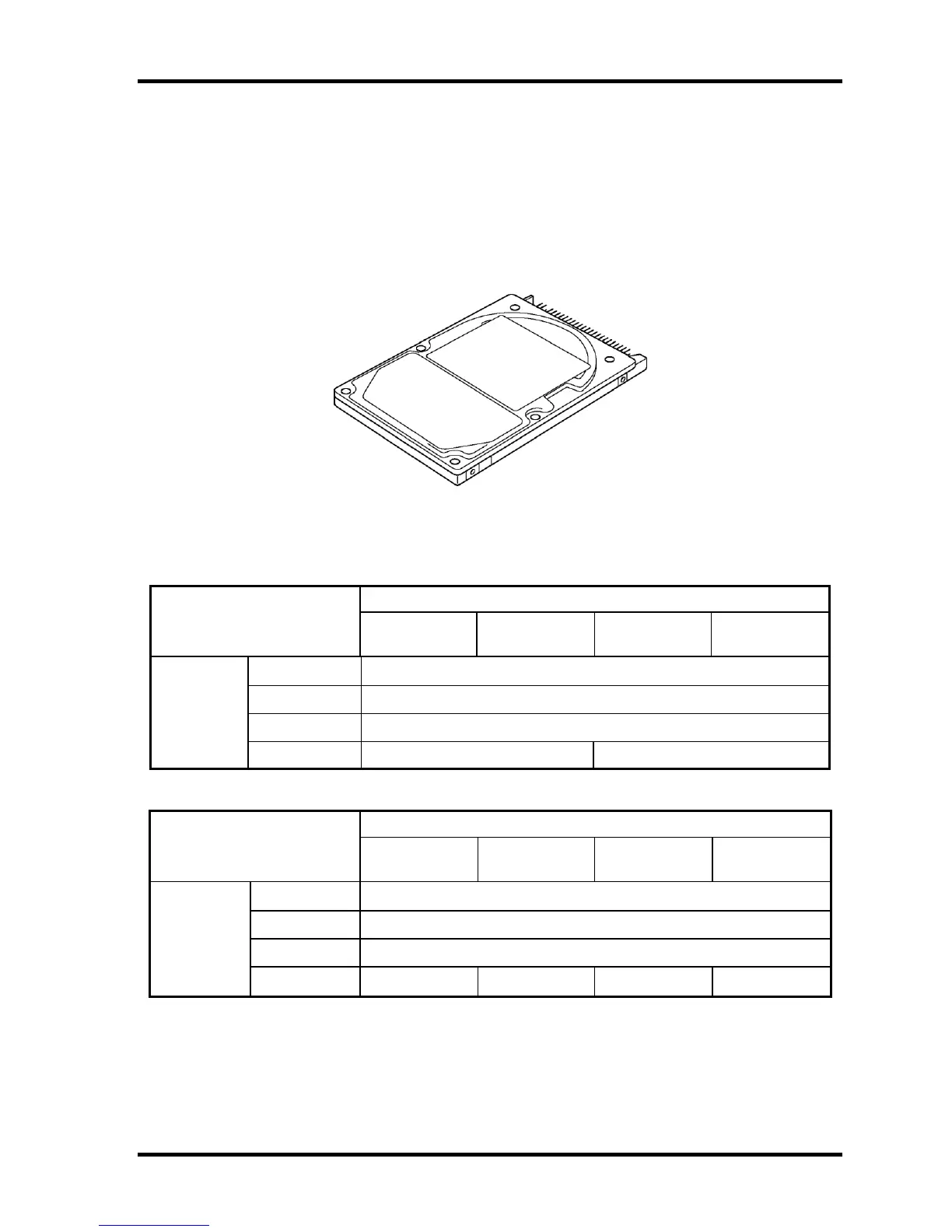

Figure 1-4 2.5-inch HDD
Table 1-1 2.5-inch HDD dimensions (1/2)
Standard value
Parameter
TOSHIBA
HDD2190BZK01
TOSHIBA
HDD2189BZK01
TOSHIBA
HDD2188BZK01
TOSHIBA
HDD2A02BZK01
Width (mm) 69.85
Height (mm) 9.5
Depth (mm) 100
Outline
dimensions
Weight (g) 95 99 (MAX)
Standard value
Parameter
TOSHIBA
HDD2193VZK01
TOSHIBA
HDD2194VZK01
TOSHIBA
HDD2191VZK01
TOSHIBA
HDD2D08BZK01
Width (mm) 69.85
Height (mm) 9.5
Depth (mm) 100
Outline
dimensions
Weight (g)
98 (MAX) 102 (MAX) 95 102 (MAX)
