4.13 Fan 4 Replacement Procedures
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] 4-37
4
4.13 Fan
Removing the fan
The following describes the procedure for removing the fan (See Figure 4-26).
1. Disconnect the fan cable from the CN8770 on the system board.
2. Remove the following screws and fan.
? M2.5?6S TAPPING x2

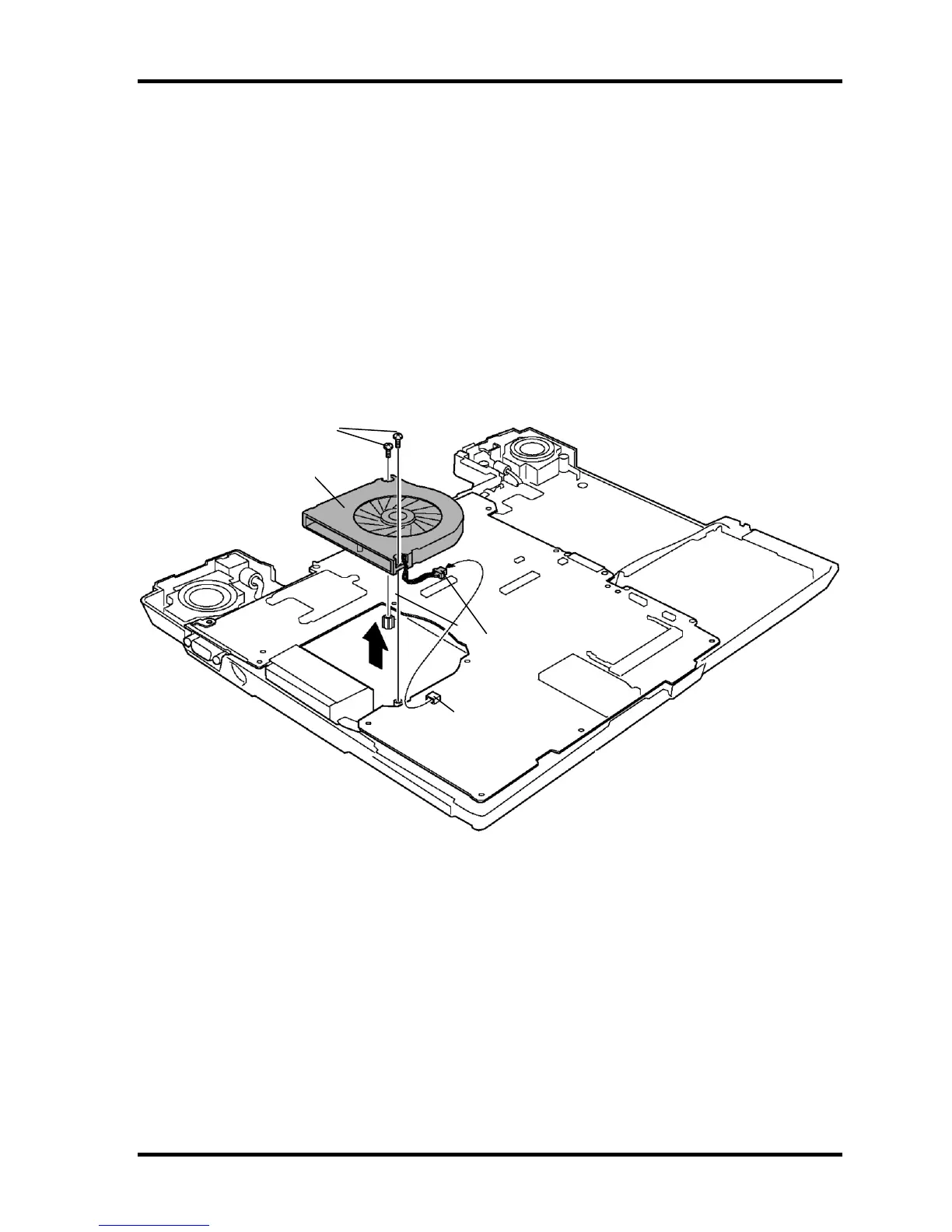

Figure 4-26 Removing the fan
Installing the fan
The following describes the procedure for installing the fan (See Figure 4-26).
1. Install the fan and secure it with the following screws.
? M2.5?6S TAPPING x2
2. Connect the fan cable to the connector CN8770 on the system board.
M2.5x6S TAPPING
Fan cable
CN8770
Fan
