4 Replacement Procedures 4.22 Hinge
4-66 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4.22.2 Hinge on the display cover
Removing the Hinge on the display cover
The following describes the procedure for removing hinge on the display cover (See Figure
4-50).
1. Remove the following screws and right and left hinges on the display cover.
? M2.5?6S TAPPING x4

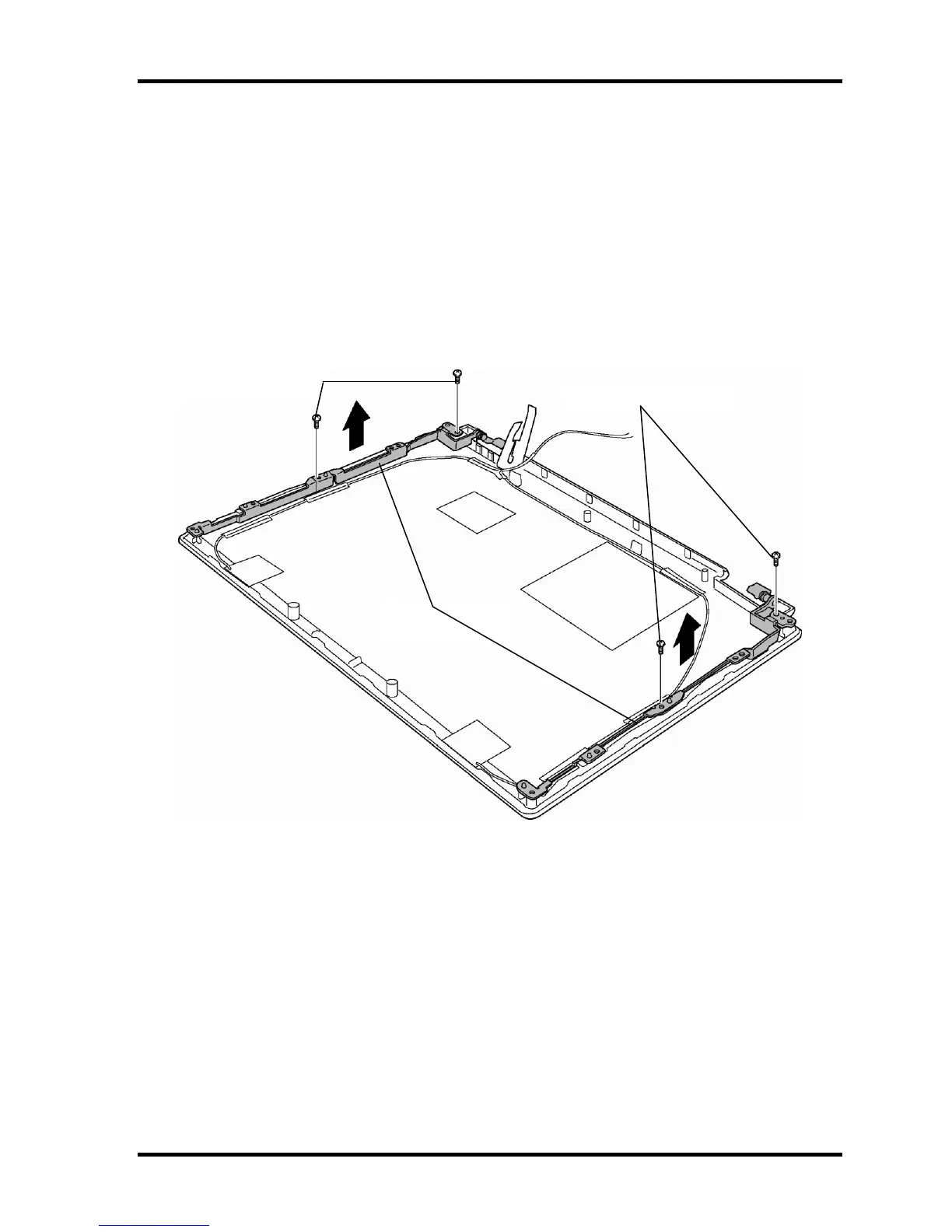

Figure 4-50 Removing the hinges on the middle frame
Installing the Hinge on the display cover
The following describes the procedure for installing hinge on the display cover (See Figure
4-50).
1. Install the right and left hinges on the display cover according to the guides and
secure them with the following screws.
? M2.5?6S TAPPING x4
M2.5?6S TAPPING
Hinges
M2.5?6S TAPPING
