4 Replacement Procedures 4.17 CPU heat sink/CPU
4-46 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4.17 CPU heat sink/CPU
Removing the CPU heat sink/CPU
The following describes the procedure for removing the CPU heat sink and CPU (See Figure
4-34 and 4-35).
1. After removing the following screws, remove the CPU heat sink holder and CPU
heat sink.
? M2?4B S-THIN HEAD x3

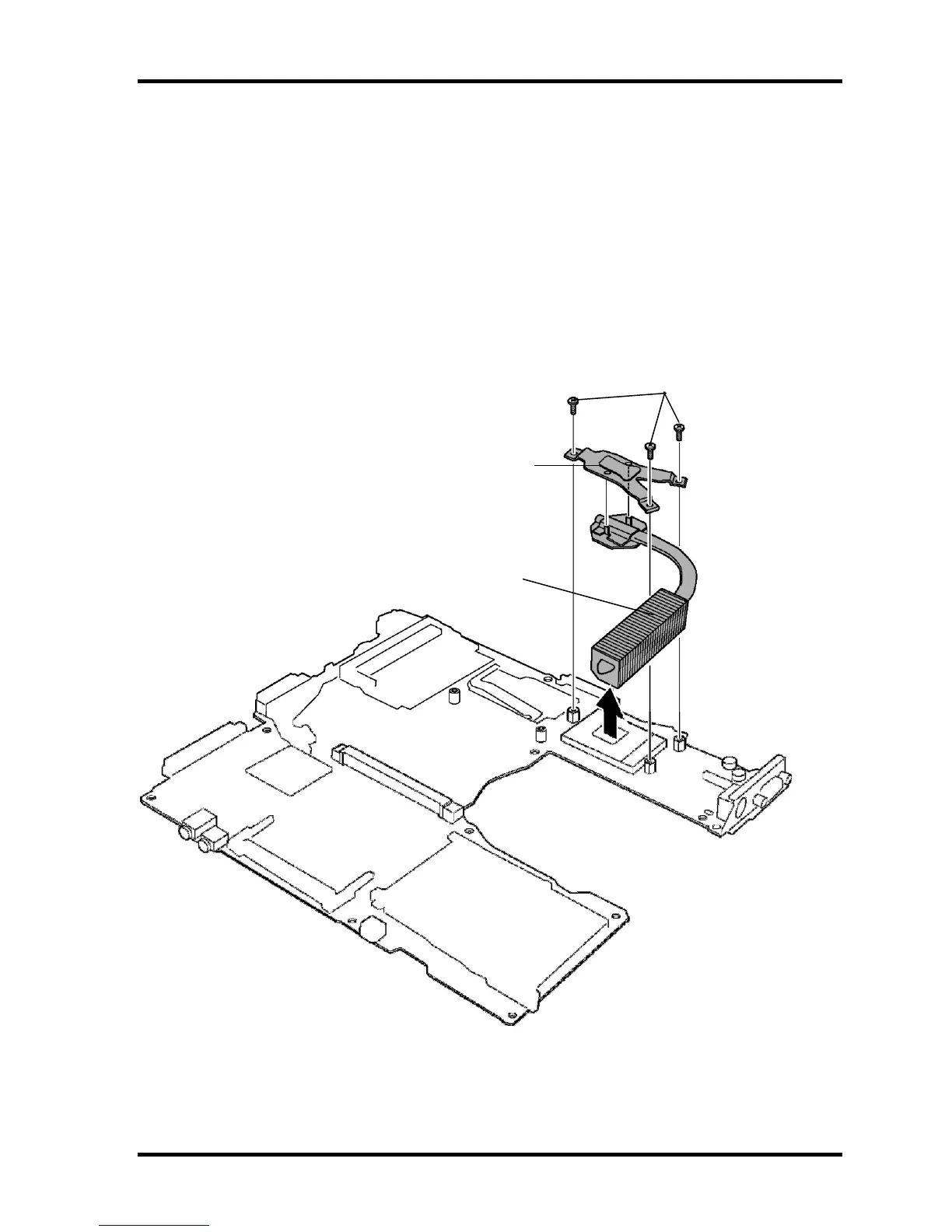

Figure 4-34 Removing the CPU heat sink
M2x4B S-THIN HEAD
CPU Heat sink holder
CPU Heat sink
