4 Replacement Procedures 4.16 GPU heat sink/VG board
4-44 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4.16 GPU heat sink/VG board
Removing the GPU heat sink/VG board
The following describes the procedure for removing the GPU heat sink and VG board (See
Figure 4-32 and 4-33).
1. After removing the following screws, remove the GPU heat sink.
? M2?4B S-THIN HEAD x3

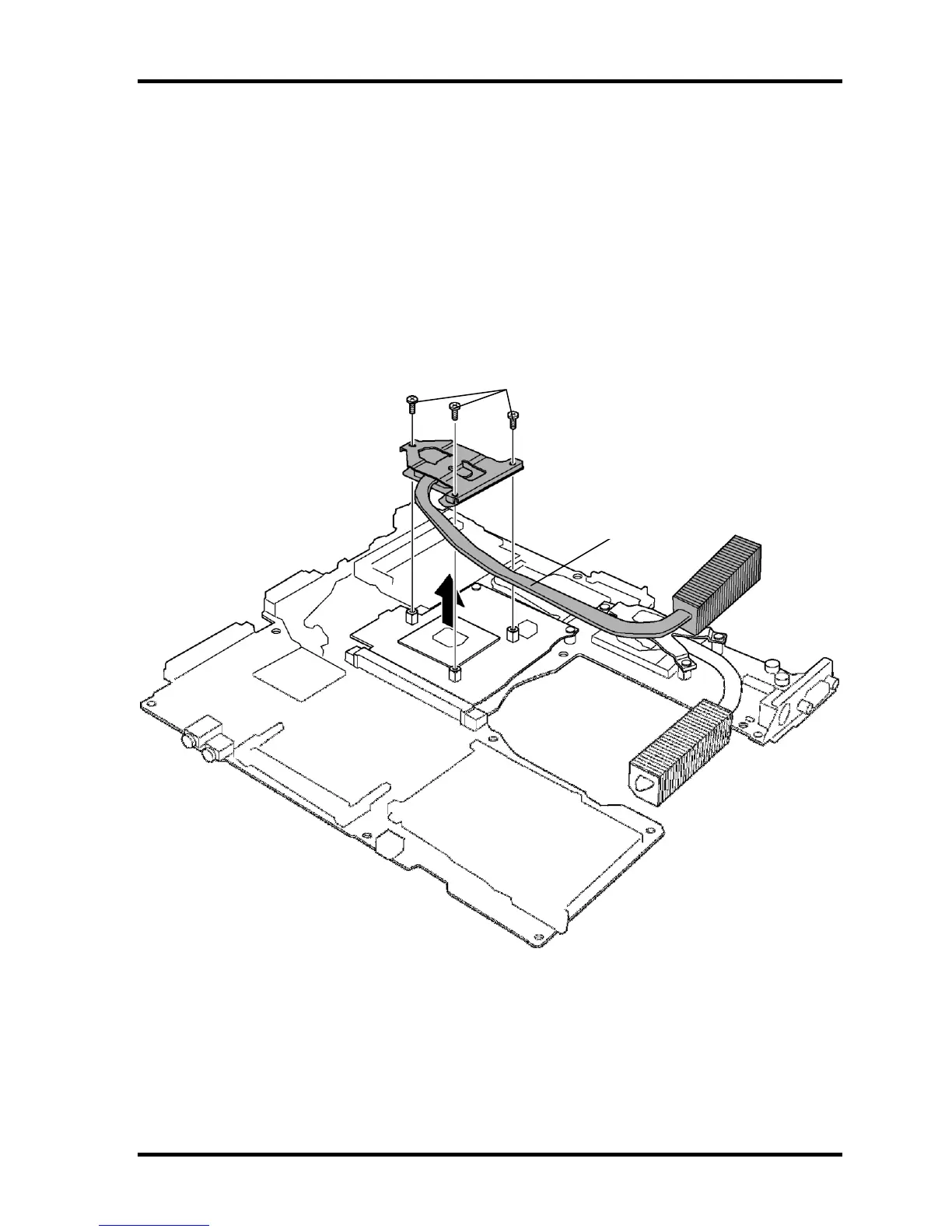

Figure 4-32 Removing the GPU heat sink
M2x4B S-THIN HEAD
GPU Heat sink
