4.8 Display assembly
Removing the display assembly
The following describes the procedure for removing the display assembly (See Figure 4-13 to
4-19).
1. Close the display and turn the computer upside down.
2. Remove the following screws from the bottom of the computer.
? M2.5?12B FLAT BIND screw x11 (“12” in the figure)
? M2.5?6B FLAT BIND screw x7 (“6” in the figure)
? M2.5?4B FLAT BIND screw x4 (“4” in the figure)

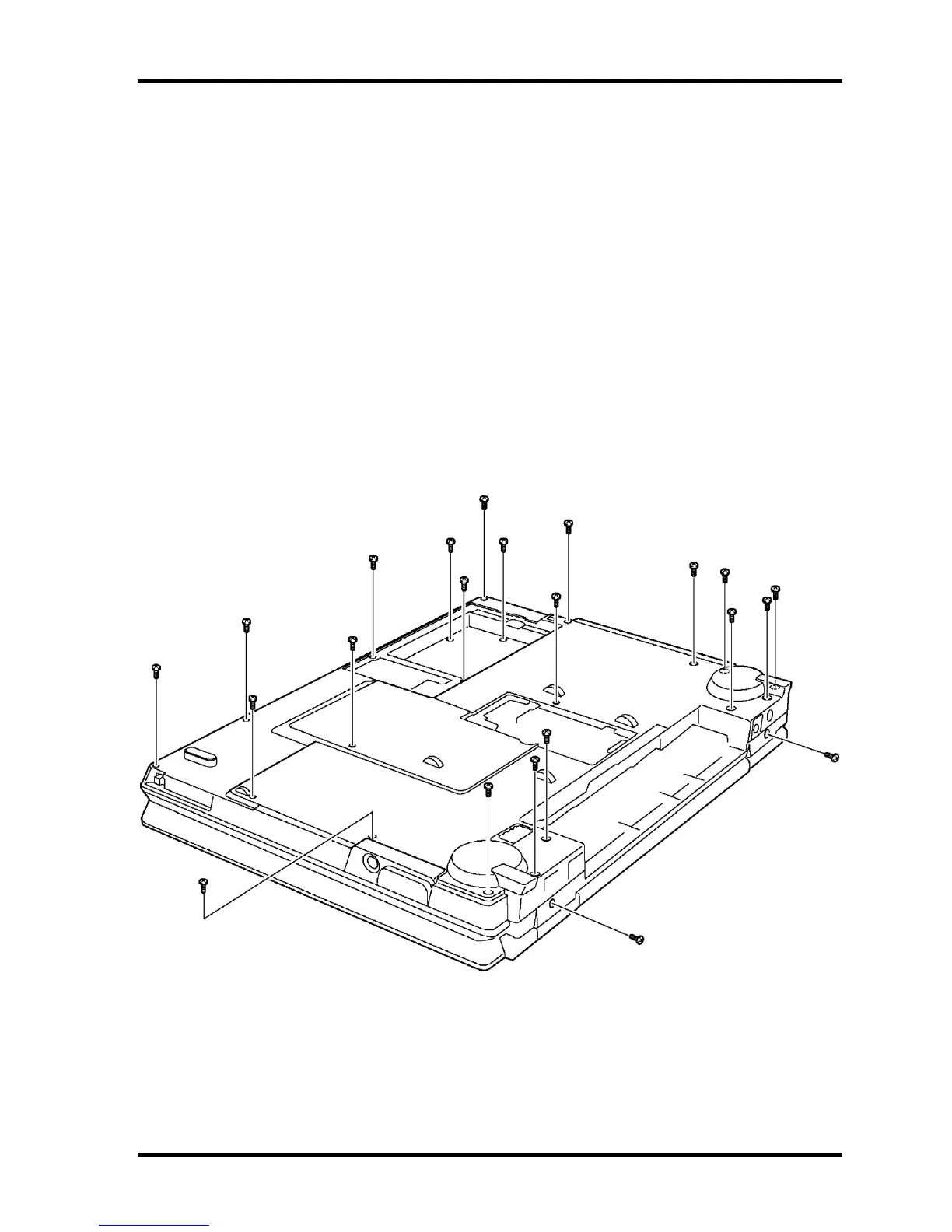

Figure 4-13 Removing the screws (bottom)
