4 Replacement Procedures 4.19 Touch pad/Volume knob
4-54 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
4.19.2 Volume knob
Removing the volume knob
The following describes the procedure for removing the volume knob (See Figure 4-41).
1. Remove the following screws and the volume cover.
? M2.5?3B U-THIN HEAD x2
2. Peel off the insulator and take out the volume board cable from the slot.
3. Remove the volume board.
4. Release the latches of volume knob, pushing the latch inside. Push down the volume
knob to remove.

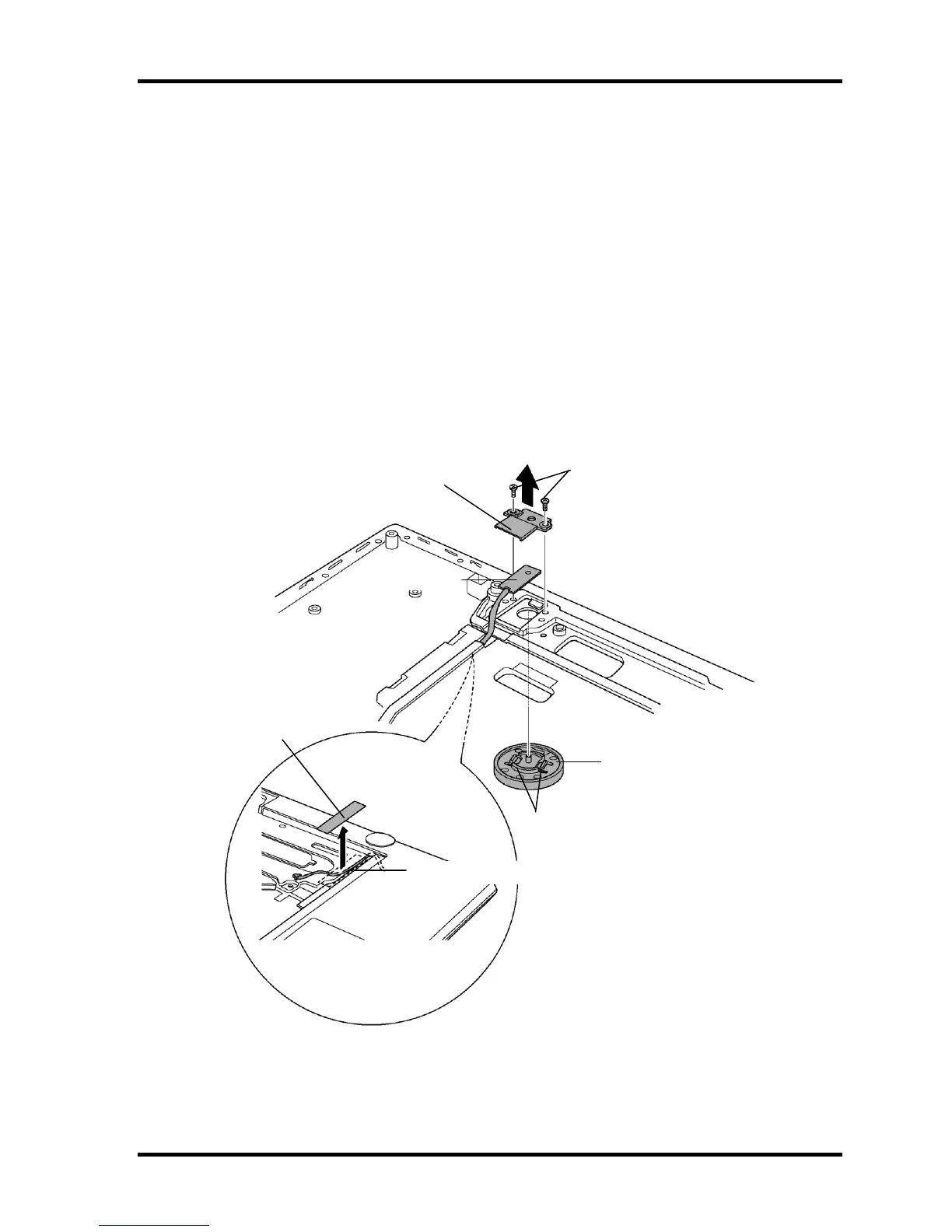

Figure 4-41 Removing the volume knob
Volume knob
Volume cover
M2.5?3B U-THIN HEAD
Volume board
Latches
Insulator
Volume board cable
