Appendix B Board Layout Appendices
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] B-5
B.3 UA Board (FUTUA*)
(front)
(back)

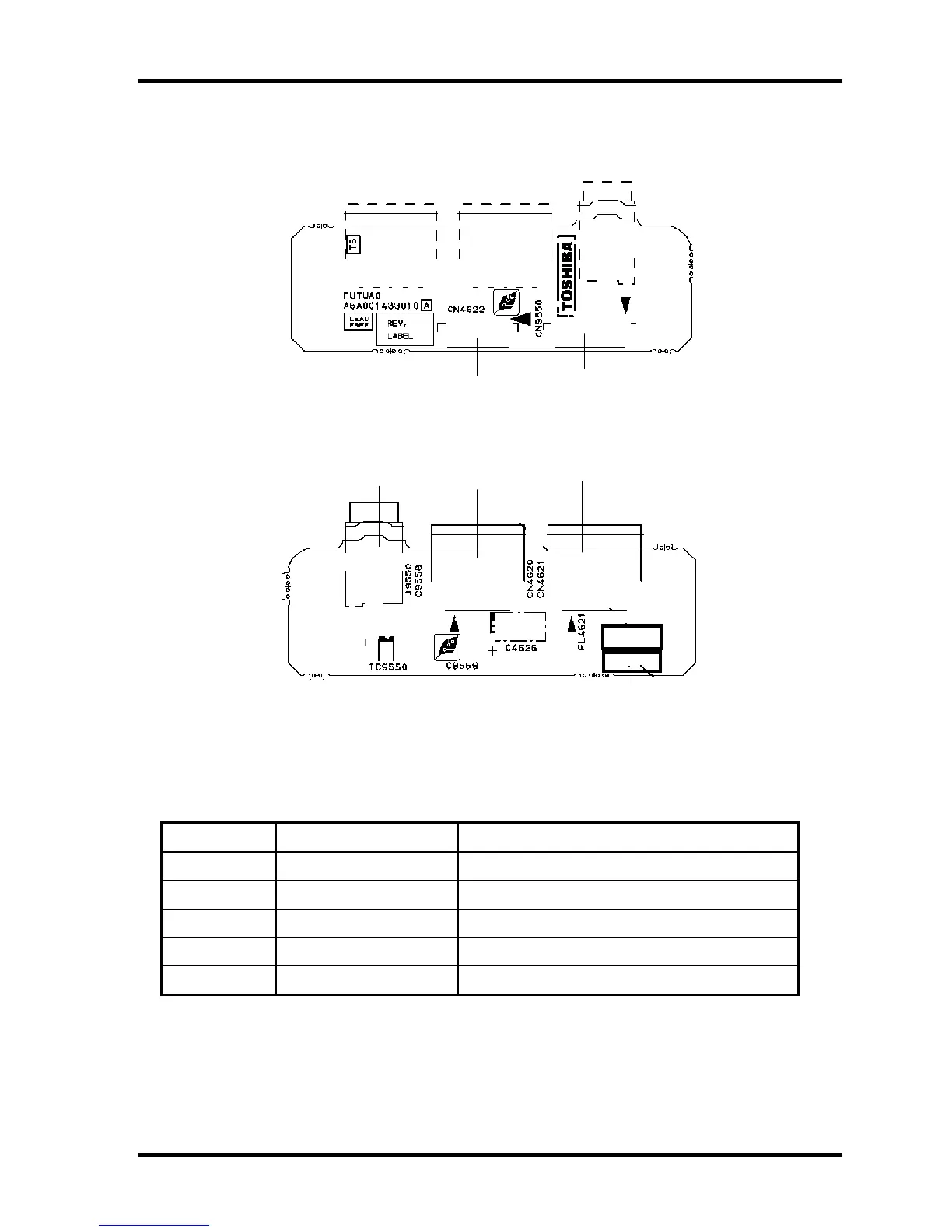

Figure B-3 UA board layout
Table B-3 UA board connectors
Mark Number Name
(A) CN4622 System board I/F connector
(B) CN9550 TV tuner I/F connector
(C) J9550 TV-IN connector
(D) CN4620 USB Port0 connector
(E) CN4621 USB Port4 connector
(A)
(B)
(C)
(D)
(E)
