4.21 Wireless LAN antenna
Removing the wireless LAN antenna
The following describes the procedure for removing the wireless LAN antenna (See Figure
4-48).
1. Peel off six acetate tapes and the wireless LAN antennas from the display cover.

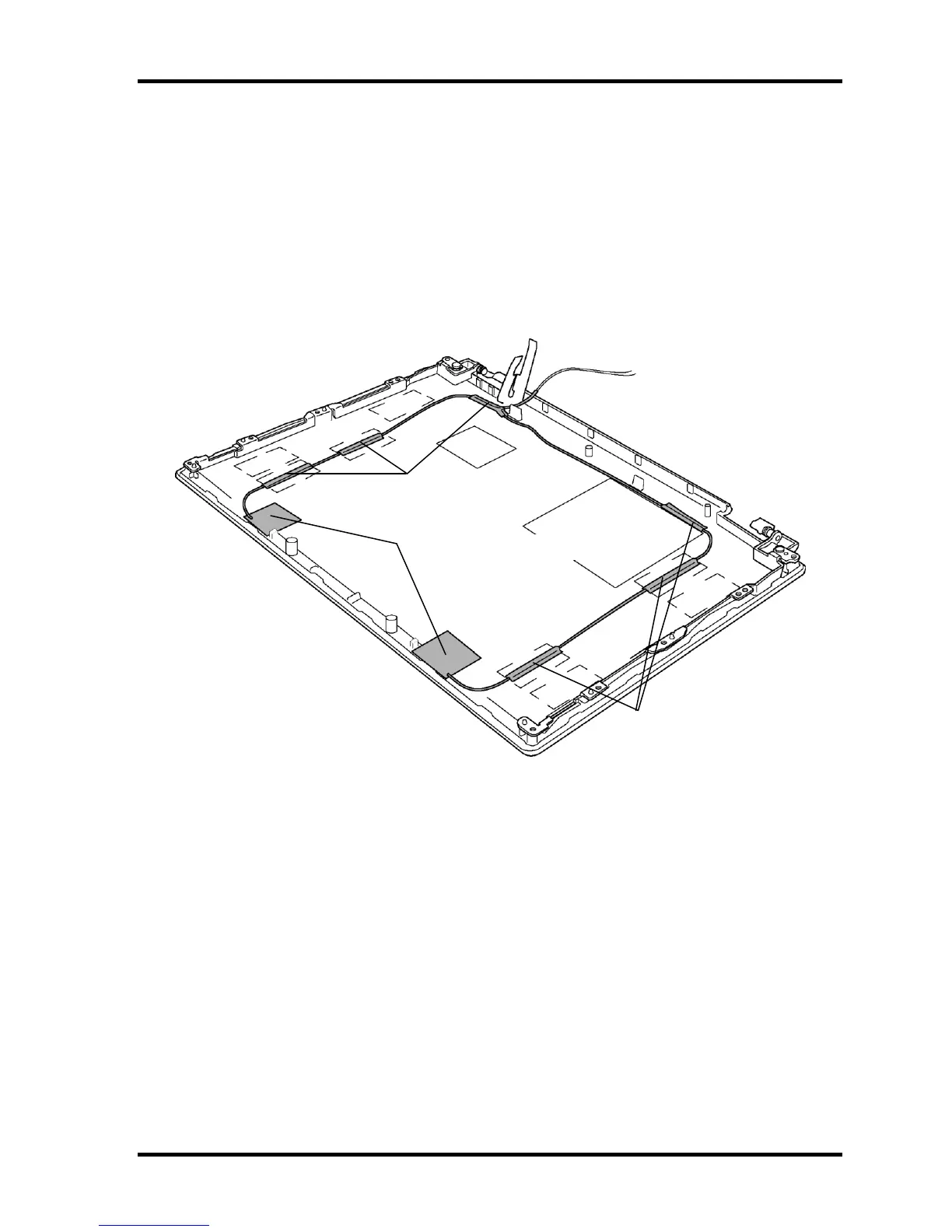

Figure 4-48 Removing the wireless LAN antennas
Installing the wireless LAN antenna
The following describes the procedure for installing the wireless LAN antenna (See Figure
4-48).
1. Stick the wireless LAN antennas in position on the display cover.
2. Arrange the wireless LAN antenna cables according to the inside of the guideline
the on the display cover and fix them with six acetate tapes.
Acetate tape
Wireless LAN antenna
Acetate tape
