1.6 TFT Color Display
The TFT color display is 15.4 inch and consists of LCD module and FL inverter boards.
1.6.1 LCD Module
The LCD module used for the TFT color display uses one backlight or two backlights as the
light source and can display a maximum of 262,144 colors with 1,280 x 800 resolution.
Figure 1-8 shows a view of the LCD module and Table 1-7 lists the specifications.

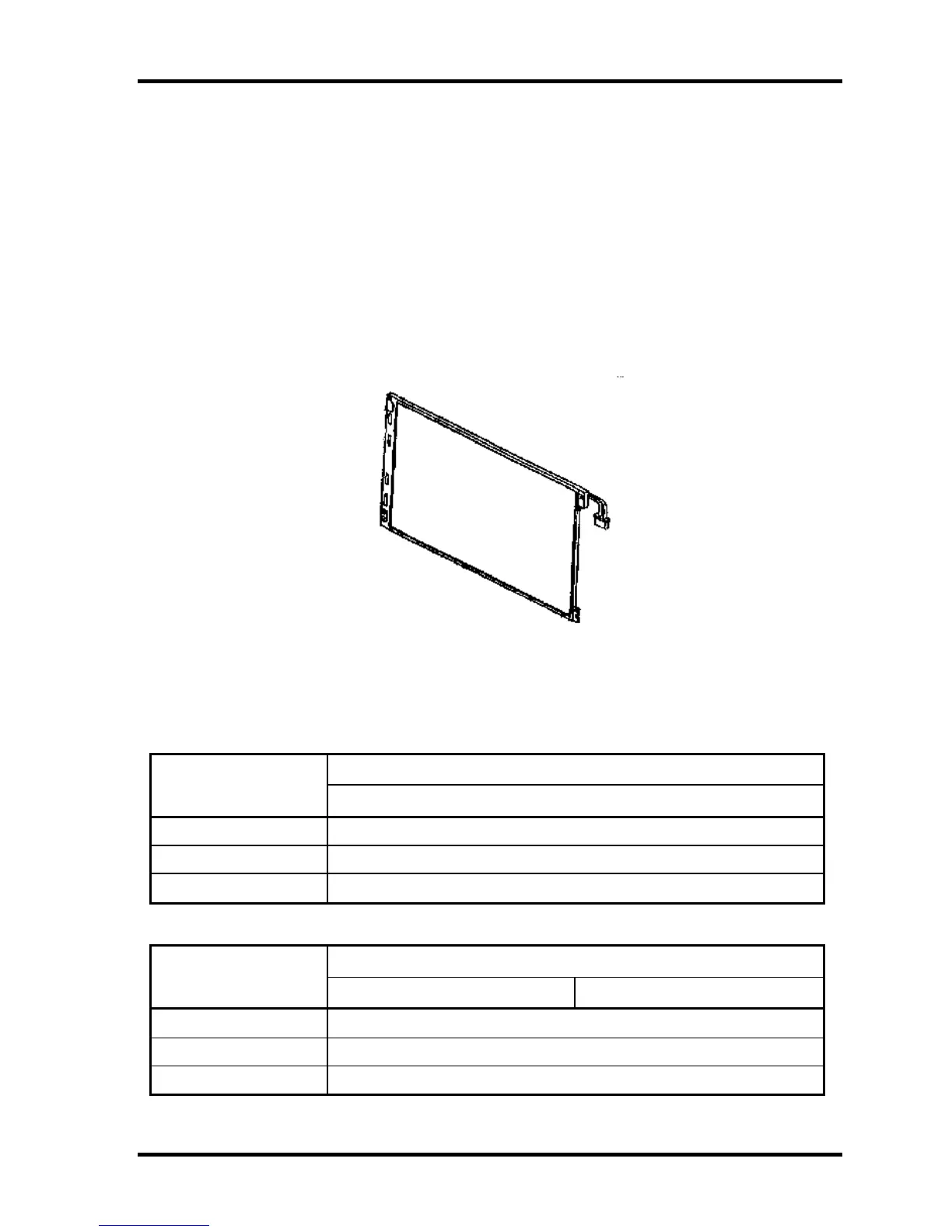

Figure 1-8 LCD module
Table 1-7 LCD module specifications
Specifications (Two lamps)
Item
Samsung (G33C0002A110)
Number of Dots 1,280(W) x 800(H)
Dot spacing (mm) 0.25875(H) x 0.25875(V)
Display range (mm) 331.2(H) x 207.0(V)
Specifications (One lamp)
Item
Samsung (G33C0002S110) Chimei (G33C0002T110)
Number of Dots 1,280(W) x 800(H)
Dot spacing (mm) 0.2588(H) x 0.2588(V)
Display range (mm) 331.2(H) x 207.0(V)
