4.18 USB board/Speaker 4 Replacement Procedures
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] 4-49
4.18 USB board/Speaker
Removing the USB board/Speaker
The following describes the procedure for removing the USB board and Speaker (See Figure
4-37 to 4-39).
1. Remove the following screw and the USB board.
? M2.5?6S TAPPING x1
2. Remove the following screw and the Cable holder (L).
? M2.5?6S TAPPING x1
3. Remove the Speaker (L) from the slot of the base assembly

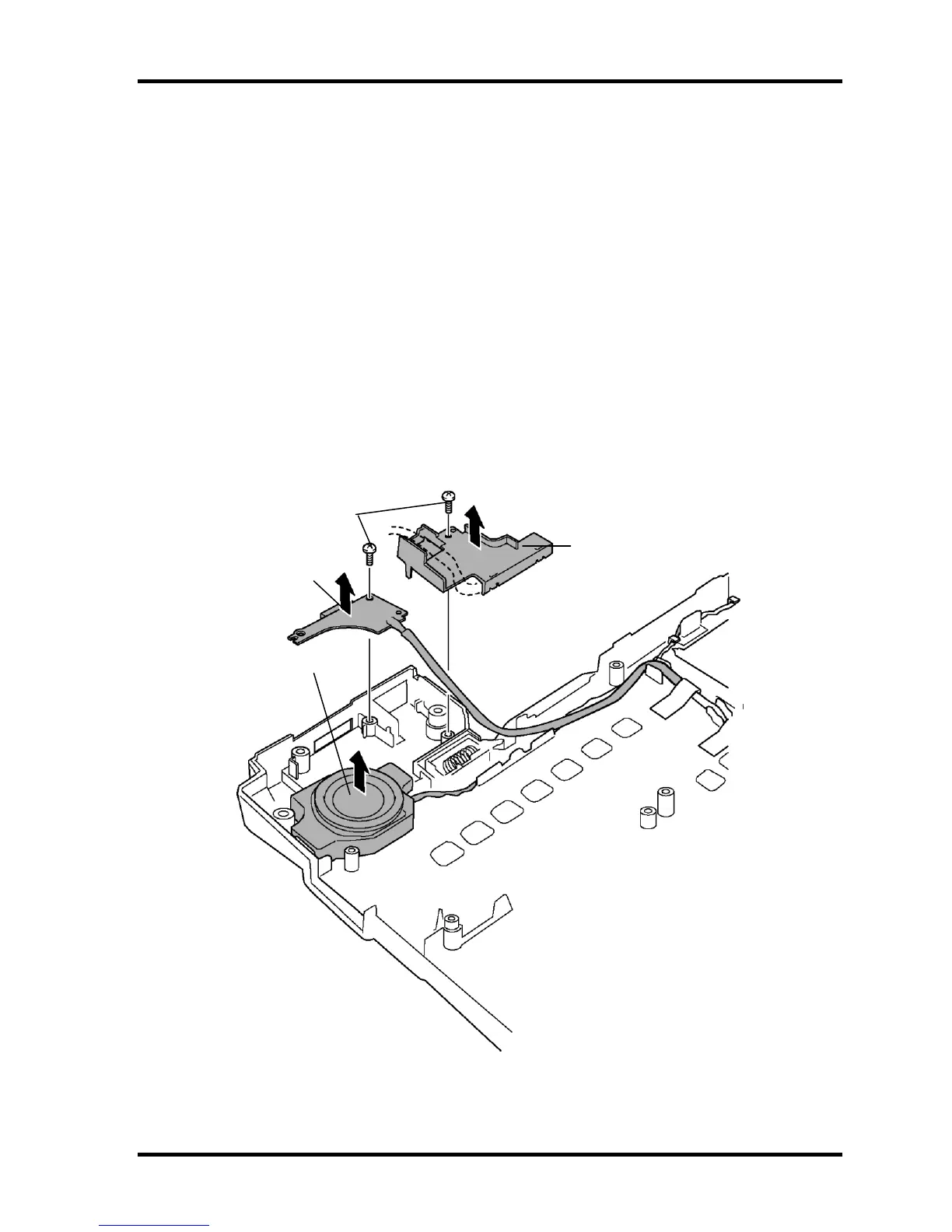

Figure 4-37 Removing the USB board/Speaker (L)
M2.5?6S TAPPING
Cable holder (L)
USB board
Speaker (L)
