4.11 UA board 4 Replacement Procedures
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] 4-33
4.11 UA board
Removing the UA board
The following describes the procedure for removing the UA board (See Figure 4-22).
1. Take out the UA board cable from the guide and disconnect it from the connector
CN4622 on the UA board.
2. Take out the TV tuner cable from the guide and disconnect it from the connector
CN9550 on the UA board.
3. Remove the following screws and UA board from the slot.
? M2.5?6S TAPPING x 2

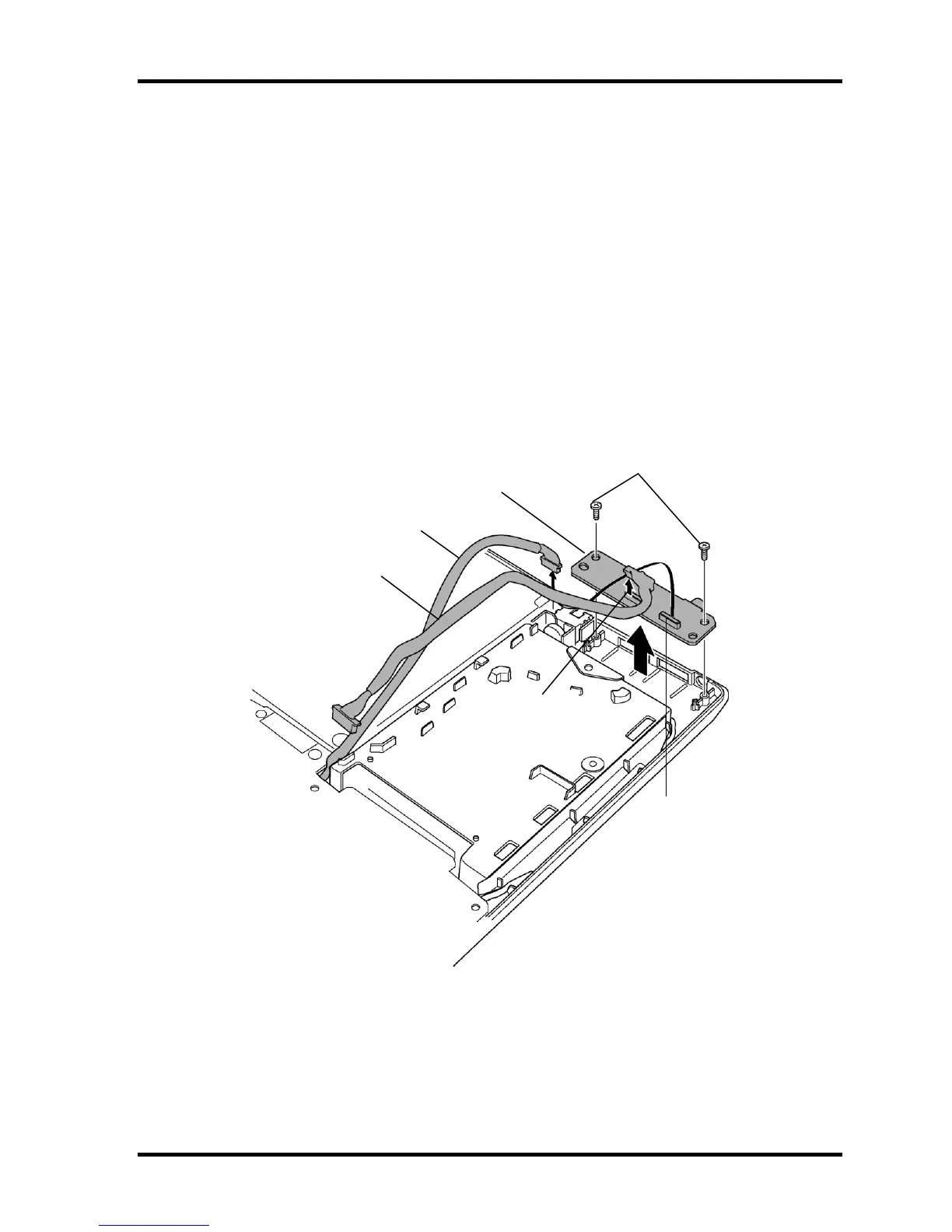

Figure 4-22 Removing the UA board
M2.5?6S TAPPING
TV tuner cable
UA board cable
CN9550
CN4622
UA board
To Next Page
