4 Replacement Procedures 4.11 UA board
4-34 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
Installing the UA board
The following describes the procedure for installing the UA board (See Figure 4-22 and
4-23).
1. Install UA board into the slot and secure it with the following screws.
? M2.5?6S TAPPING x2
2. Pass the UA board cable through the guides and connect it to the connector CN4622
on the UA board.
3. Pass the TV tuner cable through the guides and connect it to the connector CN9550
on the UA board.

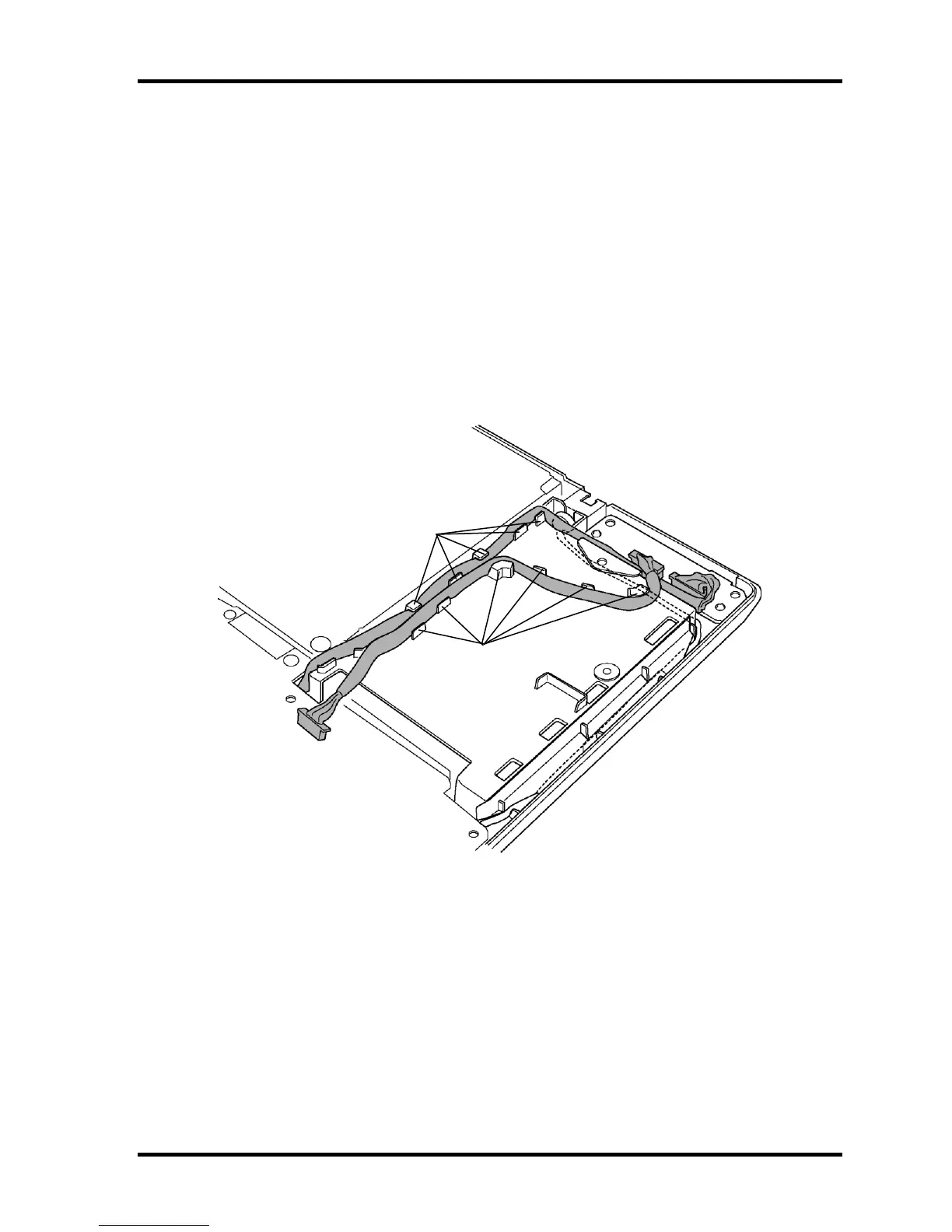

Figure 4-23 Passing the cable
Guides
Guides
