4 Replacement Procedures 4.8 Display assembly
4-24 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
3. Disconnect the speaker cable from CN6170 and the USB board cable from CN4611
on the system board.

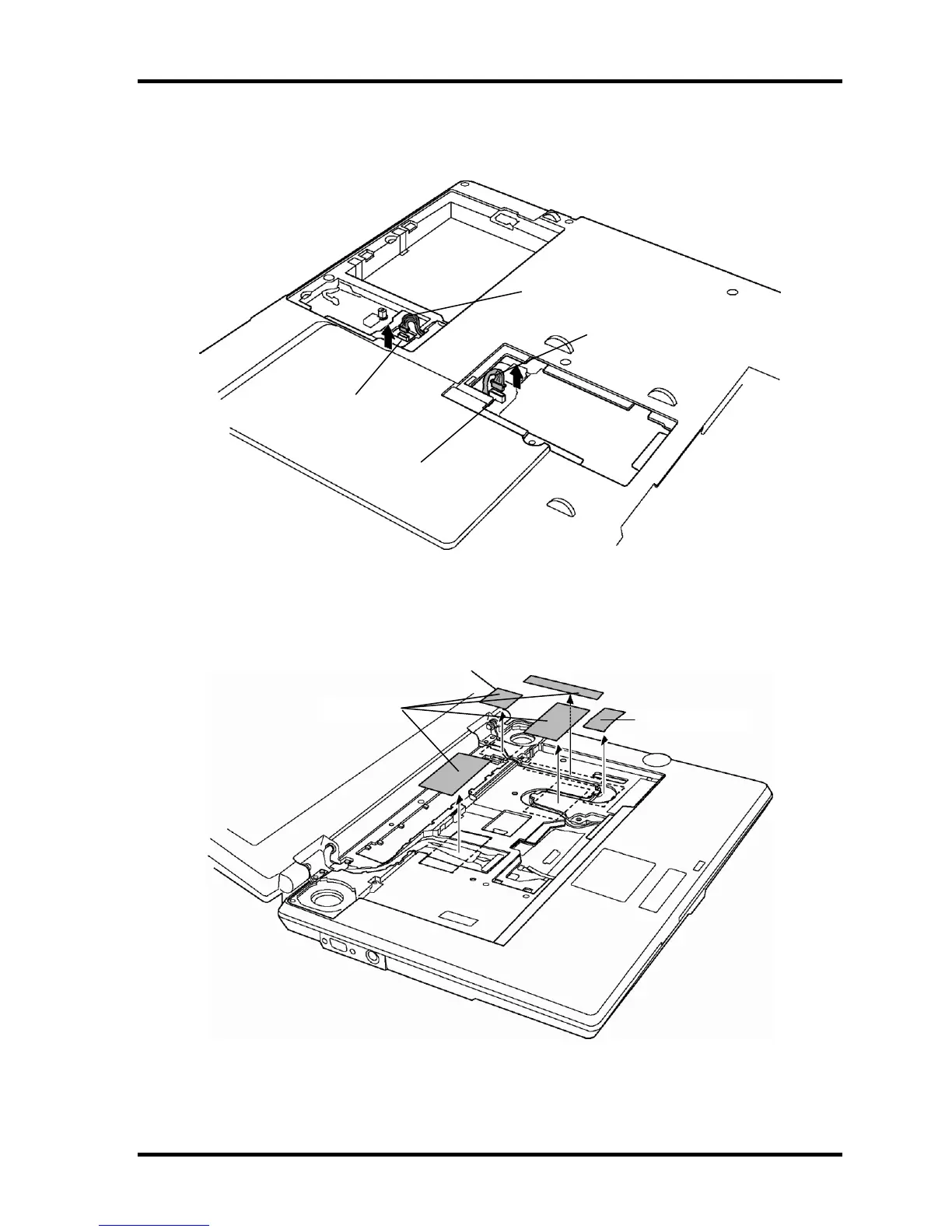

Figure 4-14 Removing the cables (bottom)
4. Tun over the computer and open the display and remove four insulators and one
glass tape.
Figure 4-15 Removing the insulators and glass tape
CN6170
CN4611
Speaker cable
USB board cable
Insulators
Glass tape
To Next Page
