4.8 Display assembly 4 Replacement Procedures
QOSMIO F20 Maintenance Manual (960-526) [CONFIDENTIAL] 4-25
5. Disconnect the Tach pad cable from CN3240, the Volume cable from CN3330 and
the LCD cable from CN5000 on the system board.
6. Remove the following screw and LCD cable holder.
? M2.5?4B FLAT BIND x1
7. Remove the following screws fixing the display assembly.
? M2.5?6B FLAT BIND x3

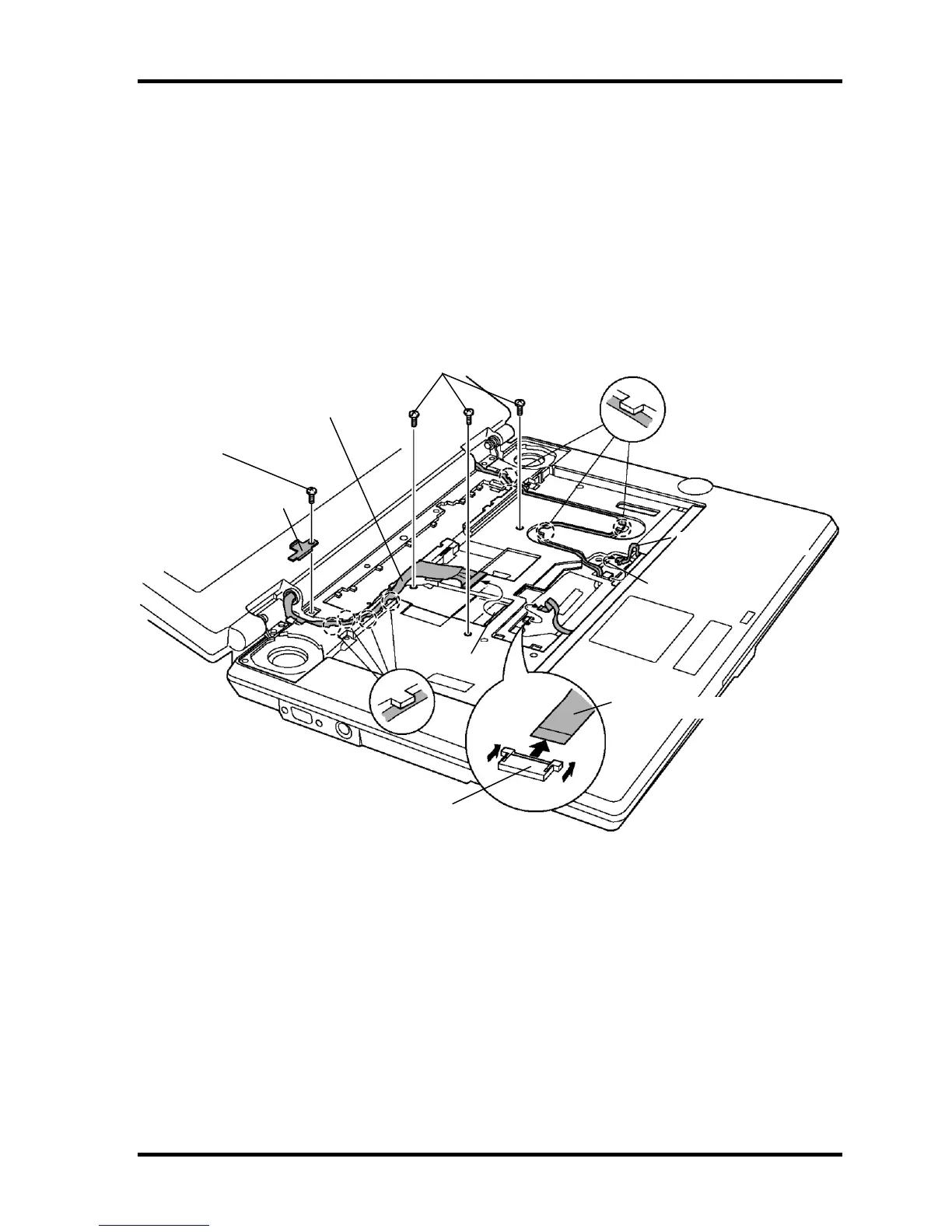

Figure 4-16 Removing the screws and cables
M2.5 ? 4B FLAT BIND
M2.5 ? 6B FLAT BIND
LCD cable holder
Touch pad cable
CN3240
CN5000
Volume cable
CN3330
LCD cable
