4 Replacement Procedures 4.24 Fluorescent lamp
4-82 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
7. Remove the spacer (1).
8. Remove (2) to (6) from the plastic chassis.
9. Remove the screw (9).
10. Peel off the double-sided tape (10) and remove the FL lamp.

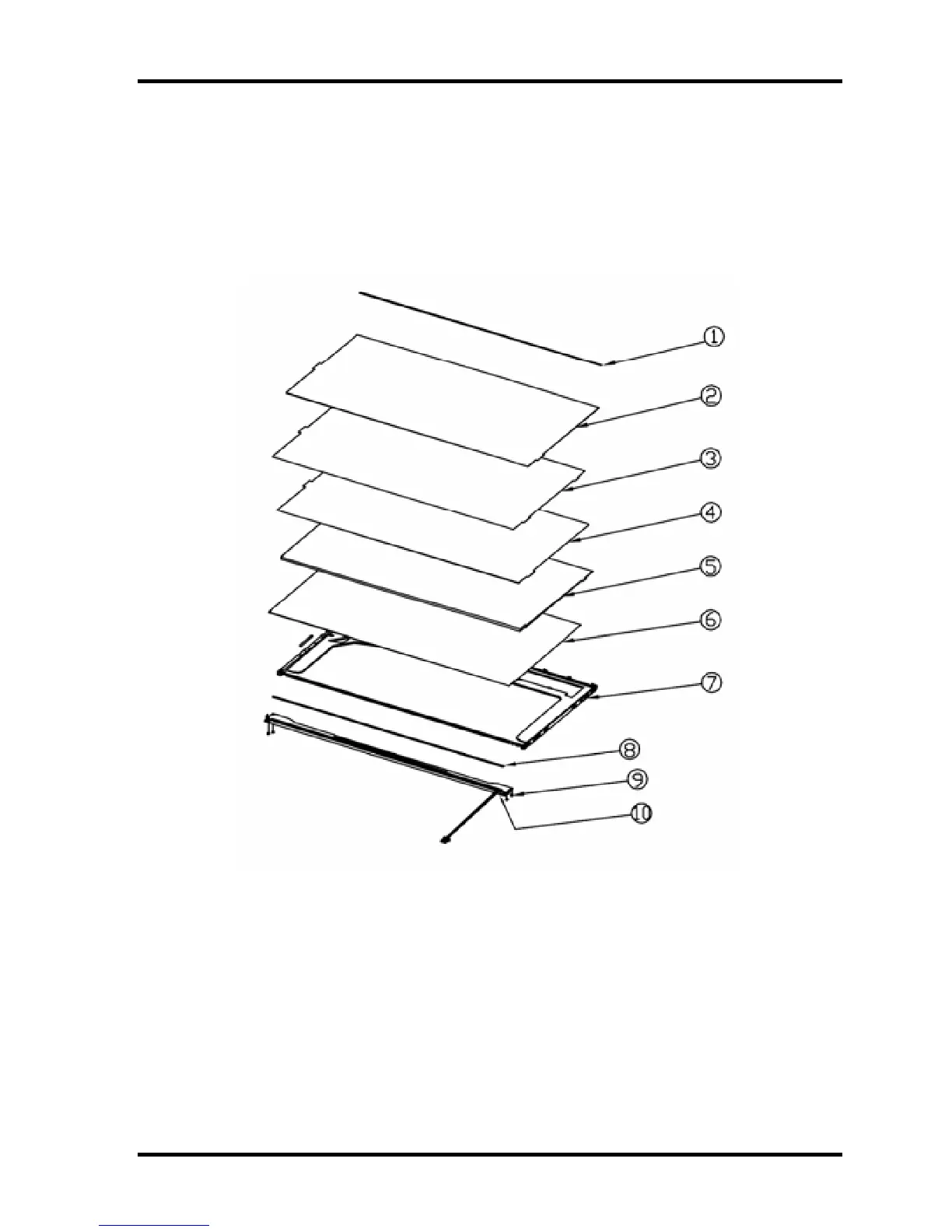

Figure 4-66 Replacing Chemei fluorescent lamp (W-XGA 1-lamp) (5)
Assembling the 15.4-inch 1-lamp (W-XGA) Chemei fluorescent lamp
The assembly procedure is the reverse of the above disassembly procedure.
