2 Troubleshooting Procedures 2.3 Power Supply Troubleshooting
2-14 [CONFIDENTIAL] QOSMIO F20 Maintenance Manual (960-526)
Procedure 3 Connection Check

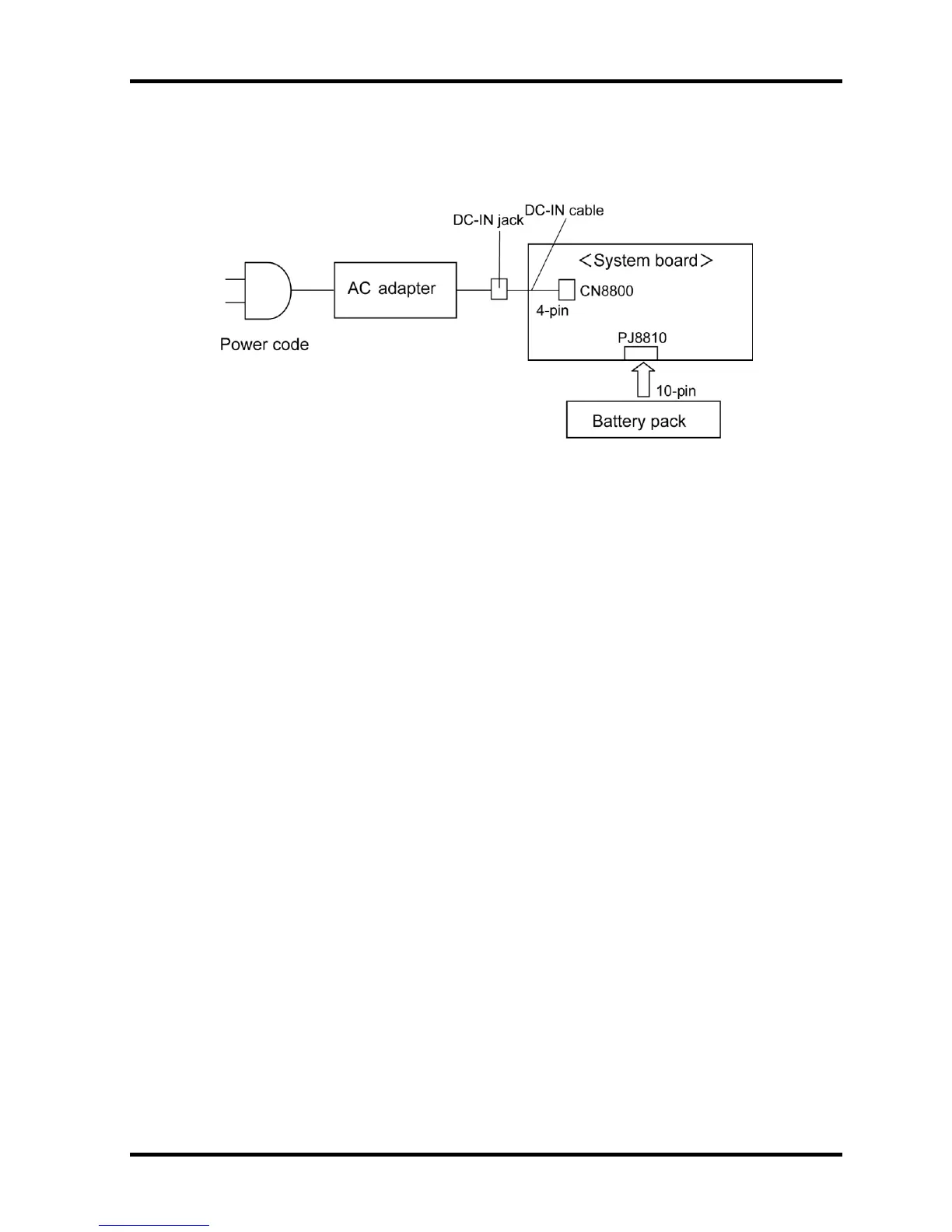

The wiring diagram related to the power supply is shown below:
Any of the connectors may be disconnected. Perform Check 1.
Check 1 Make sure the AC adapter and power cord are firmly plugged into the DC IN jack
and wall outlet. If these cables are connected correctly, go to Check 2.
Check 2 Make sure the DC-IN cable is firmly plugged to the connector CN8800 on the
system board. If the cable is connected correctly, go to Check 3.
Check 3 Replace the AC adapter and the AC power cord with new ones.
? If the DC IN icon does not light, go to Procedure 5.
? If the battery icon does not light, go to Check 4.
Check 4 Make sure the battery pack is installed in the computer correctly. If the battery is
properly installed and the battery icon still does not light, go to Procedure 4.
To Next Page
