,_,,- .. -

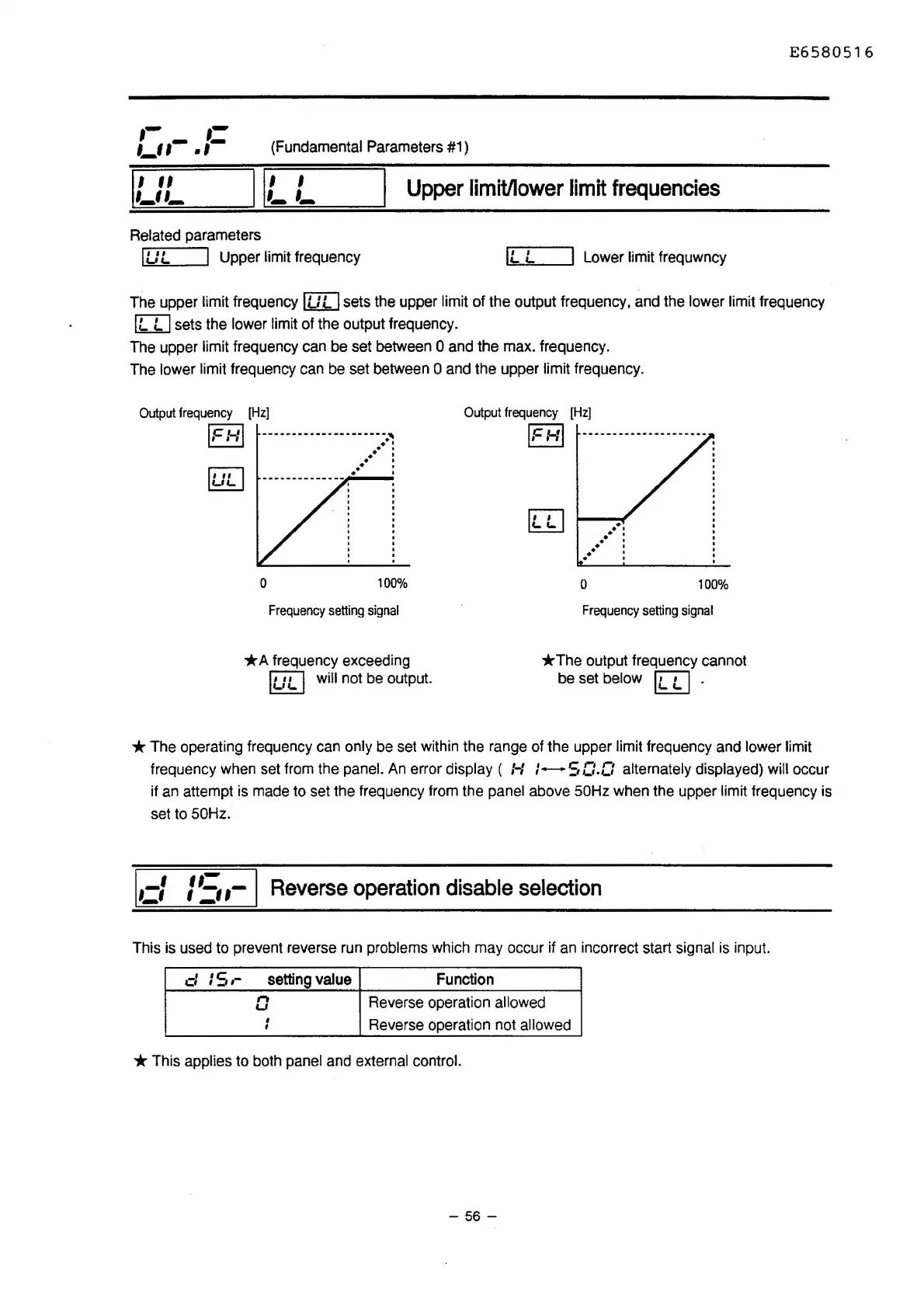

(Fundamental Parameters #1)
I' II
~-''-
llLL
Related parameters
IU L I Upper limit frequency
Upper limit/lower limit frequencies
ILL
Lower limit frequwncy
E6580516
The upper limit frequency [UJ sets the upper limit of the output frequency, and the lower limit frequency
IL L I sets the lower limit of the output frequency.
The upper limit frequency can be set between
0 and the max. frequency.
The
lower limit frequency can be set between 0 and the upper limit frequency.
Output frequency [Hz]
Output frequency [Hz]
li=:-:I ---------------------~
.. ··•····
1:=1-11 ------------------·-·
0 100%
Frequency setting signal
*A frequency exceeding
luL I will not be output.
...
.... ···
0 100%
Frequency setting signal
*The output frequency cannot
be set below
IL L I .
* The operating frequency can only be set within the range of the upper limit frequency and lower limit
frequency when set from the panel. An error display ( :-: 1-50.0 alternately displayed) will occur
if
an attempt is made to set the frequency from the panel above 50Hz when the upper limit frequency is
set to 50Hz.
' ,,-
,-,
1
-
11
- Reverse operation disable selection
- -
This is used to prevent reverse run problems which may occur if an incorrect start signal is input.
cl :s,- setting value Function
n
Reverse operation allowed
u
'
Reverse operation not allowed
I
* This applies to both panel and external control.
- 56 -
