E6580516

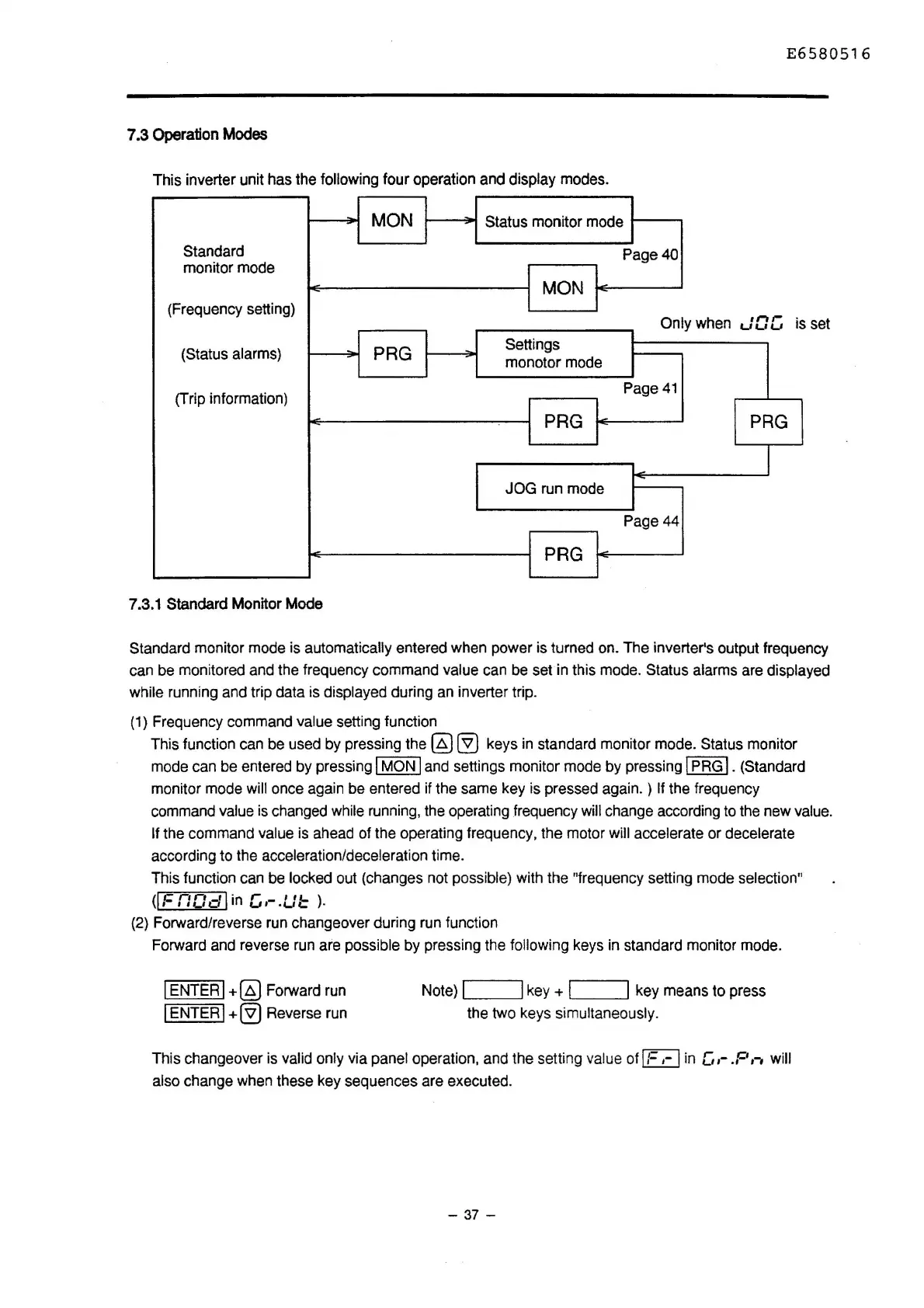

7 .3 Operation Modes
This inverter unit has the
following four operation and display modes.
-
MON
-
Status monitor mode
Standard
Page40
monitor mode
-
MON
-
(Frequency setting)
Only when
rnr
is
uc...ru
set
Settings
(Status alarms)
-
PRG
:::
monotor mode
(Trip information)
Page
41
PRG
-
PRG
-
-
JOG run mode
Page 44
PRG
7.3.1 Standard Monitor Mode
Standard monitor mode is automatically entered when power is turned on. The inverter's output frequency
can be monitored and the frequency command
value can be set in this mode. Status alarms are displayed
while
running and trip data is displayed during an inverter trip.
(1) Frequency command
value setting function
This function can be used by pressing the
g)
(Y)
keys
in
standard monitor mode. Status monitor
mode can be entered by pressing
I MON I and settings monitor mode by pressing I PRG
I.
(Standard
monitor mode
will once again be entered if the same key is pressed again. ) If the frequency
command
value
is
changed while running, the operating frequency will change according to the new value.
If
the command value is ahead of the operating frequency, the motor will accelerate or decelerate
according to the acceleration/deceleration time.
This function can
be locked out (changes not possible) with the "frequency setting mode selection"
(!Fnoc1lin
c,.-.ut
).
(2) Forward/reverse run changeover during run function
Forward and reverse run
are possible by pressing the following keys in standard monitor mode.
I ENTER I +
~
Forward run
I ENTER I +
[Y)
Reverse run
Note)
l.___~I
key
+I~
-~I
key means to press
the two keys
simultaneously.
This changeover
is
valid only via panel operation, and the setting value of
IF
,-
I in
[,
,-
.F'
,-,
will
also change when these key sequences are executed.
- 37 -
