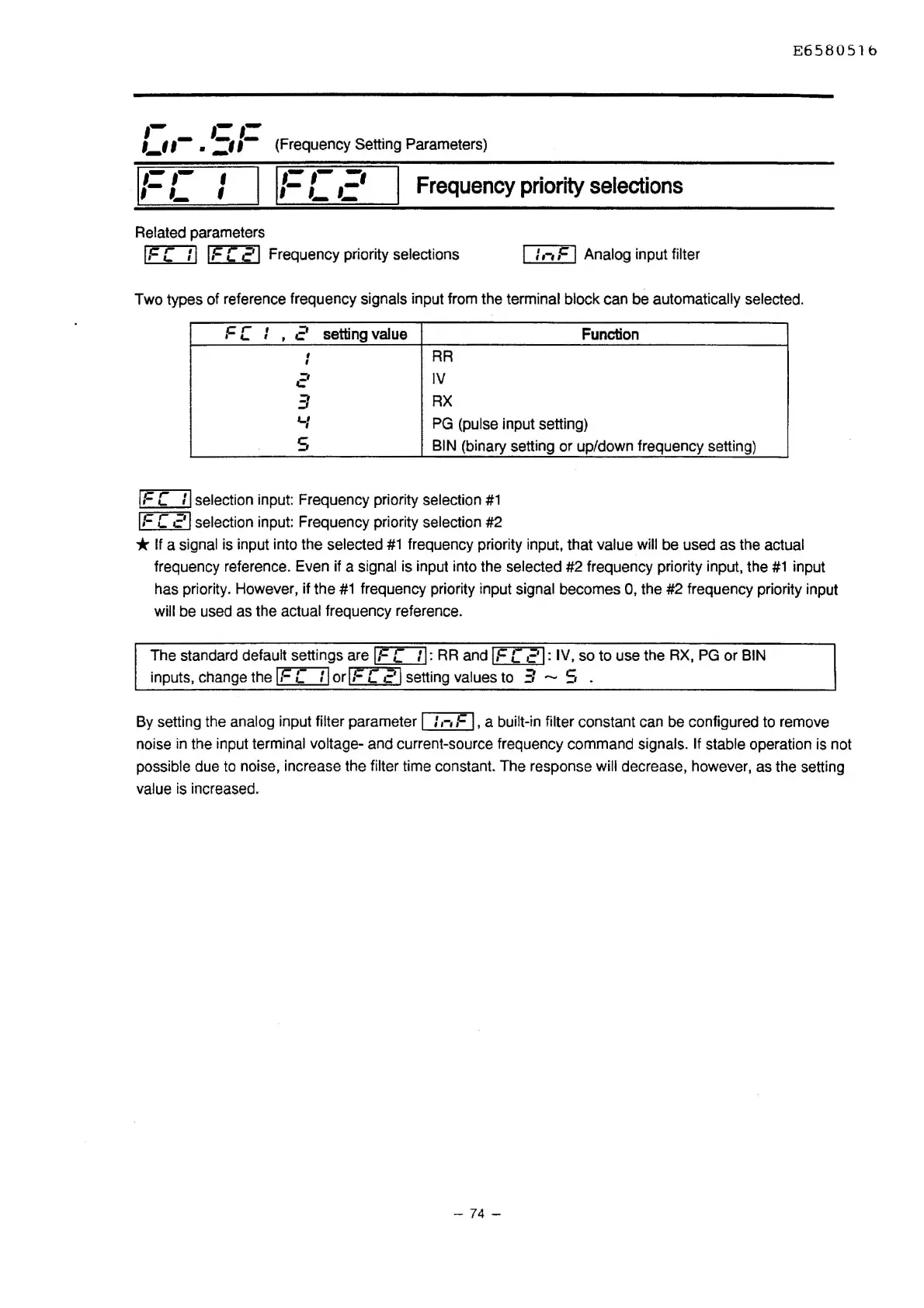

(Frequency Setting Parameters)
1,-,-
,-,
'
'
,-,-
-,
,-
,
,-
- -
Frequency
priority
selections
-
Related parameters
IF
C I I
IF
C
21
Frequency priority selections
/
,-,
F I Analog input filter
E658051b
Two types of reference frequency signals input from the terminal block can be automatically selected.
FC
I
2
setting value
Function
'
,
'
RR
'
c.·
IV
3
RX
._,
I
PG
(pulse input setting)
s
BIN (binary setting or up/down frequency setting)
IF
C I I selection input: Frequency priority selection
#1
IF
cc'
I selection input: Frequency priority selection #2
* If a signal is input into the selected
#1
frequency priority input, that value will be used as the actual
frequency reference. Even if a
signal is input into the selected #2 frequency priority input, the
#1
input
has priority. However, if the
#1
frequency priority input signal becomes 0, the #2 frequency priority input
will be used as the actual frequency reference.
The standard default settings are
IF
c t
I:
RR
and
IF
[
c'
I:
IV, so to use the RX,
PG
or BIN
inputs, change the
IF
[ : I or
IF
c
c'
I setting values to 3 - 5 .
By setting the analog input filter parameter I
I,-,
F
I,
a built-in filter constant can be configured to remove
noise
in
the input terminal voltage- and current-source frequency command signals. If stable operation is not
possible due to noise, increase the
filter time constant. The response will decrease, however, as the setting
value
is
increased.
- 74 -
