Toshiba Tosvert VF-A5 User Manual

E6580516

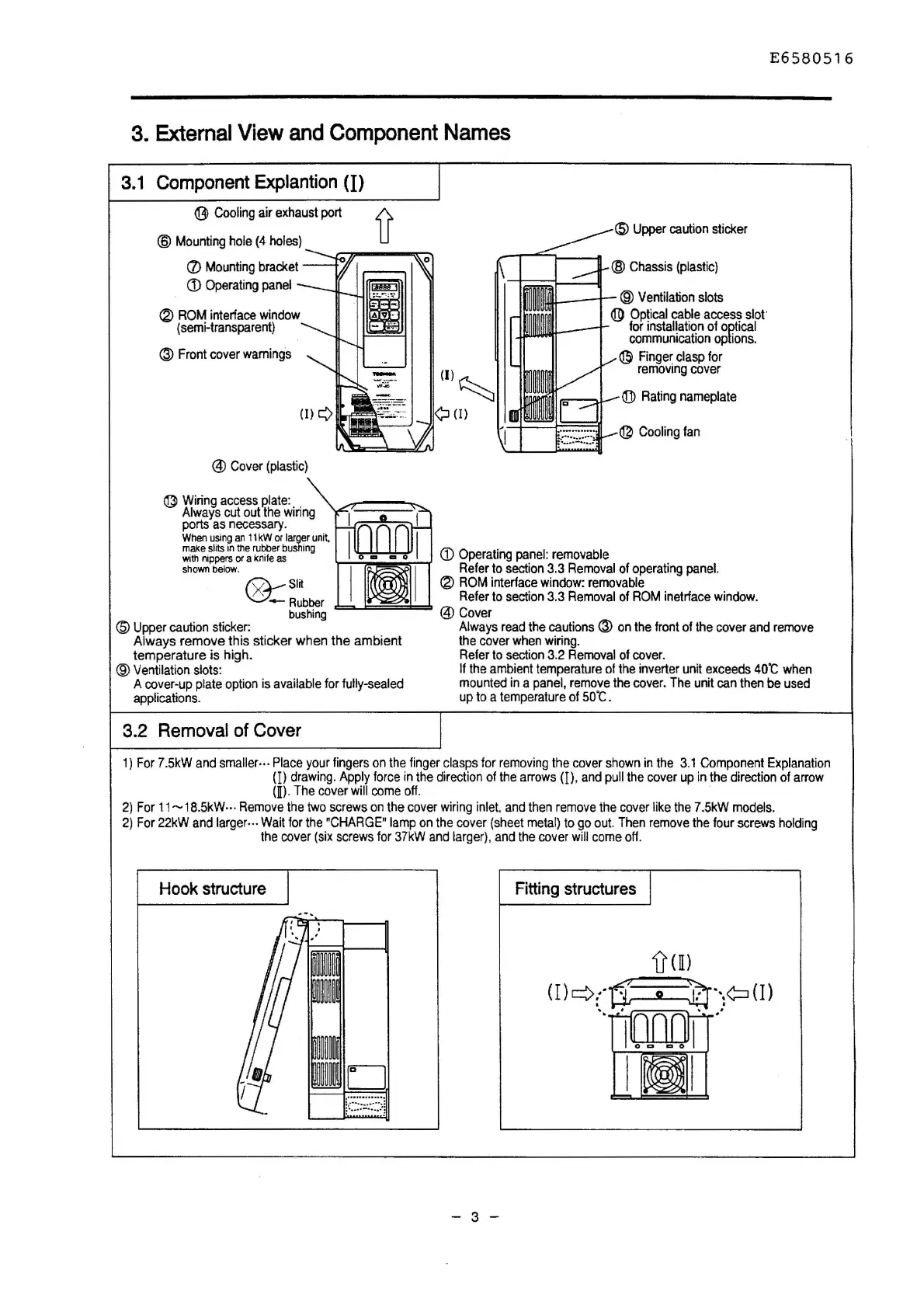

3. External View and Component Names
3.1 Component Explantion (I)
@ Cooling air exhaust port
@ Mounting hole (4 holes)
(!) Mounting bracket
CD Operating panel
(2) ROM interface window
(semi-transparent)
(ID Front cover warnings
@ Cover (plastic)
® Wiring access plate :
Always cut out the wiring
ports as necessary .
.1...---r-<ID Ventilation slots
® Optical cable access slot ·
for installation of optical
communication options.
® Finger clasp for
removing cover
@ Cooling fan
When using an 11 kW or larger unit,
make slits 1n tne rubber bushing
witn nippers or a knife as
shown below.
CD Operating panel: removable
'I""'"';~~~~,. Refer to section 3.3 Removal of operating panel.
~Slit
\'.:::7_ Rubber
bushing
@ Upper caution sticker:
Always remove this sticker when the ambient
temperature
is high.
<ID Ventilation slots:
A cover-up plate option is available for fully-sealed
applications .
3.2 Removal of Cover
CZ) ROM interface window: removable
Refer to section 3.3 Removal of ROM inetrface window.
@Cover
Always read the cautions @ on the front of the cover and remove
the cover when wiring .
Refer to section 3.2 Removal of cover .
If the ambient temperature of the inverter unit exceeds 40'C when
mounted in a panel, remove the cover. The unit can then be used
up to a temperature of 50'C.
1) For 7.5kW and smaller··· Place your fingers on the finger clasps for removing the cover shown in the 3.1 Component Explanation
(I) drawing. Apply force in the direction of the arrows (I), and pull the cover up in the direction of arrow
([). The cover will come off .
2) For 11-18.5kW ·· · Remove the two screws on the cover wiring inlet , and then remove the cover like the 7.5kW models.
2) For 22kW and larger . .. Wait for the "CHARGE" lamp on the cover (sheet metal) to go out. Then remove the four screws holding
the cover (six screws for 37kW and larger), and the cover will come off .
Hook structure
Fitting structures
- 3 -
