Toshiba Tosvert VF-S15 User Manual

E6582175
E-14
5

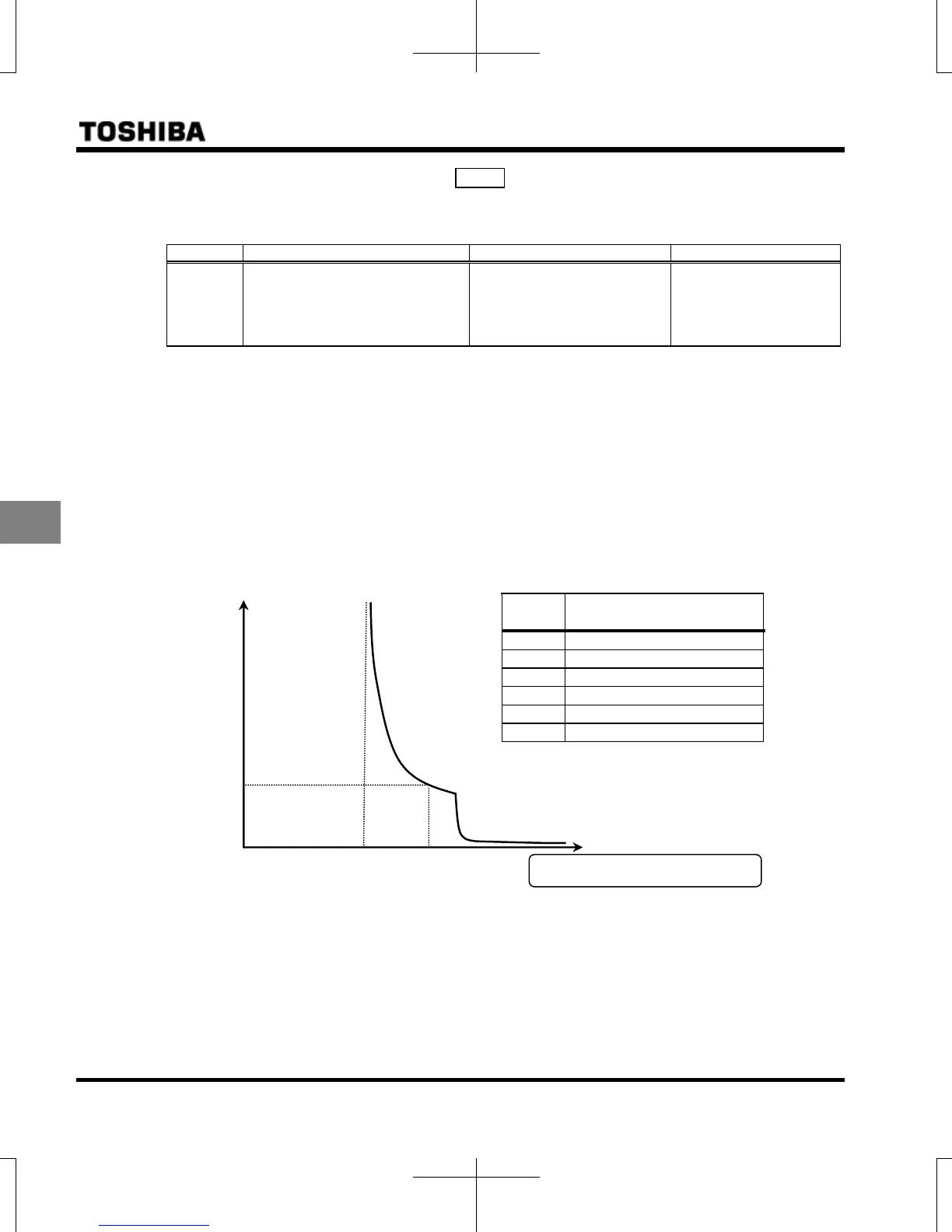

5) Overload characteristic selection aul
Overload characteristic of inverter can be selected to 150%-60s or 120%-60s.
[Parameters settings]
Title Function Adjustment range Default setting
aul
Overload characteristic selection
0: -
1: Constant torque
characteristic（150%-60s）
2: Variable torque
characteristic（120%-60s）
0
● Regarding to characteristic for aul=1 setting, refer to section 5.6.3).
Note) In case of aul=2 setting, be sure to install the input AC reactor (ACL) between power supply and inverter,
to remove the protective label on the top of the inverter, and to connect the grounding capacitors by
pressing the grounding capacitor switch.
Then, to use the inverter at 40°C or less of the ambient temperature with setting f300 to 4.0 kHz or less.
 aul=2 (Variable torque characteristic), f631=0 (120%-60s)
Inverter overload protection characteristic
60
100%: Inverter rated output current
time [s]
Inverter overload
Monitored output current [%]
0
105% 120%
Current
[%]
Inverter overload time [s]
(Outline data)
106 900
110 180
115 90
120 60
140 2
165 0.5

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
