Toshiba Tosvert VF-S15 User Manual

E6582175
J-6
10

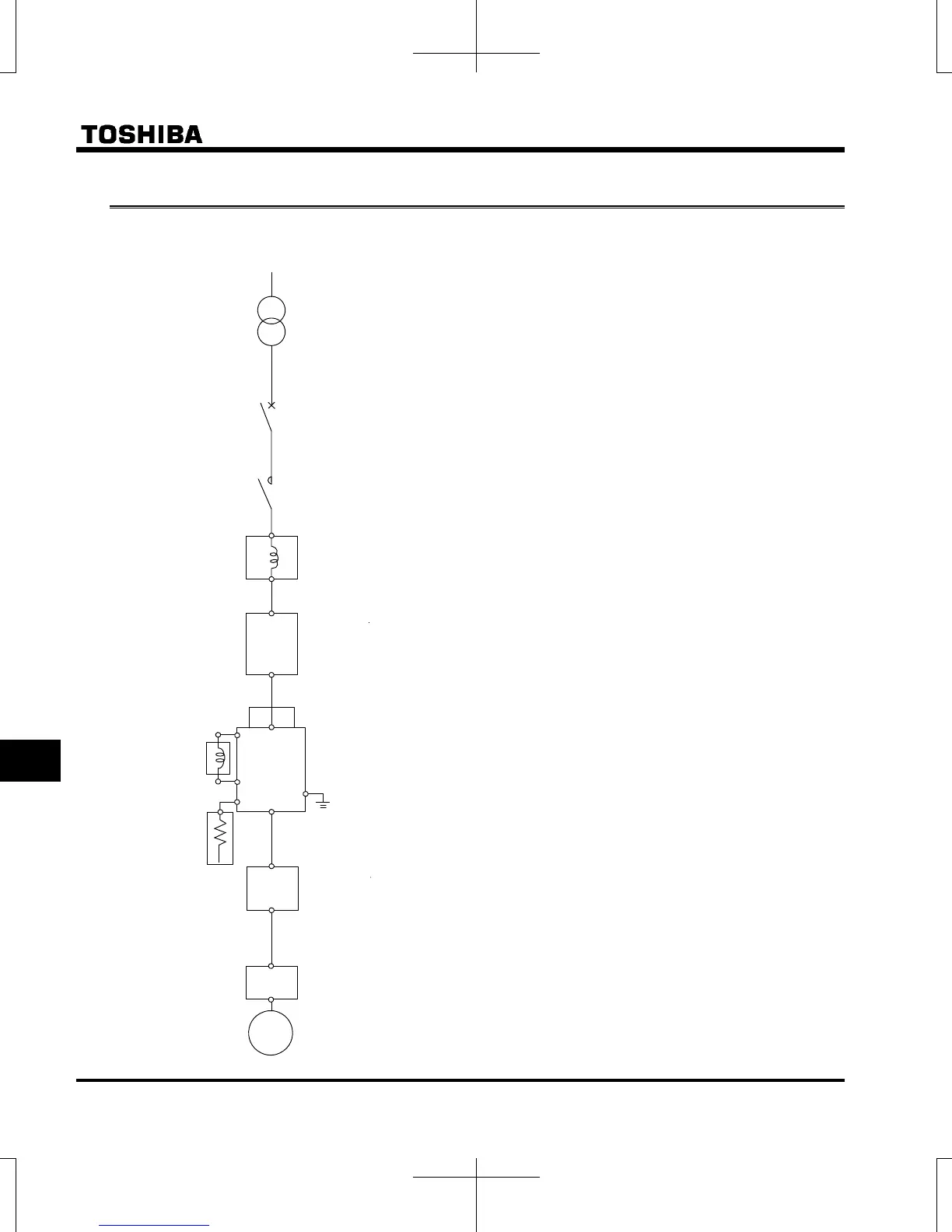

(1)
Input AC reactor
(ACL)
Molded-case circuit breaker
MCCB
Power supply
Magnetic contactor
MC
Zero-phase reactor
core-type
radio noise
reduction filter
N.F
N.F
VF-S15
(4)
M
(7)
Braking resistor
Motor
Zero-phase reactor
core-type
radio noise
reduction filter
(5)
EMC noise reduction filter
(Compliant with European
standards)
(4)
(8)
Motor-end surge voltage
suppression filter
(for 500V models only)
(3) High-attenuation
radio noise
reduction filter
(6)
(9)
EMC Plate
DIN rail kit
(2)DC reactor
(DCL)
10.4 Optional external devices
The following external devices are optionally available for this inverter series.
(10) Parameter writer : RKP002Z
PWU003Z
(11) Extension panel : RKP007Z
(12) Remote control panel : CBVR-7B1
(13) Frequency meter : QS60T
(14) FRH kit : FRH KIT
(15) USB communication converter : USB001Z
(16) CC-Link communication option : CCL003Z
(17) PROFIBUS-DP communication option :
PDP003Z
(18) DeviceNet communication option : DEV003Z
(19) EtherNet / IP-Modbus TCP communication option
: IPE002Z
(20) EtherCAT communication option : IPE003Z
(21) CANopen communication option : CAN001Z
: CAN002Z
: CAN003Z
(22) PROFINET communication option : PNE001Z
(23) Communication option adaptor : SBP009Z

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
