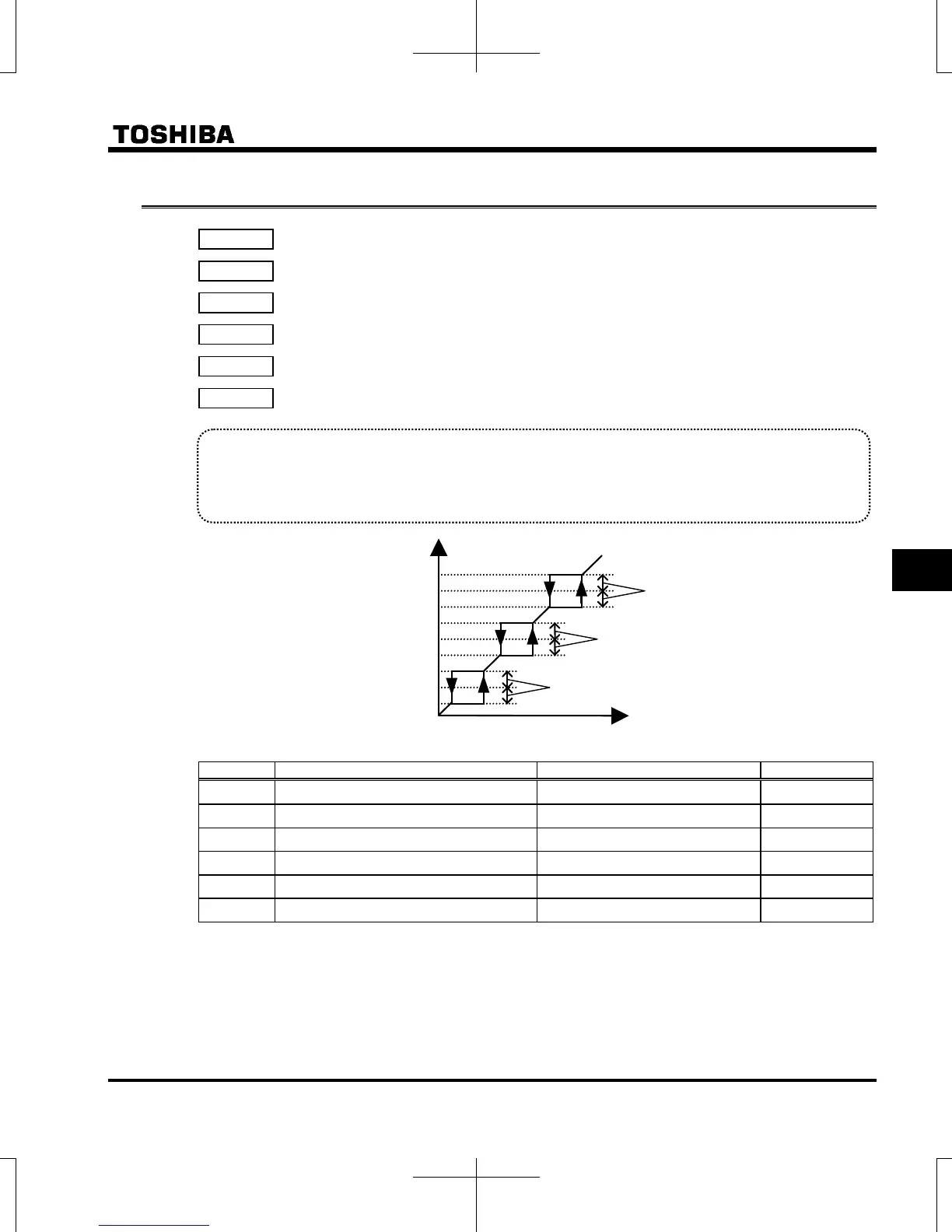

6.15 Jump frequency - avoiding resonant frequencies
f270 : Jump frequency 1
f271 : Jumping width 1
f272 : Jump frequency 2
f273 : Jumping width 2
f274 : Jump frequency 3
f275 : Jumping width 3
 Function
Resonance due to the natural frequency of the mechanical system can be avoided by jumping the
resonant frequency during operation. During jumping, hysteresis characteristics with respect to the jump
frequency are given to the motor.
Jumping width 1 (

)
Jumping width 2 (

)
Jumping width 3 (

)
Jump frequency 3 (

)
Jump frequency 1 (

)
Jump frequency 2 (

)
Output command frequency
(Hz)
Frequency setting signal
0
[Parameter setting]
Title Function Adjustment range Default setting
f270
Jump frequency 1 0.0-fh (Hz) 0.0
f271
Jumping width 1 0.0-30.0 (Hz) 0.0
f272
Jump frequency 2 0.0-fh (Hz) 0.0
f273
Jumping width 2 0.0-30.0 (Hz) 0.0
f274
Jump frequency 3 0.0-fh (Hz) 0.0
f275
Jumping width 3 0.0-30.0 (Hz) 0.0
Note 1: Do not set the jump parameters, if multiple jump frequency setting width overlap.
Note 2: During acceleration or deceleration, the jumping function doesn’t work for the operation frequency.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
