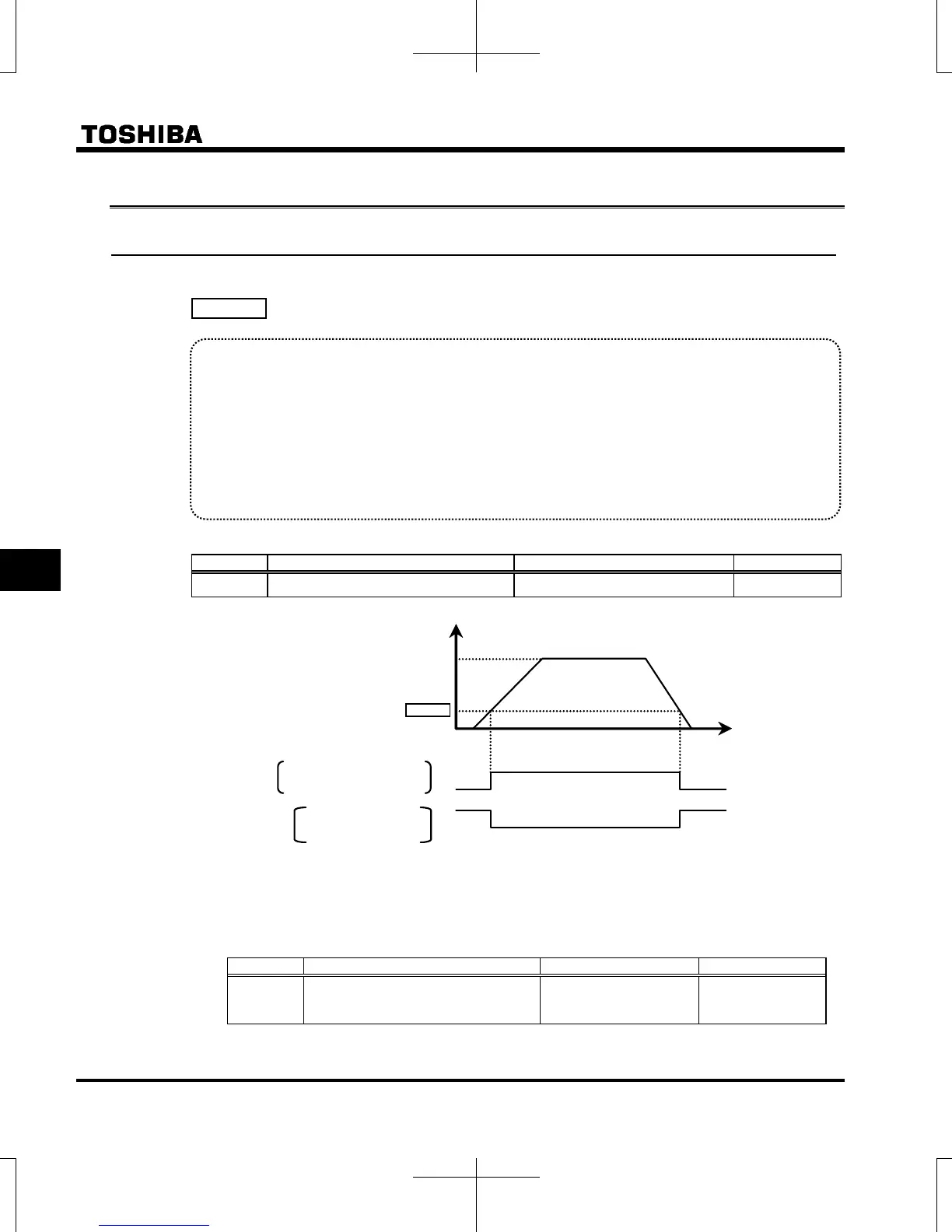

6.5 Signal Output
6.5.1 Output running signal and braking signal (Low-speed signal)
Refer to section 7.2.2 for output terminal function.
f100 : Low-speed signal output frequency
 Function
When the output frequency become f100 or more, an ON signal will be generated. This signal can
be used as an electromagnetic brake excitation/release signal. (Refer to “Motors with a brake” in
section 1.4.1 for application.)
This signal can also be used as an operation signal when f100 is set to 0.0Hz, because an ON
signal is put out if the inverter is in output state.
● Output from the relay output terminal RY-RC. (Default)
Output from the terminal FLA-FLB-FLC and OUT are possible by the parameter settings.
[Parameter setting]
Title Function Adjustment range Default setting
f100
Low-speed signal output frequency 0.0 - fh (Hz) 0.0
Output frequency
Time [s]

Low-speed detection signal :
OUT-NO terminals
ON
OFF
Inversion of low-speed
detection signal
ON
OFF
[Hz]
0
Setting frequency
 Output terminal setting
Low-speed signal (ON signal) is output from RY-RC terminal by default setting.
Change this setting to invert the polarity of the signal.
[Parameter setting]
Title Function Adjustment range Default setting
f130
Output terminal selection 1A (RY-RC)
0-255
(Refer to section 11.7)
4: LOW (Low-
speed detection
signal)
Setting value 5 is reverse signal.
Note) Set f132 to output to FLA-FLC-FLB terminals and f131 to OUT terminal.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
