Toshiba Tosvert VF-S15 User Manual

E6582175
A-3
1

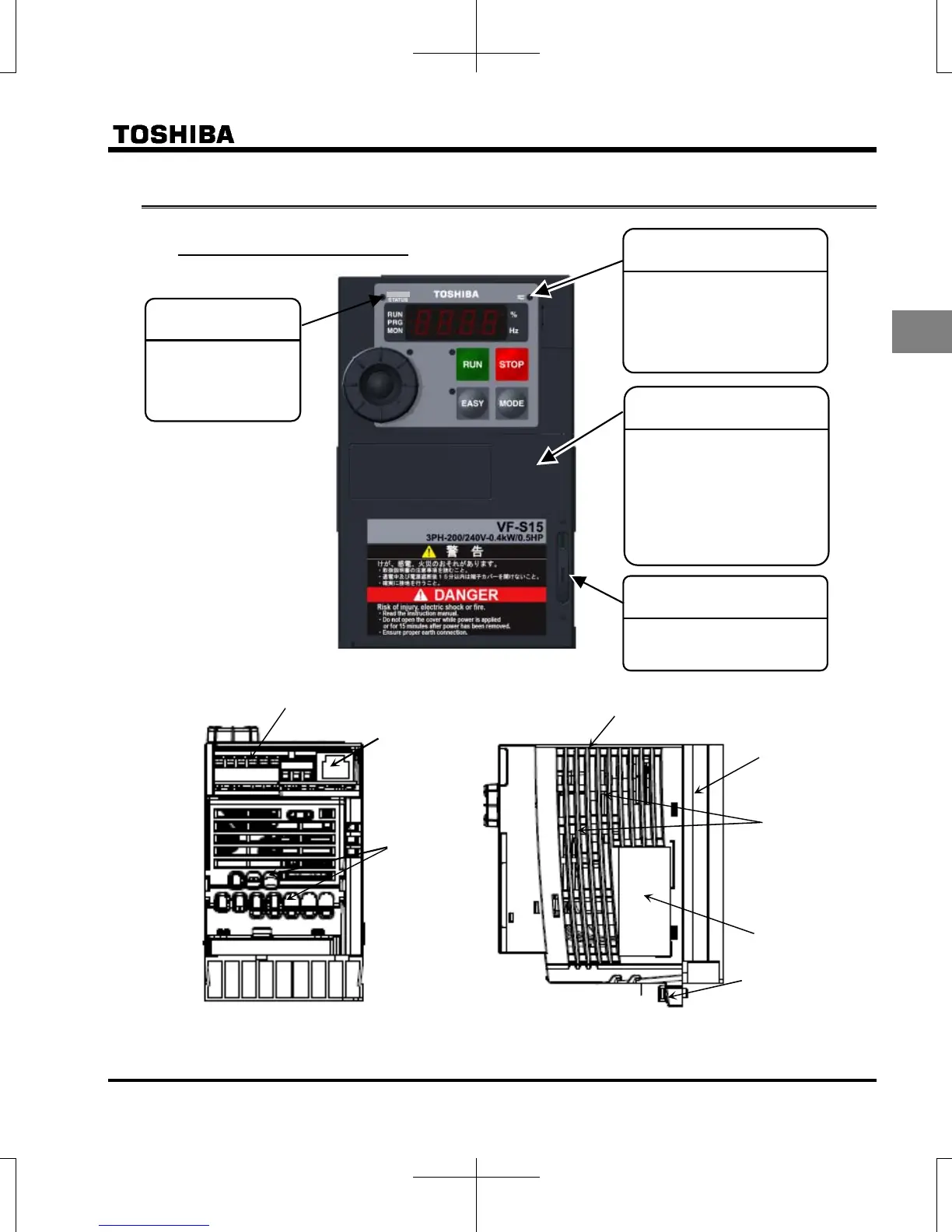

1.3 Names and functions
1.3.1 Outside view
Note 1) Remove the protective label as shown on the next page when installing the inverter side by side with other
inverters and using the inverter in locations with temperatures above 40°C.
RS485 connector
Protective label (Note 1)
Name plate
Ventilation
Cooling fin
[Front view]
Hole for main
circuit wiring
[Bottom view]
[Side view]
Charge lamp
Indicates there is a high
voltage still in the inverter.
Do not open the terminal
block cover when this lamp
is lit because it is dangerous.
Cover
This is the body and terminal
block cover.
Always close this cover
before operation to avoid
accidentally touching the
terminal block.
The serial number is recorded
on the back side.
Door lock
Slide the door lock to upside
for unlock.
Hole for control circuit wiring
Mounting part of
EMC plate
STATUS lamp
Lights and blinks when
using CANopen
®
communication option.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
