E6582175
H-1
8
8. Monitoring the operation status

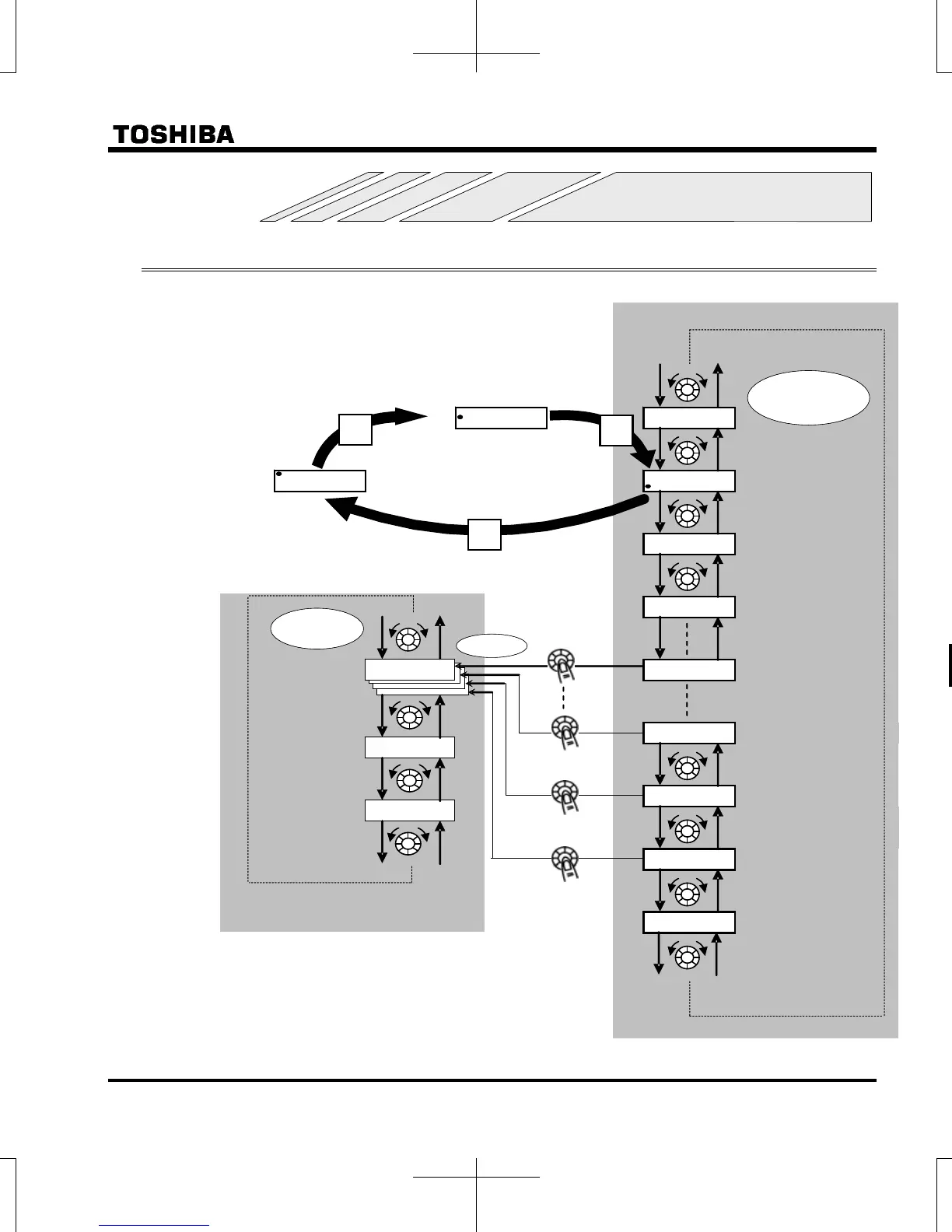

8.1 Flow of status monitor mode


60.0


t0.10





y
● Display mode
(Refer to section 4.1)
MON
About
20 kinds of data
●About 20 kinds of data
can be monitored.
Monitor items can be
selected by setting
parameter
f711
to
f716
.
During normal operation:
Details monitored in real
time. (Refer to section
8.2.1)
In case of a trip: Data
collected at the time o
f
occurrence of a trip is
retained until the
power is off.
(Refer to section 8.3.2)
y
y
PRG
RUN



About
10 kinds of data
For 8 times
●About 10 kinds o
f
predetermined data
can be monitored 8
times, after power
off and on.
Data collected at
the time o
f
occurrence of a trip
is retained when
the power is off.
(Refer to section 8.2.2)
Past trip record detained monitor mode
Note: To return to the original display mode, press the MODE key.
Flow of monitor as following
Setting monitor mode
Standard monitor mode
Status monitor mode
MODE
MODE
MODE
