Toshiba Tosvert VF-S15 User Manual

E6582175
F-27
6

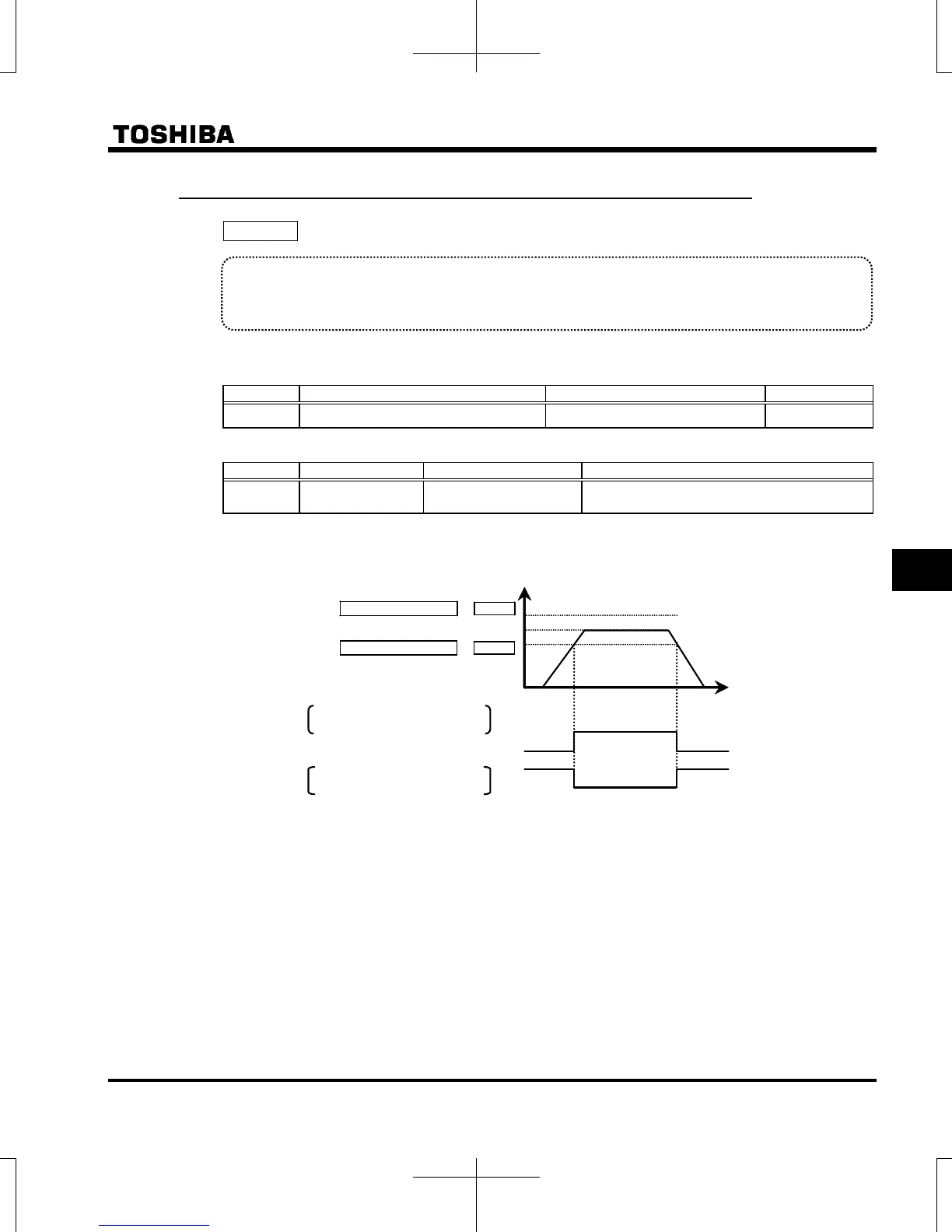

6.5.2 Output of designated frequency reach signal
f102 : Speed reach detection band
 Function
When the output frequency becomes equal to the setting by designated frequency  f102, an ON
or OFF signal is generated.
[Parameter setting]
Parameter setting of designated frequency and detection band
Title Function Adjustment range Default setting
f102
Speed reach detection band 0.0-fh (Hz) 2.5
Parameter setting of output terminal selection
Title Function Adjustment range Default setting
f131
Output terminal
selection 2A (OUT)
0-255
(Refer to section 11.7.)
6: RCH (Output frequency attainment signal
(acceleration/deceleration completed))
Setting value 7 is reverse signal.
Note: Set f132 to output to FLA-FLC-FLB terminals and f130 to RY-RC terminal.
Output frequency [Hz]
Time [s]
Designated frequency  
ON
OFF
Designated frequency  
Setting frequency
Output frequency attainment signal
: OUT-NO terminals
Inversion of output frequency
attainment signal
ON
OFF
0

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
