* The f702 converts the following parameter settings:
In case of f703=0
Free unit Frequency monitor display Output frequency, Frequency command value, PID
feedback value, Stator frequency,
Frequency-related parameters fc, fh, ul, ll, sr0  sr7,
f100, f101, f102, f167, f190, f192,
f194, f196, f198, f202, f204, f211,
f213, f217, f219
f240, f241, f242, f250, f260, f265,
f267, f268, f270 to f275,
f287  f294, f330, f331, f346, f350,
f367, f368, f383,
f390 to f393, f505, f513, f649, f812,
f814, a923 to a927
In case of f703=1
 Free unit PID control -related parameters fpid, f367, f368
Note) The unit of the Base frequency 1 and 2 are always Hz.

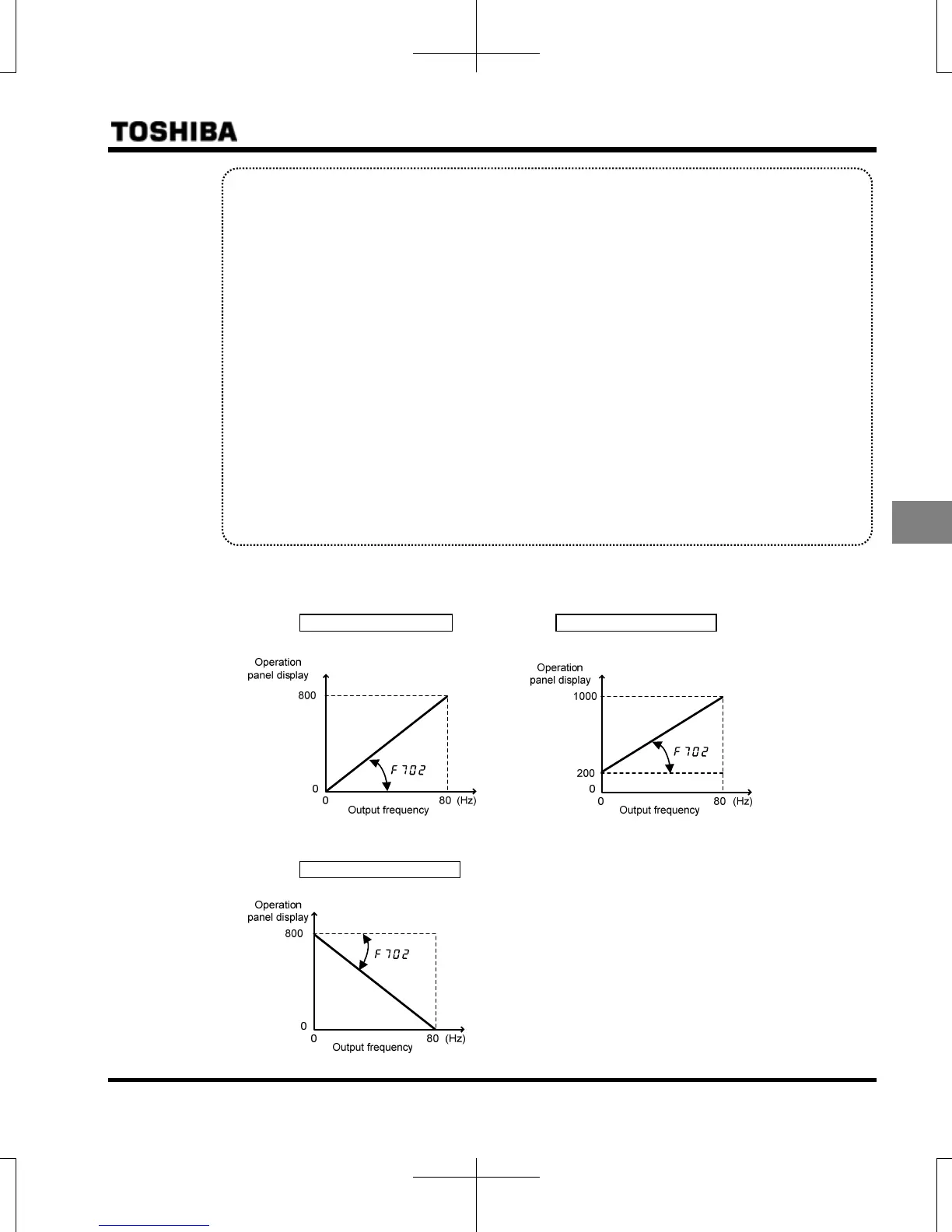

 An example of setting when fh is 80 and f702 is 10.00
f705=1, f706=0.00 f705=1, f706=20.00
f705=0, f706=80.00

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
