Toshiba Tosvert VF-S15 User Manual

E6582175
F-30
6

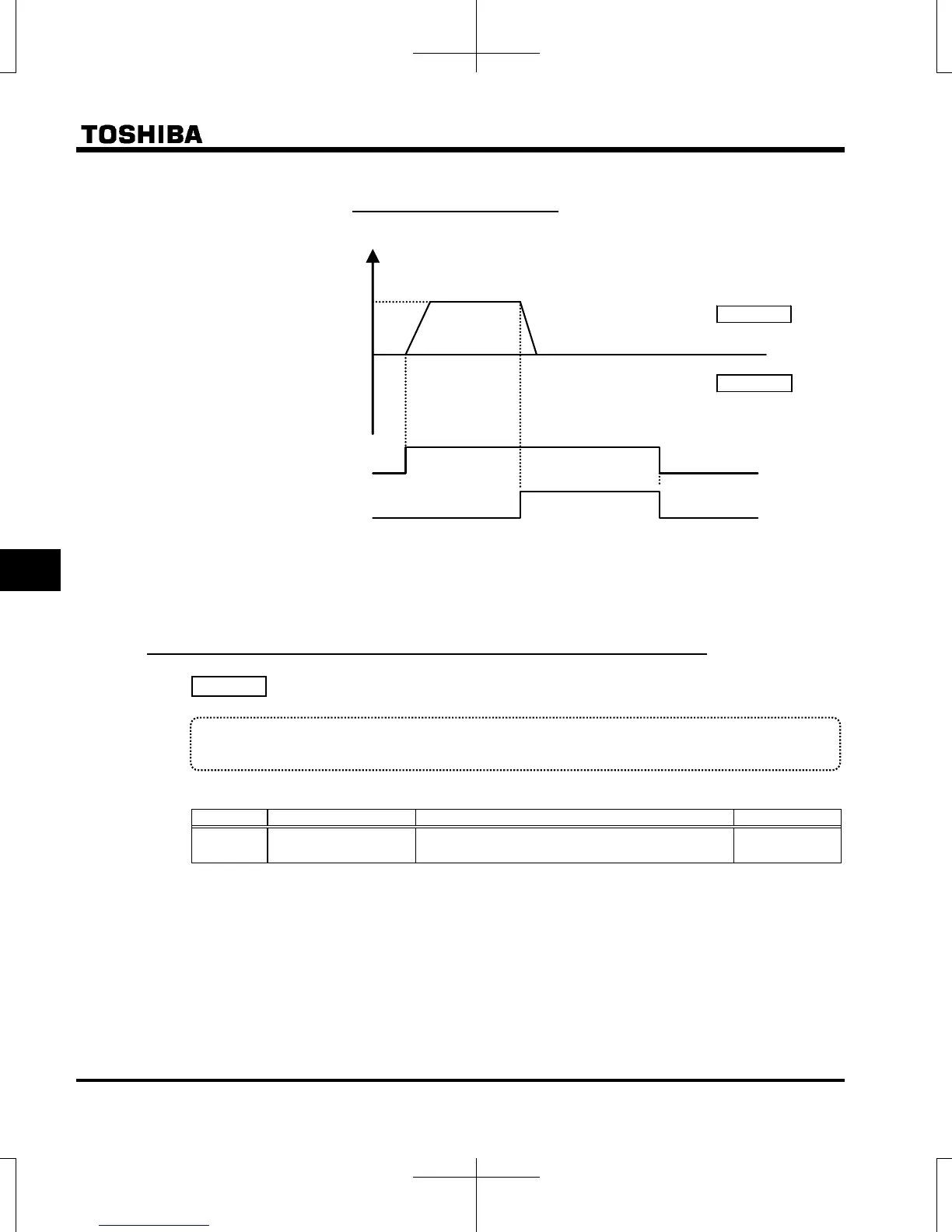

(2) [f105 = 1 (Stop)]: If an F command and an R command are entered simultaneously,
the motor will deceleration stop.
Forward run
Reverse run
Forward run command
Reverse run command
ON
OFF
ON
OFF
Output frequency [Hz]
Setting frequency
Time[s]
0
6.6.2 Changing the voltage range of VIB terminal
f107 : Analog input terminal selection (VIB)
 Function
This parameter allows you to choose the voltage signal input for the VIB terminal.
[Parameter setting]
Title Function Adjustment range Default setting
f107
Analog input terminal
selection (VIB)
0: 0-+10V
1: -10-+10V
0
● f107=0 : Input 0 to +10Vdc to VIB-CC terminals.
Resolution is maximum 1/1000 between 0 to +10Vdc.
● f107=1 : Input -10 to +10Vdc to VIB-CC terminals.
Resolution is maximum 1/2000 between -10 to +10Vdc.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
