E6582175
A-7
1

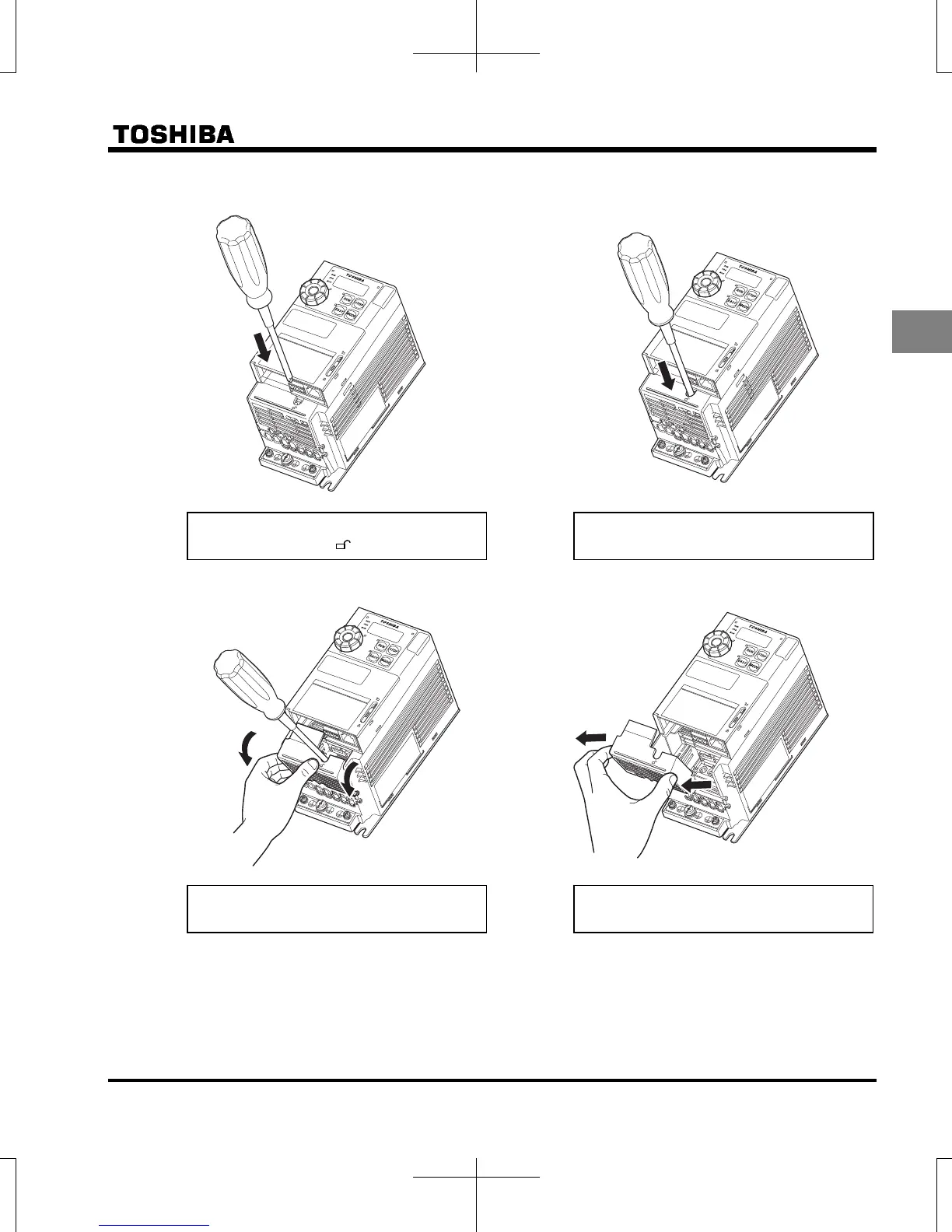

(1) Removing the outside terminal block cover (VFS15-2004PM-W1 to 2007PM-W1, VFS15S-2002PL-W1 to 2007PL-W1)
● After wiring is complete, be sure to restore the terminal cover to its original position.
1)
2)
3)
4)
Insert a screwdriver or other thin object into the
hole indicated with the
mark.
Press in on the screwdriver.
While pressing on the screwdriver, rotate the
terminal cover downward to remove it.
Pull the terminal cover up at an angle.
To Next Page
