Toshiba Tosvert VF-S15 User Manual

E6582175
F-83
6

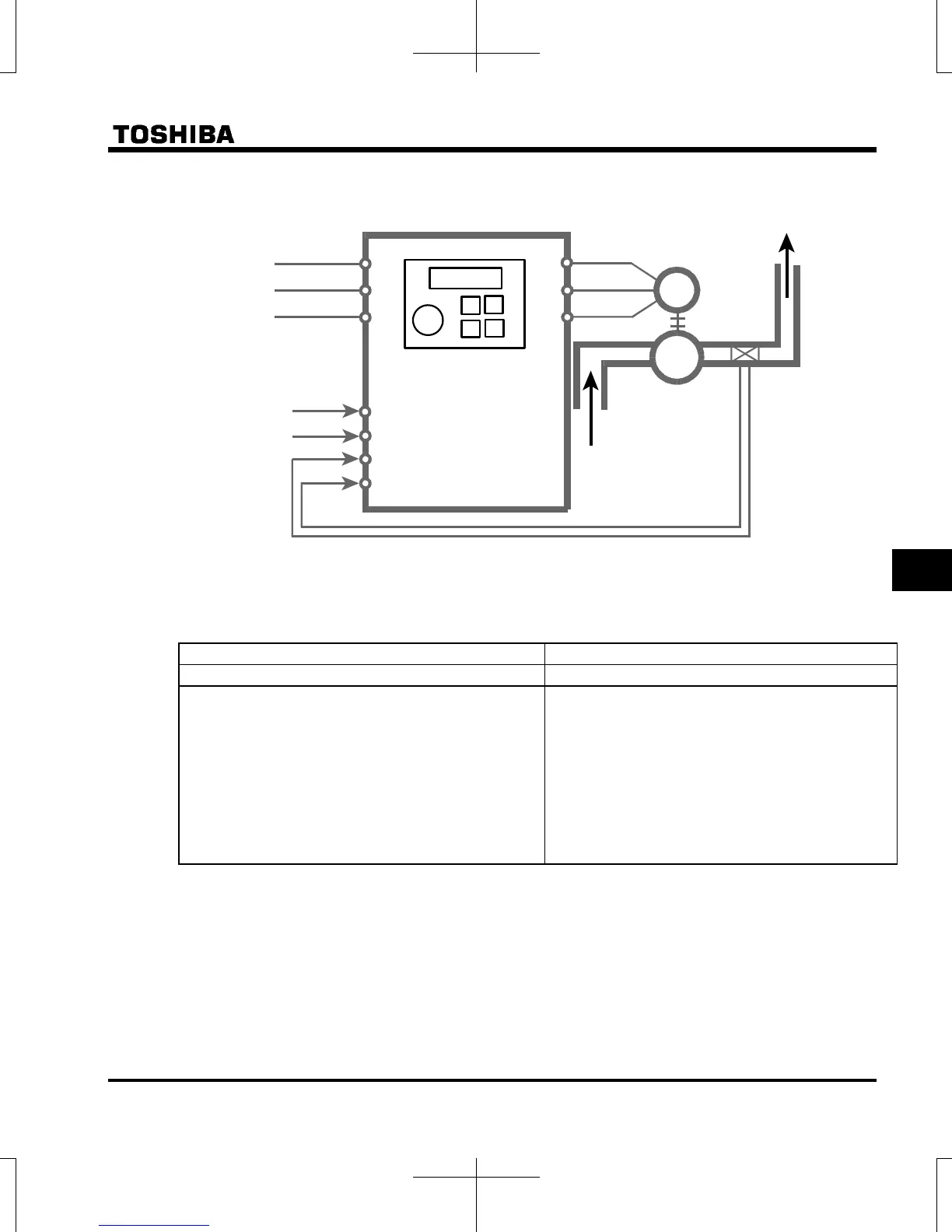

1) External connection
2) Selecting PID set value and feedback value
PID set value and feedback value can be combined as follows for the PID control.
(1) PID set value (2) Feedback value
PID set value signal selection f389 PID control feedback signal selection 
0: fmod/f207 selected
1: Terminal VIA
2: Terminal VIB
3: fpid
4: RS485 communication
5: UP/DOWN from external logic input
6: CANopen communication
7: Communication option
8: Terminal VIC
9, 10: -
11: Pulse train input
0: Disabled
1: Terminal VIA
2: Terminal VIB
3: Terminal VIC
4 to 6: -
Note 1: When setting f389, do not select the same signal used for feedback value.
Note 2: When f389=3 is set, the PID set value is set by the parameter fpid.
fpid can be set by the setting dial in the standard monitor mode.
Please inactivate the frequency setting by the setting dial (fc, Preset-speed frequency)
(Set fmod/f207 to other than 0 or 3, f660 to other than 4, f724 to 0.)
Note 3: Signal is put out when the feedback value matches to the PID set value.
Assign function number 144 or 145 to an output terminal.
PID set value agreement detection range (f167) can also be set.
M
P
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
VIA
CC
Pressure
transmitter
(1) PID set
value
DC: 0 to 10V
(2)Feedback signals DC : 4~20mA
CC
VIC

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
