Toshiba Tosvert VF-S15 User Manual

E6582175
F-96
6

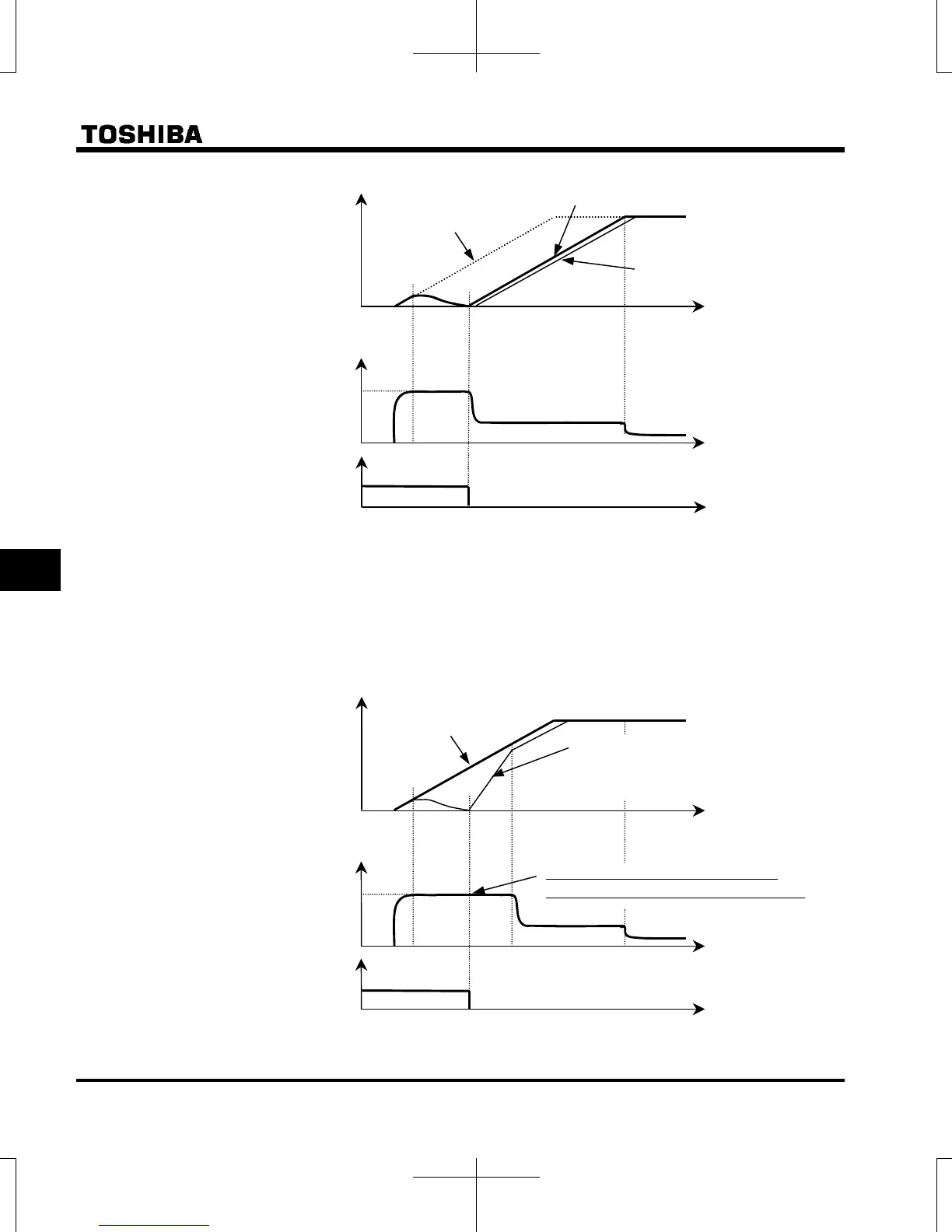

Frequency [Hz]
Time [s]
To r que [N·m ]
Time [s]
Torque limit level
A
ctual speed
If the torque limit function
is not activated
Operation frequency
Time [s]
Mechanical brake
ON
OFF
(released)
(2) f451=1(In sync with min. time)
The operation frequency keeps increasing, even if the torque limit function is activated.
In this control mode, the actual speed is kept in sync with the operation frequency, while torque is held at a limit
level in spite of torque decrease when releasing the mechanical brake. The use of this function prevents the load
from failing and improves the motor’s response during inching operation.
Frequency [Hz]
To r qu e [N·m ]
Torque limit level
Mechanical brake
Time [s]
A
ctual speed
(Acceleration rates vary depending
on the torque limit level.)
Operation frequency
Time [s]
Time [s]
ON
OFF
(released)
Torque is held at a limit level even
after the mechanical brake is released.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
