E6582175
F-101
6
Title Function Adjustment range Default setting
f500
Acceleration time 2 0.0-3600 (0.00-360.0) [sec] 10.0
f501
Deceleration time 2 0.0-3600 (0.00-360.0) [sec] 10.0
f504
Acceleration/deceleration selection
(1, 2 , 3) (Panel keypad)
1: Acceleration/deceleration 1
2: Acceleration/deceleration 2
3: Acceleration/deceleration 3
1
f510
Acceleration time 3 0.0-3600 (0.00-360.0) [sec] 10.0
f511
Deceleration time 3 0.0-3600 (0.00-360.0) [sec] 10.0
f519
Setting of acceleration/deceleration
time unit
0: -
1: 0.01s unit (after execution: 0)
2: 0.1s unit (after execution: 0)
0
● Default setting is 0.1s unit. Acceleration/deceleration time unit can be changed to 0.01s unit by f519=1
setting. (The value of f519 return to 0 after setting.)

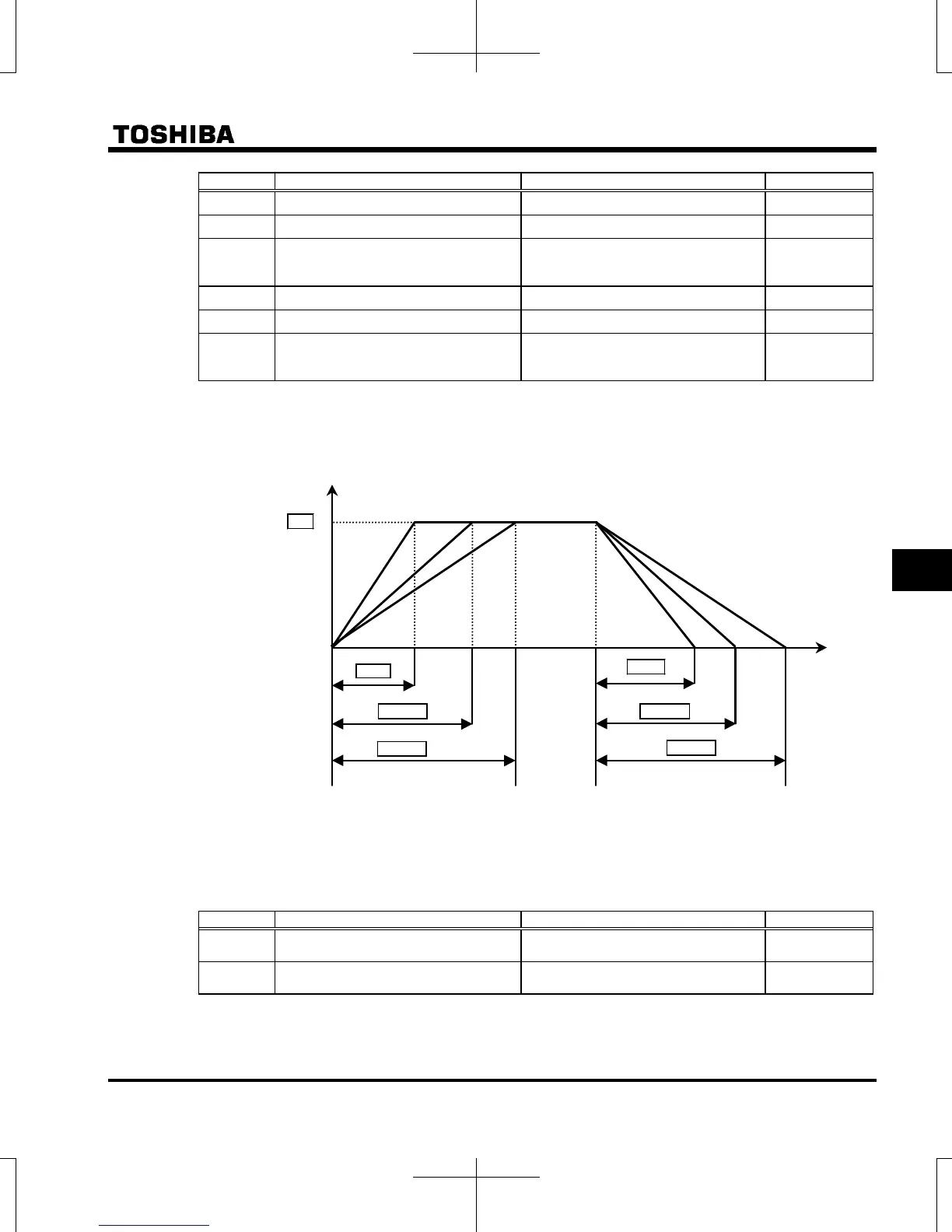

1) Selection using parameters
Time [s]
Output frequency [Hz]
0
＝
＝
＝
Acceleration/deceleration time 1 is initially set as the default. Acceleration/deceleration time 2 and 3 can
be selected by changing the setting of the f504.
Enabled if cmod= (panel input enabled)
2) Switching by frequencies (Switching the acceleration/deceleration time automatically at the setting
frequency)
Title Function Adjustment range Default setting
f505
Acceleration/deceleration 1 and 2
switching frequency
0.0 (disabled)
0.1-(Hz)
0.0
f513
Acceleration/deceleration 2 and 3
switching frequency
0.0 (disabled)
0.1-(Hz)
0.0
Note: Acceleration/deceleration patterns are changed from pattern 1 to pattern 2 and from pattern 2 to pattern 3
in increasing order of frequency, regardless of the order in which frequencies are changed. (For example,
if f505 is larger than f513, f513 pattern 1 is selected in the frequency range below the frequency
set with f505.)
