Toshiba Tosvert VF-S15 User Manual

E6582175
F-120
6
The override functions calculate output frequency by the following expression:
Frequency command value × (1+ )+Value [Hz] selected with
f660

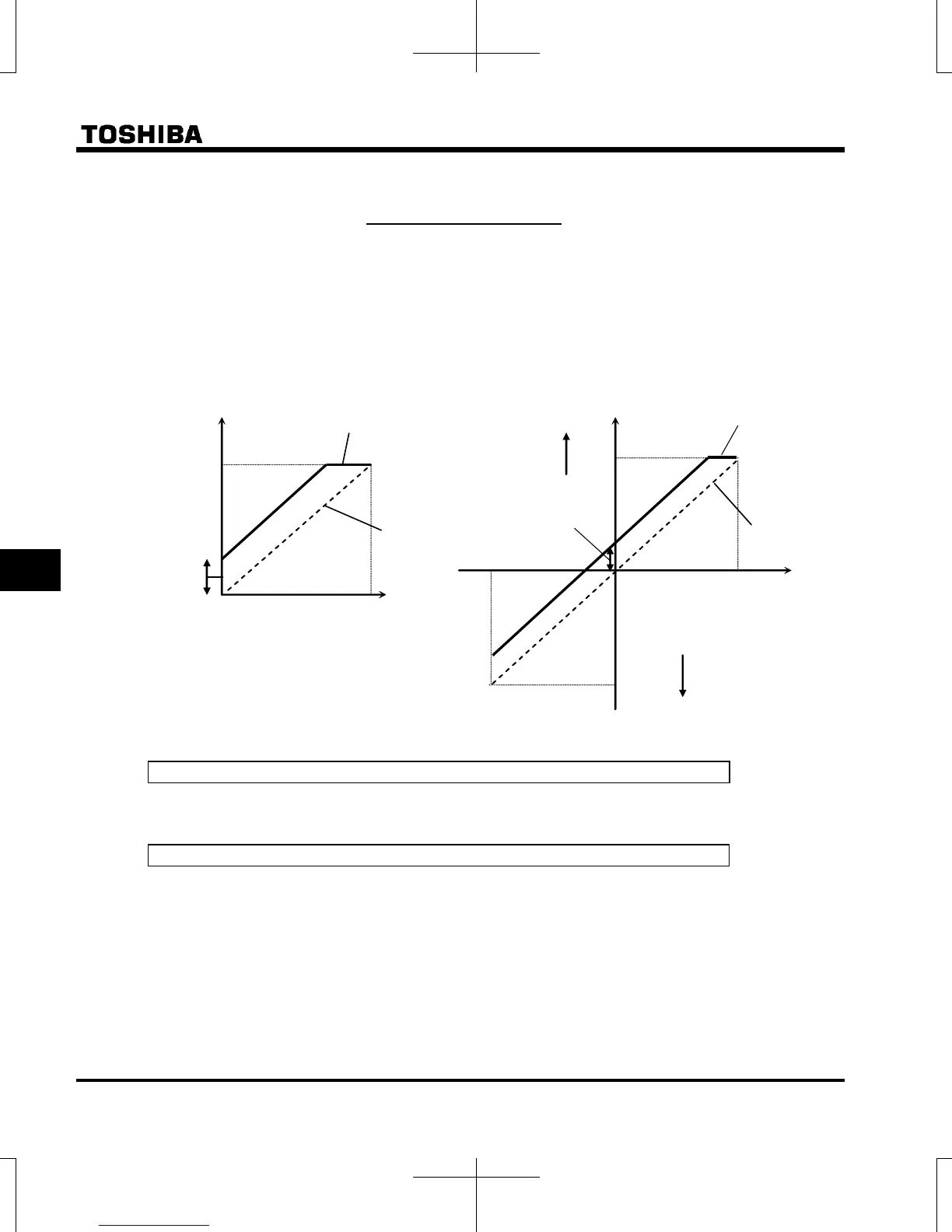

1) Additive override
In this mode, an externally input override frequency is added to operation frequency command.
[Ex.1: VIA (Reference frequency), VIC (Override input)] [Ex.2: VIB (Reference frequency), VIA (Override input)]
Ex.1:
f660=3 (VIC input), f661=0 (disabled)
Output frequency = Reference frequency + Override (VIC input [Hz])
Ex.2:
f660=1 (VIA input), f661=0 (disabled)
Output frequency = Reference frequency + Override (VIA input [Hz])
Value [%] selected with 
100
Output frequency
Over-ridden frequency
Override
(VI/II input)
0
10V
Over-ridden frequency

Override
(VIC input)
0
10V

VIA input
(Reference
frequency)
(
)
VIB input
(Reference
frequency)
(
)
Output frequency
Reverse run
Forward run

-10V

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
