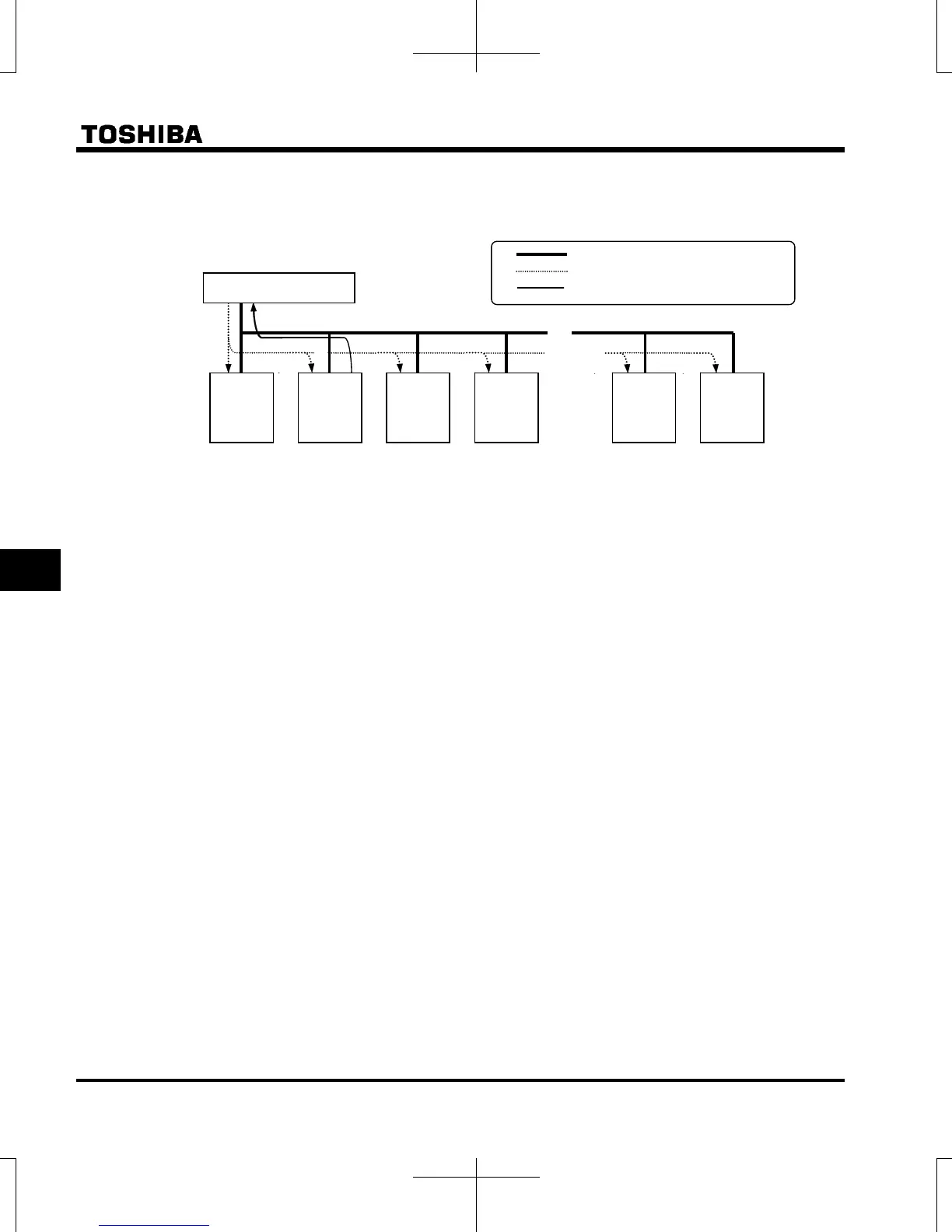

<Broadcast communication>
When sending an operation frequency command via a broadcast from the host computer
INV= inverter
● : Split the cable among terminal blocks.
(1) Send data from the host computer.
(2) The inverters receive data from the host computer and the inverter number is checked.
(3) When * is next to the position of an inverter number, it is judged a broadcast. The command is
decoded and processed.
(4) To prevent data conflicts, only inverters where * is overwritten to 0 can reply with data to the host
computer.
(5) As a result, all inverters are operating with the broadcast operation frequency command.
Note: Specify inverter numbers by group for group broadcasts.
(Function only for ASCII mode. For parity mode, see the Communications Function Instruction Manual.)
(Ex) When *1 is set, inverters 01, 11, 21, 31 to 91 can be broadcast to.
In this case, the inverter specified in 01 can reply.
: Wiring
: Data (Host  INV)
: Response data (INV  Host)
INV
No.29
INV
No.30
~ ~
INV
No.03
INV
No.02
INV
No.00
    
INV
No.01
Host computer

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
