Toshiba Tosvert VF-S15 User Manual

E6582175
A-20
1
SW1SW2
RES
S1 S2
VIA
PP
VIB CC VIC S3 FM
NO
CC
OUT
P24
F
RCC
+SU
STO
FLA FLB FLC RY RC
1.3.3(3)制御回路端子台J.eps

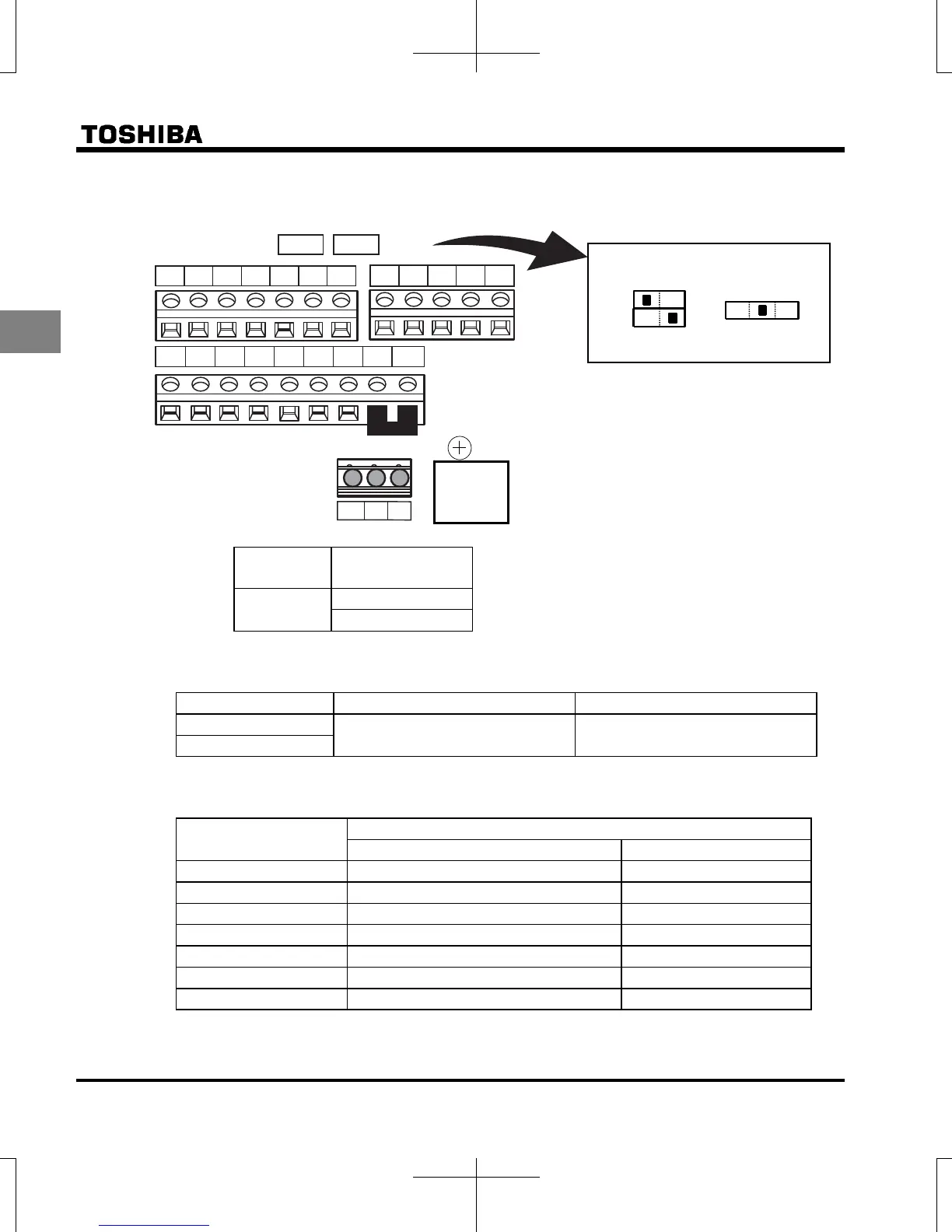

3) Control circuit terminal block
The control circuit terminal block is common to all equipment.
0
Wire size
Conductor 1 wire 2 wires of same size
Solid
0.3-1.5mm
2
(AWG 22-16) 0.3-0.75mm
2
(AWG 22-18)
Stranded
Recommended ferrule
Using ferrule to be improved efficiency and reliability of wiring is recommended.
Wire size
mm
2
(AWG)
Type
PHOENIX CONTACT Dinkle International.,Ltd
0.34 (22) AI 0.34-6TQ DN00306
0.5 (20) AI 0.5-6WH DN00506
0.75 (18) AI 0.75-6GY DN00706
1 (18) AI 1-6RD DN01006
1.5 (16) AI 1.5-8BK DN01508
2 X 0.5 (-) AI TWIN2 X 0.5-8WH DTE00508
2 X0.75 (-) AI TWIN2 X 0.75-8GY DTE00708
*1: Crimping pliers CRIMPFOX ZA3 (PHOENIX CONTACT)
CT1 (Dinkle International.,Ltd)
*2: These ferrules enable practical crimping of two wires in a ferrule.
RS485 connector
Stripping length: 6 (mm)
Screwdriver: Small-sized flat-blade screwdriver
(Blade thickness: 0.5 mm, blade width: 3.5 mm)
Screw size
Recommended
tightening torque
M3 screw
0.5 N
m
4.4 lbin
Refer to section 2.3.2 for details about all terminal functions.
*2
*2
SINK
SOURCE
SW1
PLC
VIB
SW2
PTC
S3
S4
Screw for removable control terminal block

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
