Toshiba Tosvert VF-S15 User Manual

E6582175
L-6
12
S
T
AT
U
S
R
UN
R
U
N
E
A
S
Y
STOP
P
RG
MO
N
%
H
z
M
O
D
E
5
220
12
7.5
76
150
88
170
150
10
VF-S15

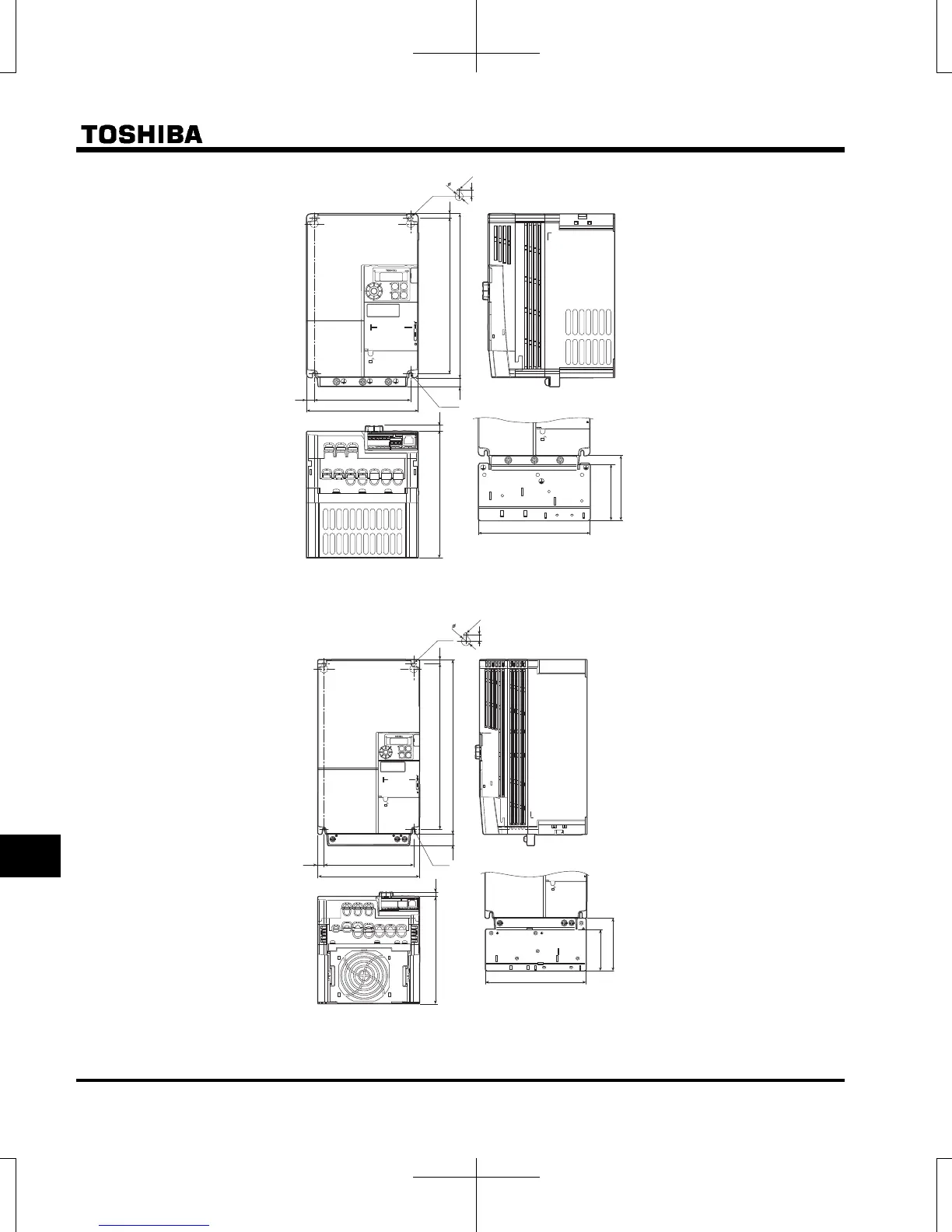

210 (Mounting dimension)
130(Mounting dimension)
EMC plate
(Option)
Note 2)
2-R2.5
8
R2.5
11
14
S
T
A
T
U
S
R
U
N
R
U
N
E
A
S
Y
S
T
O
P
P
R
G
M
O
N
%
H
z
M
O
D
E
7
310
20
7.5
74.5
178
94.5
190
180
VF-S15
10
295 (Mounting dimension)
160(Mounting dimension)
EMC plate
(Option)
Note 2)
9
R3
2-R3
Fig.D
Fig.E

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
