Toshiba Tosvert VF-S15 User Manual

E6582175
Q-7
17

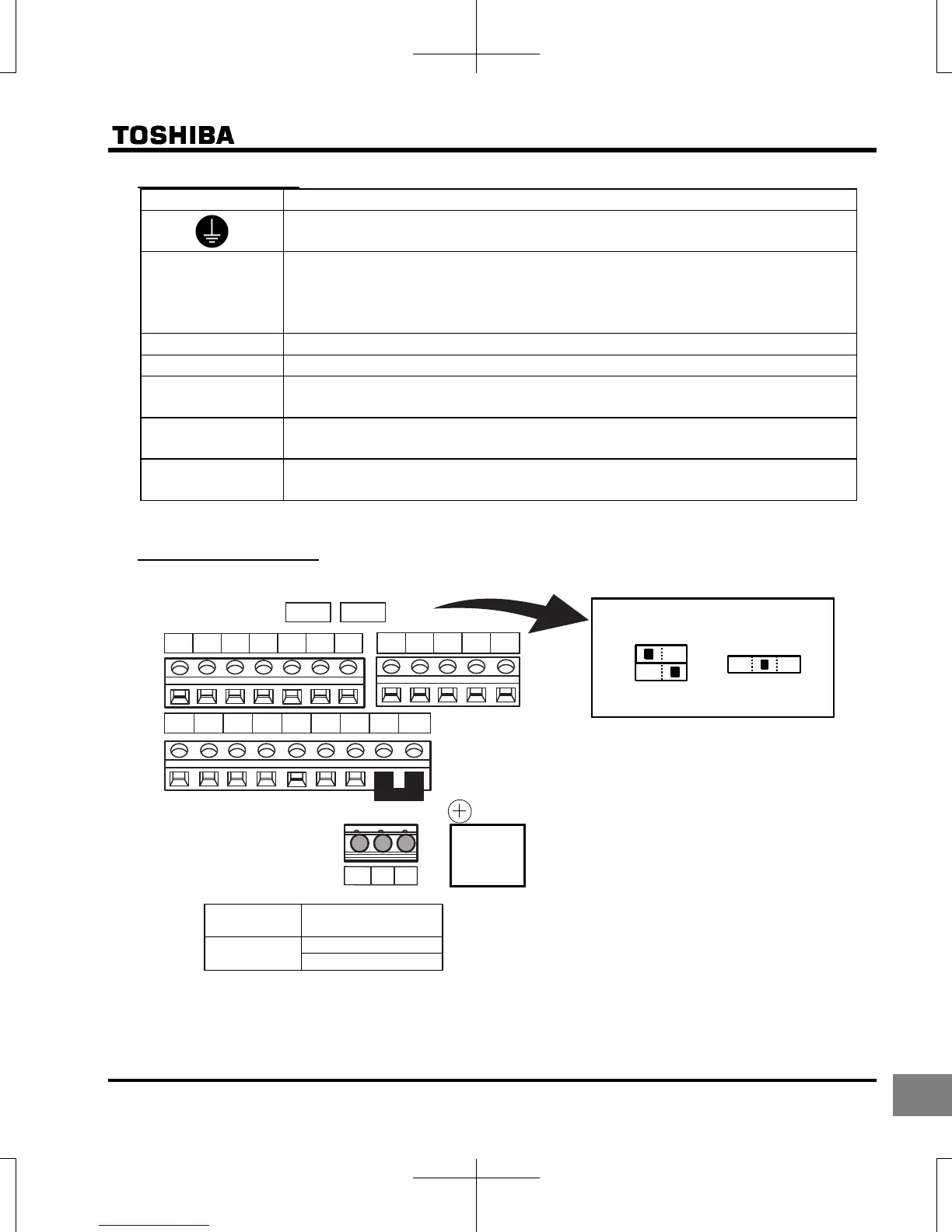

Main circuit terminals
Terminal symbol Terminal function
Grounding terminal for connecting inverter. There are 3 terminals in cooling fin
or mounting part of EMC plate.
R/L1,S/L2,T/L3
200/240 V class : Three-phase 200 to 240V-50/60Hz
: Single-phase 200 to 240V-50/60Hz
400/500 V class : Three-phase 380 to 500V-50/60Hz
* Single-phase inputs are R/L1 and S/L2/N terminals.
U/T1,V/T2,W/T3 Connect to three-phase motor.
PA/+, PB Connect to braking resistors.
PA/+
This is a positive potential terminal in the internal DC main circuit.
DC common power can be input between PA/- terminal and PC/- terminal.
PC/-
This is a negative potential terminal in the internal DC main circuit.
DC common power can be input between PC/- terminal and PA/+ terminal.
PO, PA/+
Terminals for connecting a DC reactor (DCL: optional external device). Shorted by a
shorting bar when shipped from the factory. Before installing DCL, remove the shorting bar.
The arrangements of power circuit terminals are different from each range.
Control circuit terminals
The control circuit terminal block is common to all equipment.
SW1SW2
RES
S1 S2
VIA
PP
VIB CC VIC S3 FM
NO
CC
OUT
P24
F
R CC
+SU
STO
FLA FLB FLC RY RC
1.3.3(3)制御回路端子台J.eps
SINK
SOURCE
SW1
PLC
VIB
SW2
PTC
S3
S4
Screw size
Recommended
tightening torque
M3 screw
0.5 Nm
4.4 lbin
RS485 connector
Stripping length: 6 (mm)
Screwdriver: Small-sized flat-blade screwdriver
(Blade thickness: 0.5 mm, blade width: 3.5 mm)
Screw for removable control terminal block

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
