Toshiba Tosvert VF-S15 User Manual

E6582175
Q-15
17

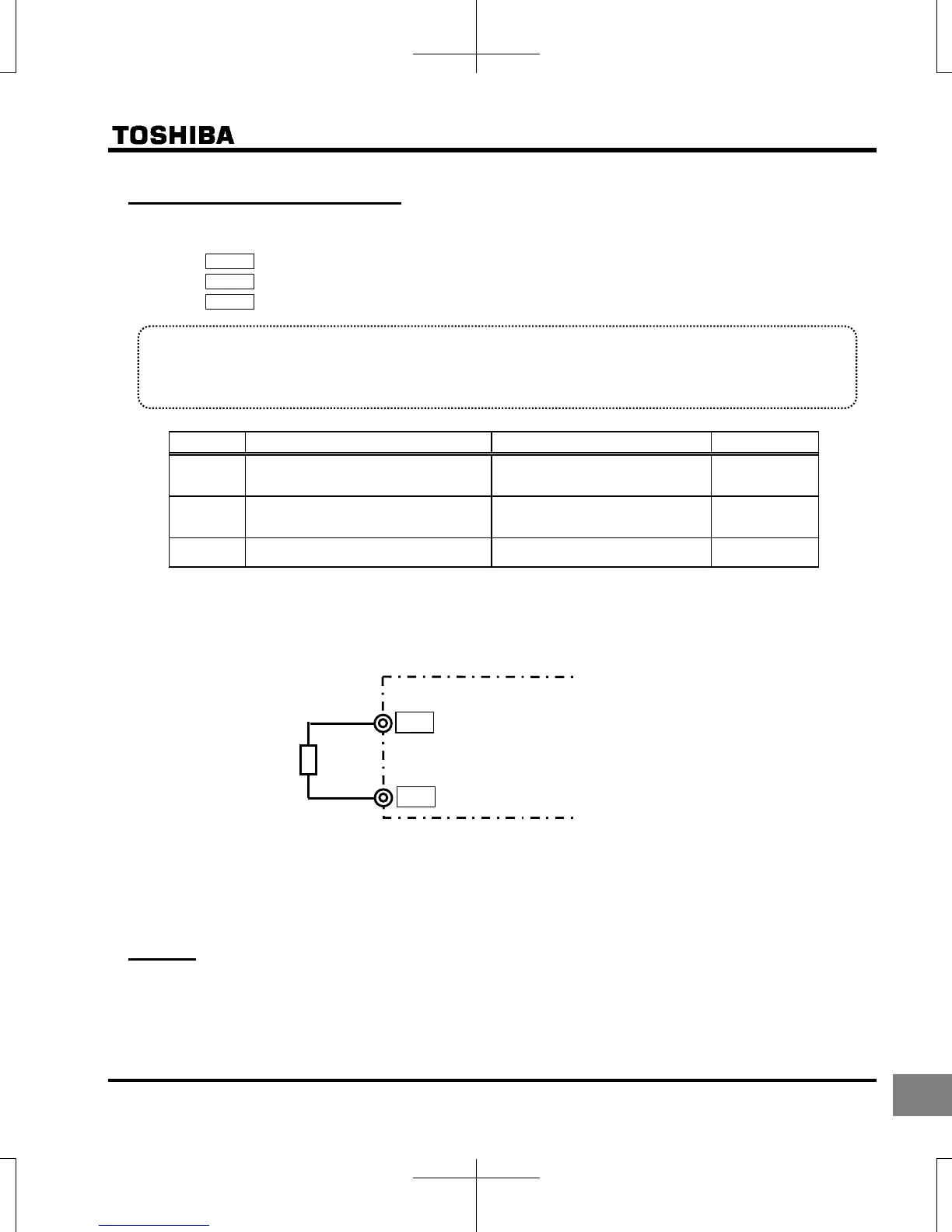

6. Motor PTC thermal protection
Set a parameter f147 and lower slide switch of SW2 to PTC side, when S3 terminal is used as PTC input terminal.
f147 : Logic input / PTC input selection (S3)
f645 : PTC thermal selection
f646 : Resistor value for PTC detection
• Function
This function is used to protect motor from overheating using the signal of PTC built-in motor.
The trip display is “e-32”.
[Parameter setting]
Title Function Adjustment range Default setting
f147

Logic input / PTC input selection (S3)
0: Logic input
1: PTC input
0
f645
PTC thermal selection
1: Tripping
2: Alarm only
1
f646
PTC detection resistor value 100-9999 (Ω) 3000
Note : Protecting PTC thermal, set f147=1 (PTC input) and slide switch SW2 to PTC side.
● Tripping level is defined by f646 setting. Alarm level is defined by 60% of f646 setting.
● Connect the PTC between S3 and CC terminals. Detection temperature can be set by f646 setting.
[Connection]
● Output of PTC input alarm signal
The PTC input alarm is assigned to the output terminal by setting the parameter of the output terminal selection
function to 150 or 151.
7. Other
Please contact where you purchase the inverter, your Toshiba sales representative, if you need the hard copy (paper) of
CD-ROM. Or please contact to phone number of back cover.
S3
PTC
CC

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
