Toshiba Tosvert VF-S15 User Manual

E6582175

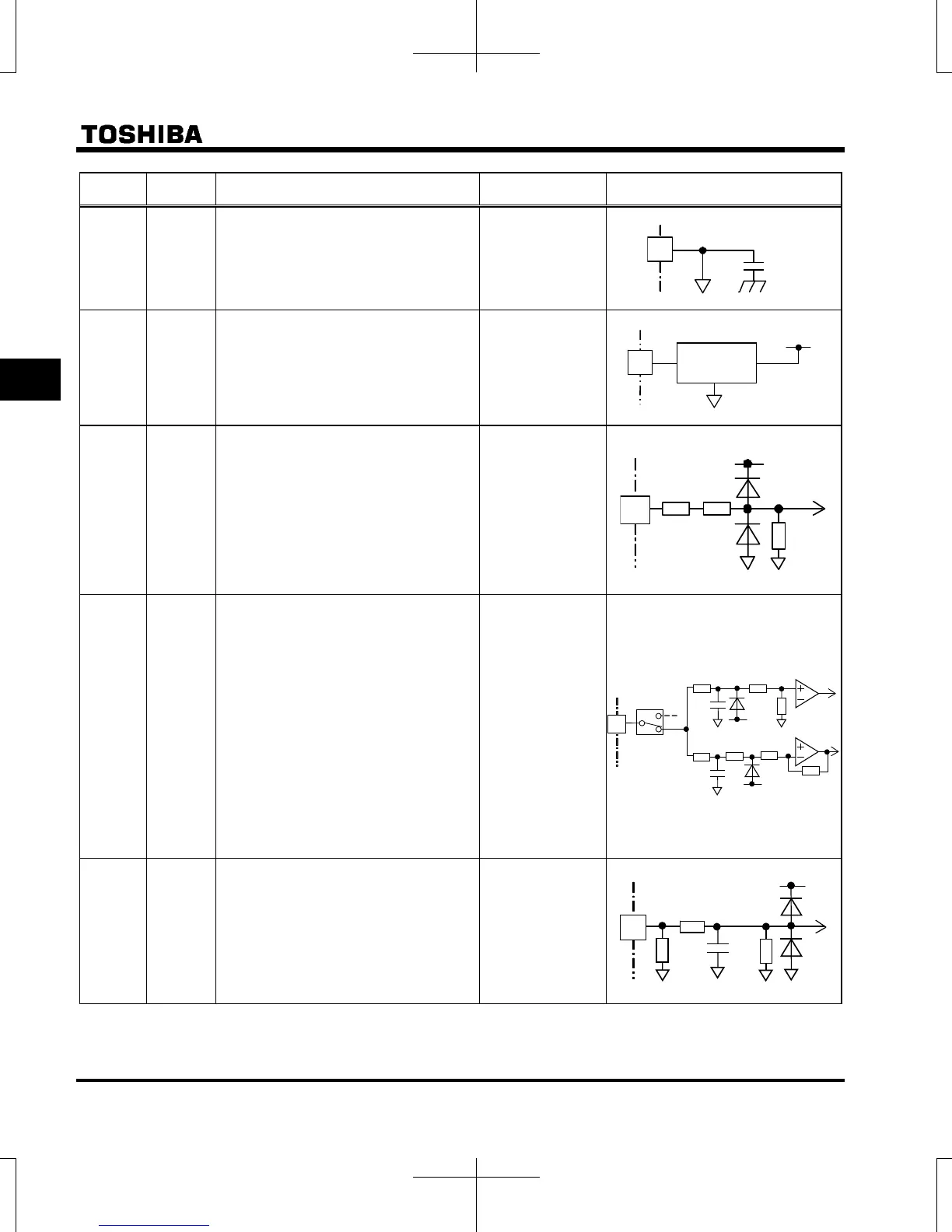

B-8
2
Terminal
symbol
Input /
output
Function
Electrical
specifications
Inverter internal circuits
CC
Common
to Input /
output
Control circuit's equipotential terminal
(3 terminals)
CC
PP Output Analog power supply output
10Vdc
(permissible load
current: 10mAdc)
+24V
Voltage
Regulator
PP
V I A
Note 1)
Input
Multifunction programmable analog input.
Default setting: 0-10Vdc (1/1000
resolution) and 0-60Hz (0-50Hz)
frequency input (1/2000 resolution).
By changing parameter f109, this
terminal can also be used as a
multifunction programmable logic input
terminal.
10Vdc
(internal impedance:
30k)
+5V
15k
15k
VIA
1k
V I B
Note 1)
Input
Multifunction programmable analog input.
Default setting: 0-10Vdc (1/1000
resolution) and 0-60Hz (0-50Hz)
frequency input.
The function can be changed to -10-+10V
input by parameter  =1 setting.
By switching slide switch SW2 and
changing parameter f109 setting, this
terminal can also be used as a
multifunction programmable logic input
terminal.
10Vdc
(internal impedance:
30k)
33k
30k
SW2
VIB
VIB
–5V
3k
33k
30k
–5V
3k
30k
V I C Input
Multifunction programmable analog input.
4-20mA (0-20mA) input.
4-20mA
(internal
impedance: 250)
3k
VIC
250
+5V
100k

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
