Toshiba Tosvert VF-S15 User Manual

E6582175
C-10
3
Operation Command: External Signal
Frequency Command: Setting Dial

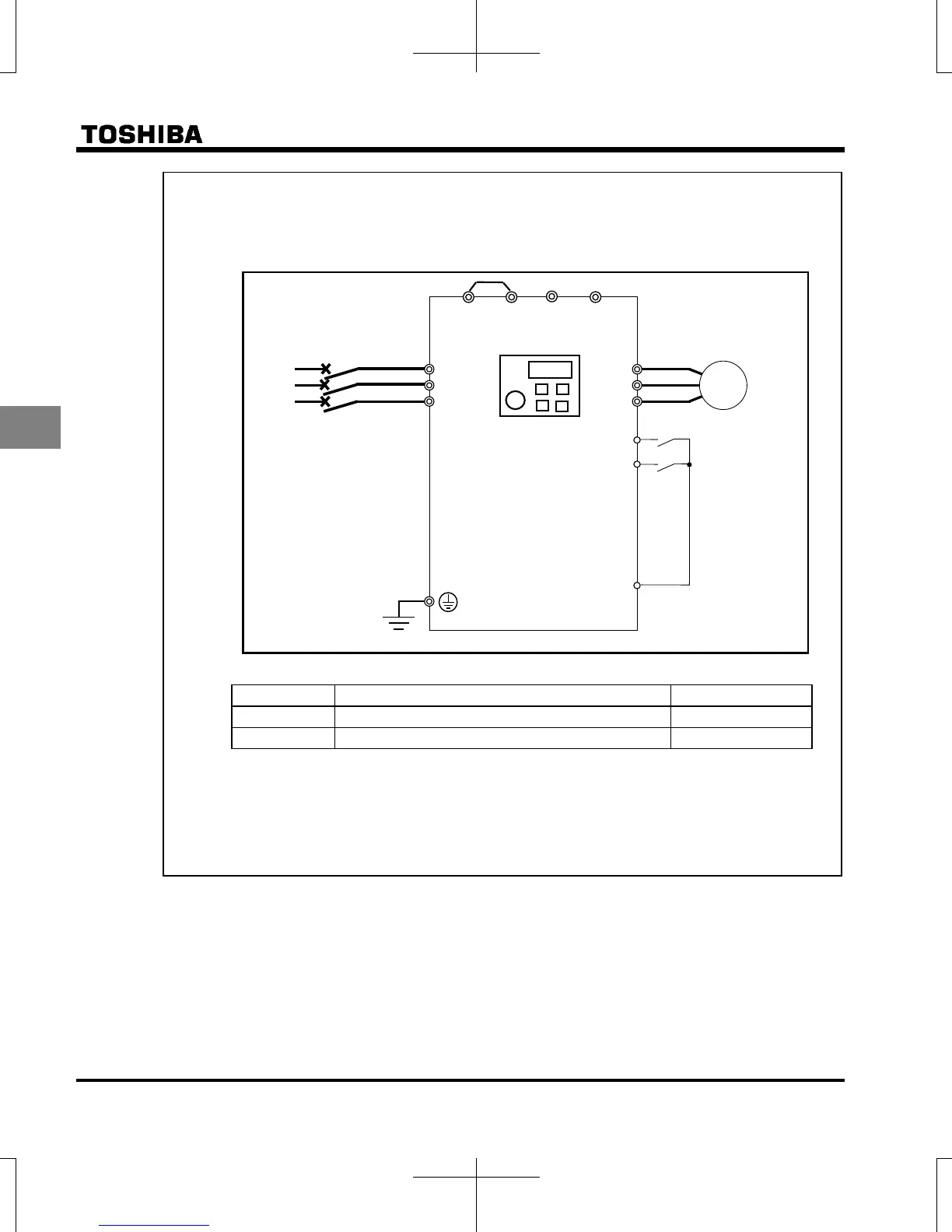

(1) Wiring
(2) Parameter setting
Title Function Setting value

Command mode selection
0

Frequency setting mode selection 1 0 or 3
(3) Operation
Run/stop: ON/OFF input to F-CC, R-CC. (with sink logic)
F is for forward run signal and R is for reverse run signal (default setting)
Frequency setting: Turn the setting dial to set the frequency.
*1: Single-phase models are R/L1 and S/L2/N.
Ex.3
Motor
M
F
R/L1
S/L2
T/L3
U/T1
V/T2
W/T3
Forward signal
R
CC
Reverse signal
Common
MCCB
Operation panel
PB
PA/ +
P
O
PC/-
*
1

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
