Toshiba Tosvert VF-S15 User Manual

E6582175
D-2
4
Status monitor mode The mode for monitoring all inverter status.
Allows monitoring of frequency command value, output current/voltage and
terminal information.
 Refer to chapter 8.

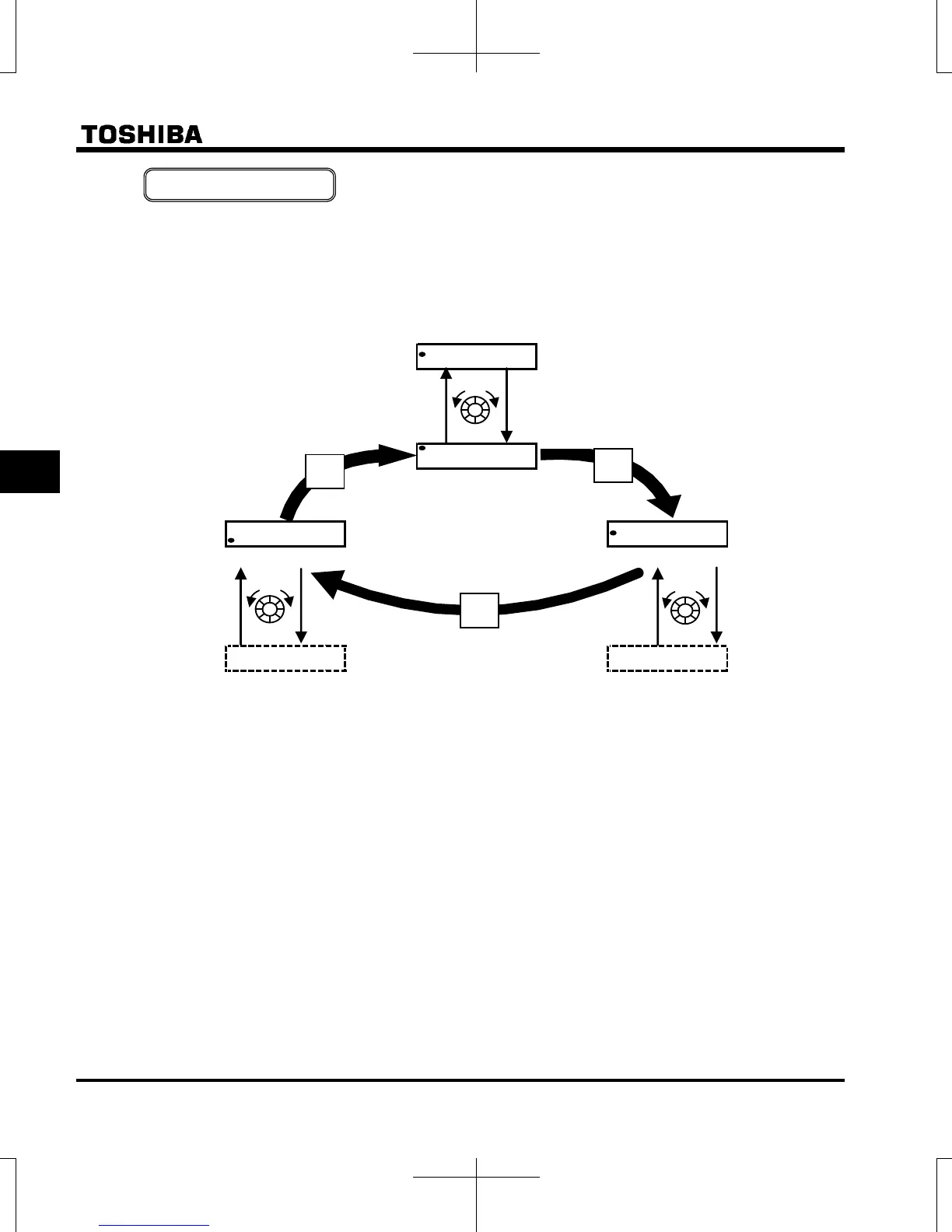

The inverter can be moved through each of the modes by pressing the MODE key.


 
 
y
Setting monitor modeStatus monitor mode
Standard monitor mode
（
At power source on
）
MODE
MODE
MODE
RUN
MON
PRG
PRG
Frequency setting method
 Refer to section 3.2.2
How to search and set
parameters
 Refer to section 4.2
Monitoring of
operation status
 Refer to section 8.2

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
