Chapter 2 Configure Touch P5 as a Router
48

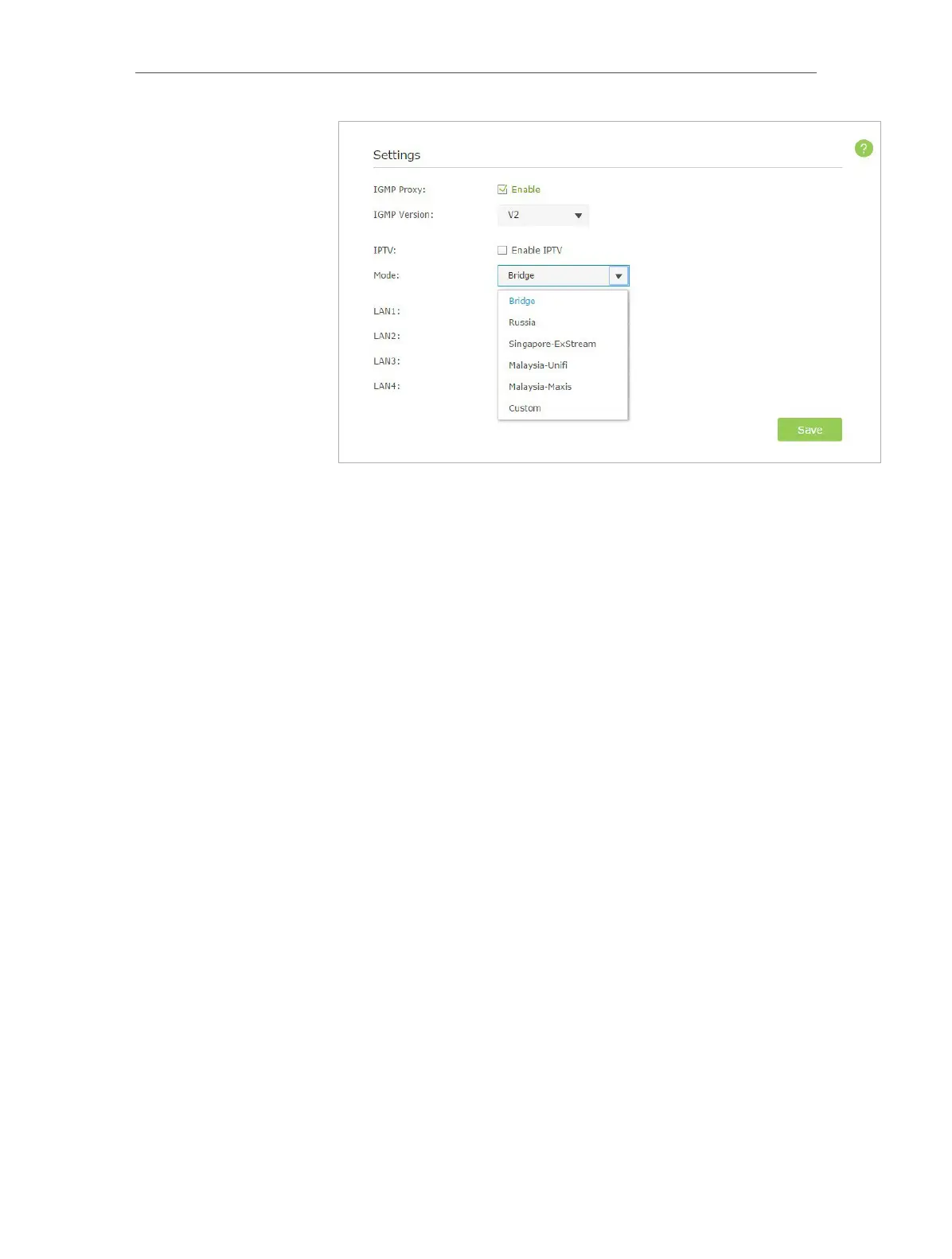

3 ) After you have selected a mode, the necessary parameters
are predetermined. You can perform other configuration, e.g.
entering the IPTV Multicast VLAN ID and selecting the IPTV
Multicast VLAN Priority in Russia mode according to your ISP.
4 ) For Russia, Singapore-ExStream, Malaysia-Unifi and Malaysia-
Maxis mode, connect the set-top box to the predetermined
LAN port. For Bridge and Custom mode, select the LAN type
and connect the set-top box to the corresponding port.
5 ) Click Save.
Your IPTV setup is done now! You may need to configure your
set-top box before enjoying your TV.
2. 23. NAT Forwarding
Touch P5’s NAT (Network Address Translation) feature makes devices in the LAN use
the same public IP address to communicate in the Internet, which protects the local
network by hiding IP addresses of the devices. However, it also brings about the
problem that an external host cannot initiatively communicate with a specified device
in the local network.
With the forwarding feature, your Touch P5 can penetrate the isolation of NAT and
allow external hosts in the Internet to initiatively communicate with devices in the local
network, thus realizing some special functions.
Touch P5 includes four forwarding rules. If two or more rules are set, the priority of
implementation from high to low is Virtual Servers, Port Triggering, UPNP and DMZ.
This section contains the following sections:
