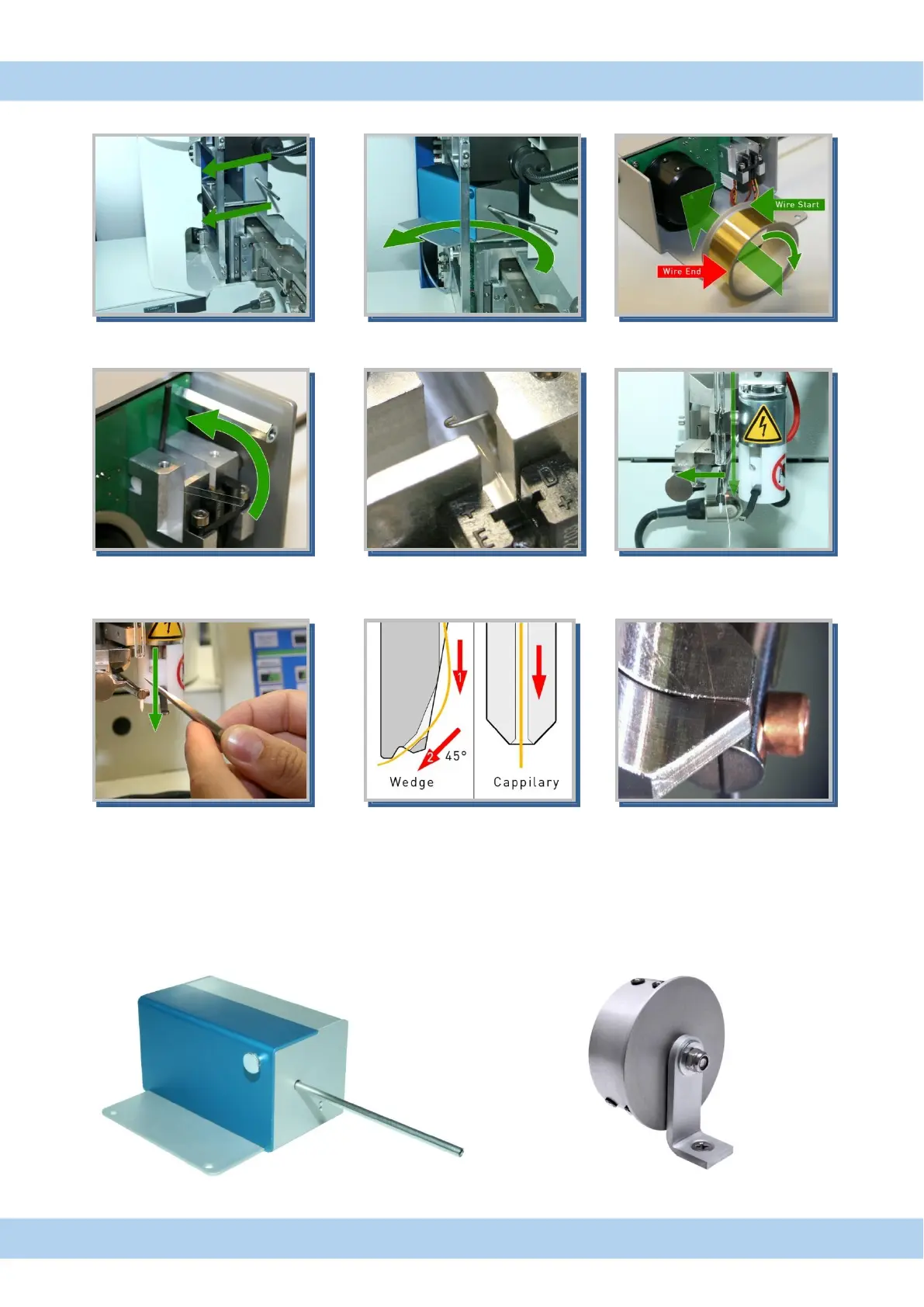

10. Loading Wire to Motorized Wire Spool
Open left cover loosen set screws and slide wire spool at holder
remove Wire spool watch out for right spool orientation
Lift up sensor bar to thread wire use hook from toolbox move clamp aside and
to pull wire through tube pull wire through glass tube
Use booth hands to tread wire move clamp back
through bond tool. make sure wire is in clamp
Explanation Video on Youtube:
"How to thread wire in wedge tool" https://youtu.be/-Ez8a4g_K-E
H71 motorized Wire Spool maximum Wire diameter is 50µ / Ribbon until 100 x 20µ
H72 manual wire Spool maximum Wire diameter is 100µ / Ribbon until 250 x 25µ
H71 H72
