TPT Wirebonder www.tpt.de Page 49 of 53 September 2016

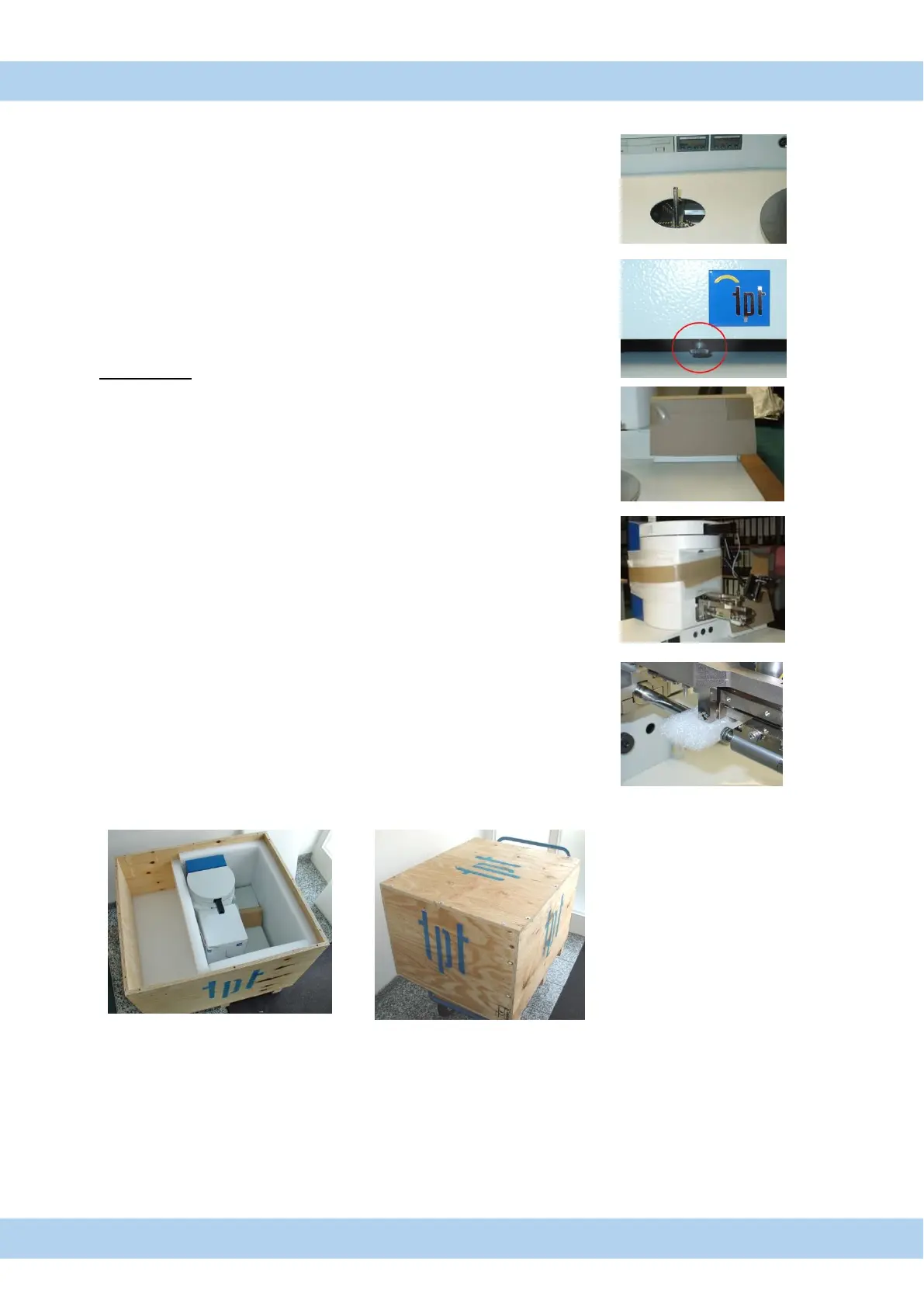

44. Packing Instructions
1. Remove from Bonder:
A. Bondtool ( wedge, Capillary )
B. Bond Wire
C. Glass wire Guide
D. Dual Fiber Optic Illuminator
E. Microscope with Holder
F. Laser Spot light targeting system
G. Heater Stage
H. Remove Control - Puck
I. and any other options from Bonder.
2. Secure the work plate by inserting the Table Lock Screw.
Tighten softly the screw to secure the work plate.
3. Secure Display with Carton
4. Secure Tower-Cover with soft foam
5. Secure between Transducer and clamp with foam
6. Carefully move Bonder in wooden box
Pack accessories (i.e., work stage, microscope, illuminator,
eyepieces, etc.)
Position these items at suitable locations around the sides
Of the bonder so that they are secure from movement and
so the to foam cover can be installed.
Place the foam cover around and over Bonder .
7. Position and bolt the wooden cover on to the crate.
6 7
