35. Bonding Sequence
1. Start Position
Operator positions target under
spotlight. Clamp is closed
2. Operator holds down Control
Puck Start button
Bond Head travels down to
1
st
.search height
Operator repositions target if
necessary.
3. Operator releases Control Puck
Start button
Bond tool descends to 1
st
. Bond
TDSW activate all Bond
Parameters
4. clamp opens and tool rise to loop
height
5. Operator positions 2
nd
target
under spotlight
and/or Y-Table moves to
programmed position
10. Tool moves to programmed
Work height position
9. Tool moves to programmed Tail
y-way (clamp closed) position
8. Tool moves to programmed Tail
y-way (clamp open) position
7.Tool rise to programmed Tail up
(clamp open) position
6.Operator holds down Control Puck
Start button. Bond Head travels down
to 2
nd
.search height. Operator
repositions target if necessary..
Operator releases Control Puck Start
button. Bond tool descends to 2
nd
Bond .TDSW activate all Bond
Parameters

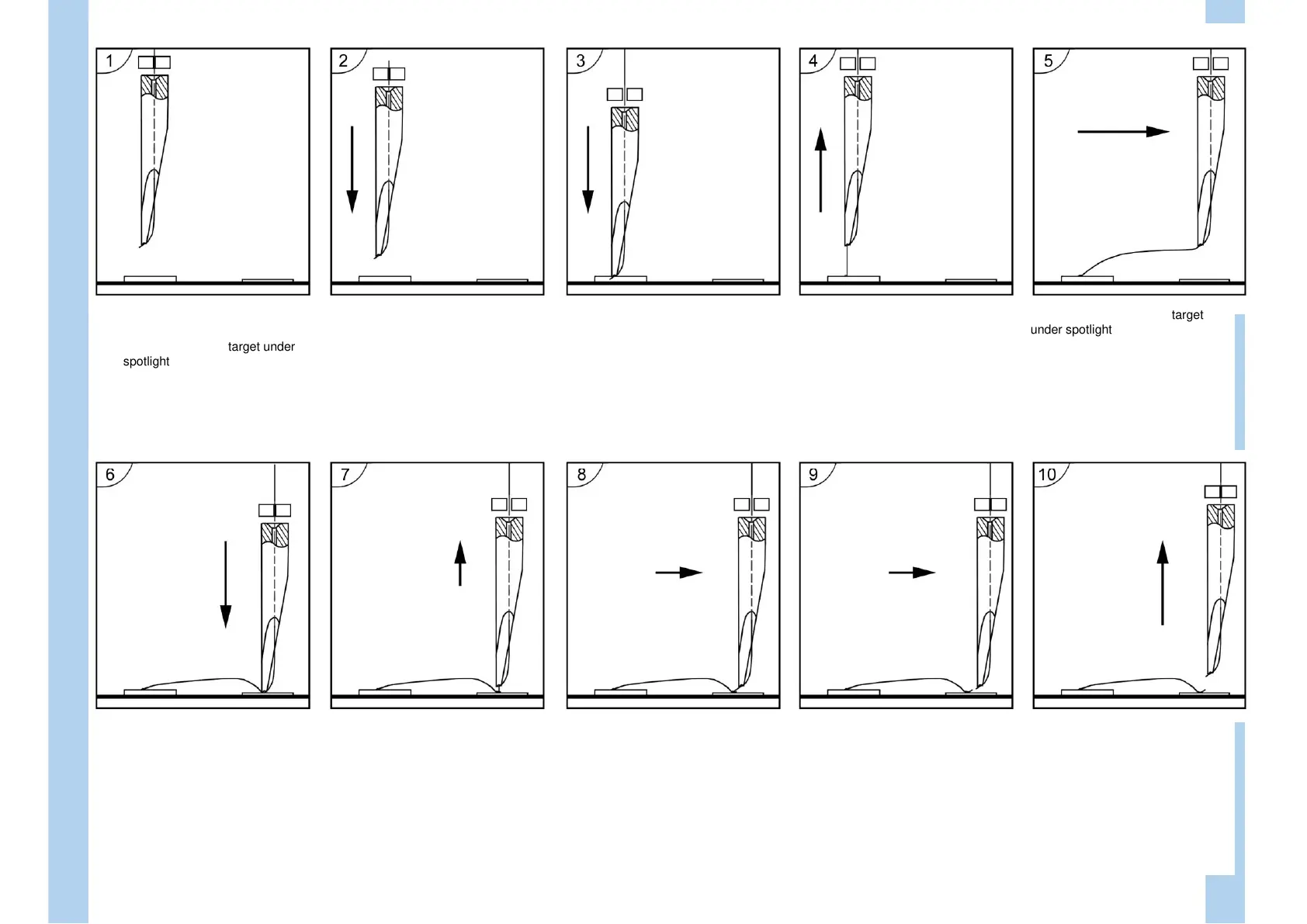

Wedge Bonding Sequence
Figure 13
