1. Start Position
Operator positions target under
spotlight. Clamp is closed
2. Operator holds down Control
Puck Start button , Clamp opens
Bond Head travels down to
1
st
.search height
Operator repositions target if
necessary.
3. Operator releases Control Puck
Start button
Bond tool descends to 1
st
. Bond
TDSW activate all Bond
Parameters
4. after Bond tool rise to loop height
8. Tool moves to programmed Work
height (clamp closed) position
7. Tool rise to programmed Tail up
(clamp open) position
6. Operator holds down Control Puck Start
button
Bond Head travels down to 2
nd
.search
height
Operator repositions target if necessary.
Operator releases Control Puck Start
button
Bond tool descends to 2
nd
Bond
TDSW activate all Bond Parameters
9. EFO Wand moves under Tail (Wire
end) and forms Ball

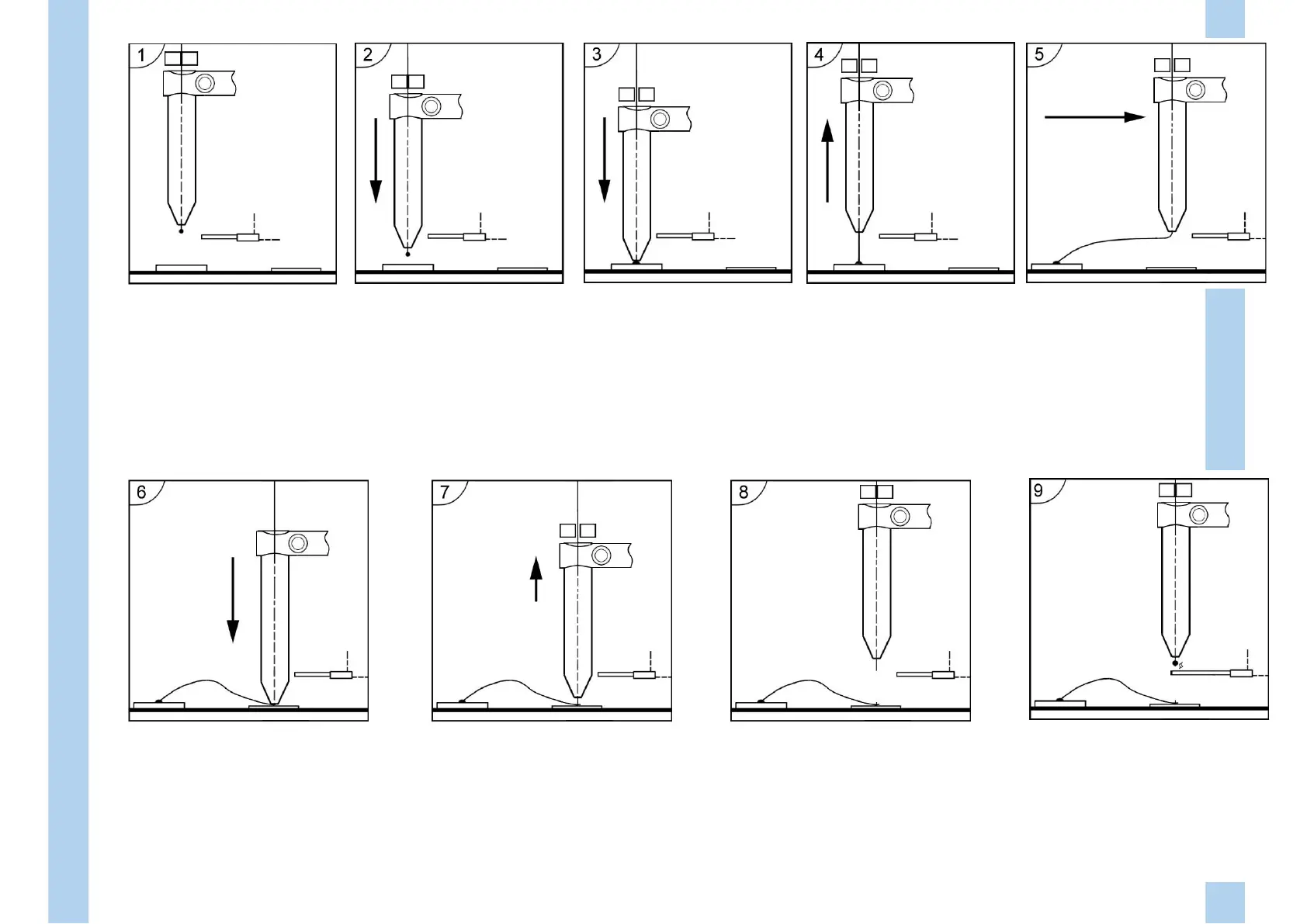

Ball Bonding Sequence
Figure 14
