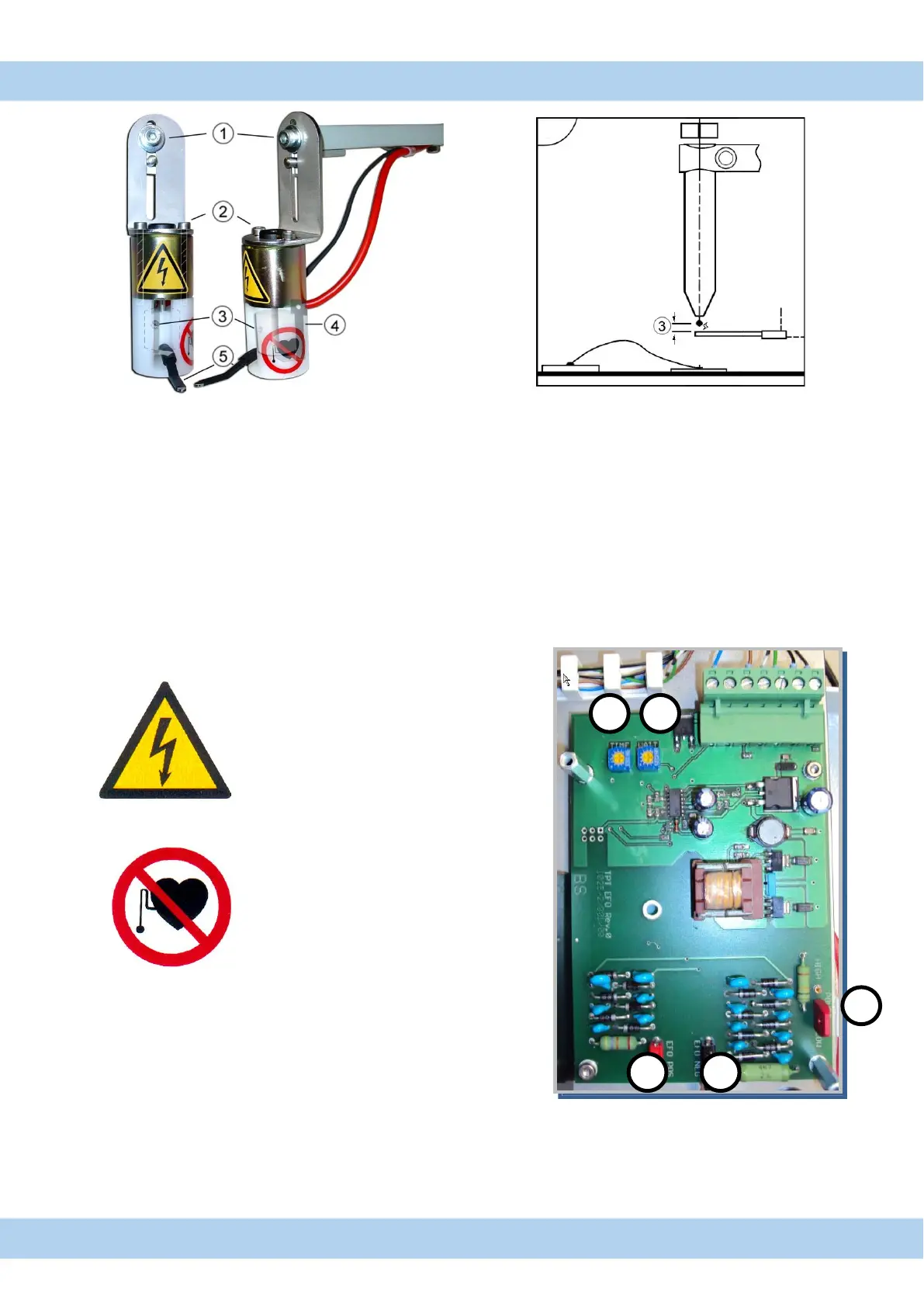

21. EFO System (only Ball Bonding HB08/10/14/16)
For Automatic adjustment press Setup Button in Menu Axis Setup
(only at Ball Bond Mode, see also page 30 )
1. EFO Wand height adjustment gap between wire and EFO Wand
2. EFO Wand side adjustment should be 100µ to 300µ
3. set screw for white small cylinder in the inside
4. plate spring for EFO power
5. EFO lever
DANGER: Do not touch EFO Wand , 2000V discharge
1. Positve EFO
use for 25µ wire 60% power
2. Negative EFO
use for 25µ wire 100% power
3. Jumper for High and Low Voltage
4. Wait
set a delay for EFO spark
5. Time
set the msec for EFO Power
