TPT Wirebonder www.tpt.de Page 27 of 53 September 2016

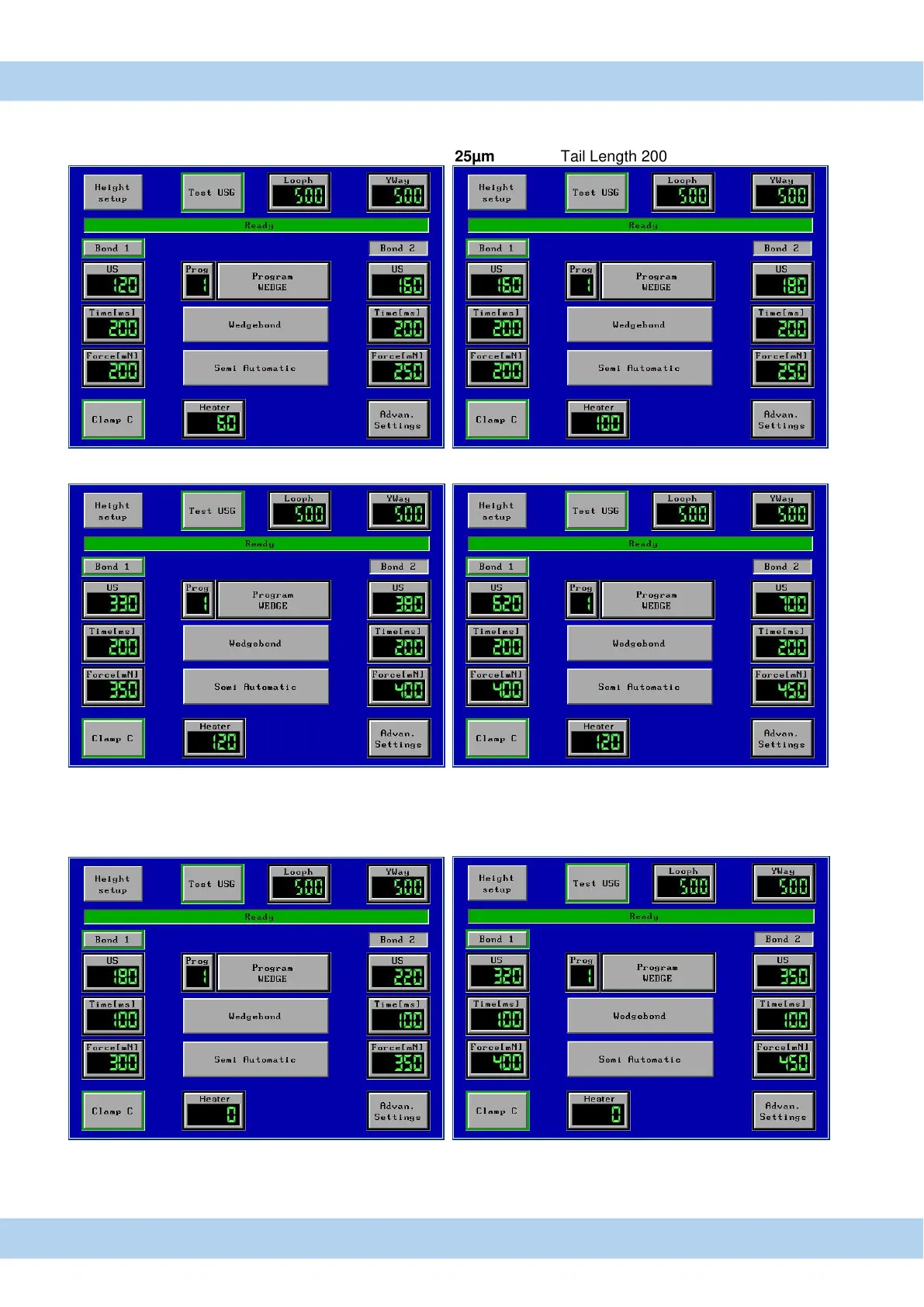

25. Bonding Parameter
Wedge-Wedge Gold Wire
17µm Tail Length 170 25µm Tail Length 200
33µm Tail Length 230 50µm Tail Length 260
Aluminum Wire
25µm Tail Length 200 33µm Tail Length 230
